STARTING MOTOR

VS1400GLF 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)

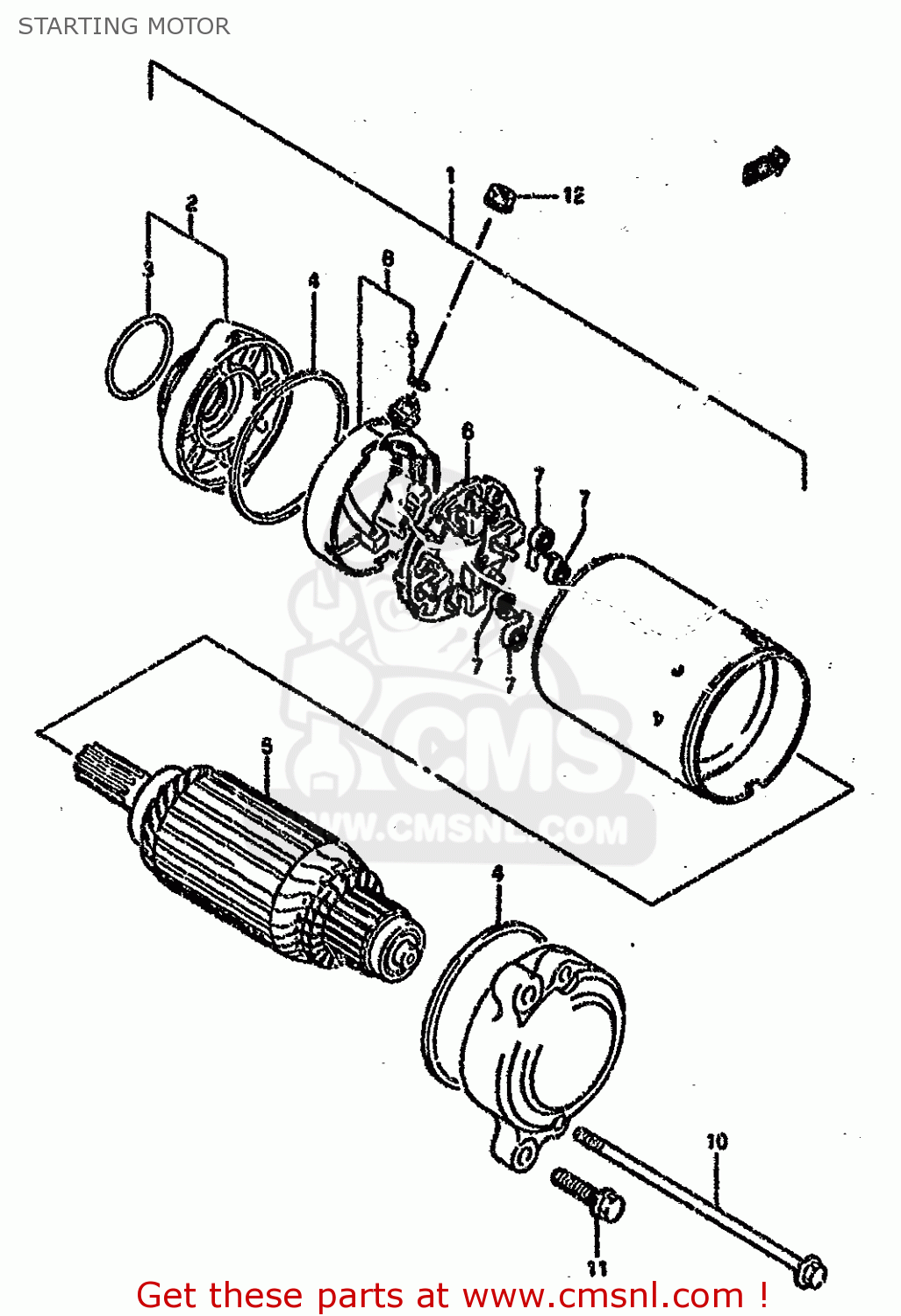

Starting motor diagram VS1400GLF 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)

prices are in EUR

ref

part #

description

quantity

3110038B01
ref: 1

MOTOR ASSEMBLY,STARTING

€ 973.50

3115038B00
ref: 2

BRACKET SET

€ 114.50

3115638B00
ref: 3

O-RING

€ 9.50

3126431300
ref: 4

O RING

€ 7.50

3131038B01
ref: 5

ARMATURE

€ 278.50

3113238B00
ref: 6

HOLDER SET,BRUSH

€ 45.00

3113538B00
ref: 7

SPRING,BRUSH

€ 3.50

3113038B00
ref: 8

TERMINAL SET,BRUSH

€ 45.00

3114349040
ref: 9

O RING

€ 3.00

3128124B10
ref: 10
31281-38B00

BOLT

€ 5.00

0154706257
ref: 11

BOLT

€ 2.50

0836135066
ref: 12

NUT

€ 2.00
