HEADLAMP (MODEL S)

VS1400GLF 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)

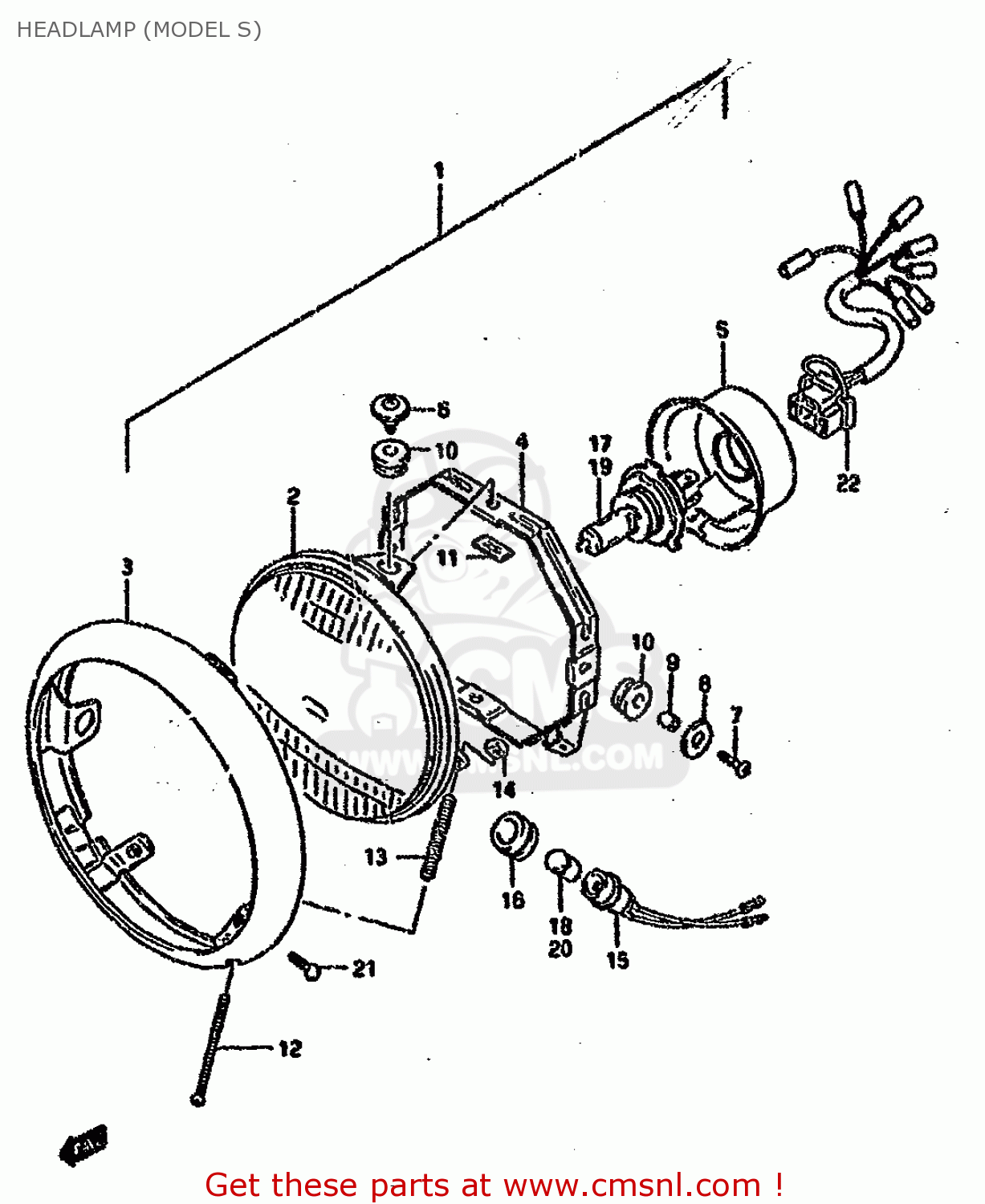

Headlamp (model s) diagram VS1400GLF 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)

HEADLAMP (MODEL S) VS1400GLF 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)
HEADLAMP (MODEL S) VS1400GLF 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)
HEADLAMP (MODEL S) VS1400GLF 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)
prices are in EUR
ref
part #
description
quantity
1-1
3510038A00
ref: 1-1
HEADLAMP ASSY
3510038A00
€ 215.50
1-2
3510038A51999
ref: 1-2
E4,E22,E34,E37
HEADLAMP ASSY
€ 216.50
1-3
3510038A30999
ref: 1-3
E24
HEADLAMP ASSY
3510038A30999
€ 236.00
2-1
3512138A00
ref: 2-1
LAMP UNIT
€ 126.50
2-2
3512138A41
ref: 2-2
E4,E22,E34,E37
UNIT
3512138A41
€ 126.50
2-3
3512138A30
ref: 2-3
E24
UNIT,LAMP
3512138A30
€ 106.00
3
3511138A00
ref: 3
RIM
3511138A00
€ 27.00
4
3513038A00
ref: 4
RING,MOUNTING
3513038A00
€ 15.00
5
3517338A00
ref: 5
COVER,SOCKET
3517338A00
€ 12.50
6
3513638A00
ref: 6
SCREW,MOUNTING
3513638A00
€ 2.50
7
0211205167
ref: 7
SCREW
0211205167
€ 2.50
8
0916005003
ref: 8
WASHER (5.5X18X1)
€ 2.00
9
3513345230
ref: 9
SPACER
3513345230
€ 2.00
10
3513945230
ref: 10
CUSHION
3513945230
€ 1.50
11
3515548510
ref: 11
NUT
3515548510
€ 2.00
12
3515138A00
ref: 12
SCREW,ADJUSTING(4X50)
3515138A00
€ 2.50
13
3515431300
ref: 13
SPRING
3515431300
€ 2.00
14
3513545600
ref: 14
NUT
3513545600
€ 3.00
15
3611849320
ref: 15
SOCKET
3611849320
€ 12.00
16
3611622630
ref: 16
JOINT,RUBBER
3611622630
€ 5.00
17
0947112060
ref: 17
BULB(12V60/55W,H4)
0947112060
€ 8.00
18
0947112001
ref: 18
BULB(12V3.4W,STANLEY,A72A)
0947112001
€ 1.50
19
0947112060
ref: 19
E4,E22,E34,E37
BULB(12V60/55W,H4)
0947112060
€ 8.00
20
0947112063
ref: 20
E4,E22,E34,E37
BULB(12V4W)
0947112063
€ 6.00
21
0212205167
ref: 21
SCREW
0212205167
€ 2.00
22
3685338B10
ref: 22
WIRE,HEADLAMP LEAD
3685338B10
€ 20.50
22-1
3685338B10
ref: 22-1
WIRE,HEADLAMP LEAD
3685338B10
€ 20.50
22-2
3685338B00
ref: 22-2
E1
WIRE
€ 20.50
23
3595015500
ref: 23
E39
REFLEX REFLECTOR ASSY,FR SIDE
3595015500
€ 13.50
24
0831000053
ref: 24
E39, MODEL J E1
NUT
€ 2.50
25
0832201053
ref: 25
E39, MODEL J E1
WASHER
0832201053
€ 2.50
26
3595438B20
ref: 26
E39
SPACER, RH
€ 0.00
27
3595538B20
ref: 27
E39
SPACER, LH
€ 0.00
28
3595038B00
ref: 28
MODEL J E1
REFLEX REFLECTOR ASSY,FR SIDE
€ 23.50
29
3595438B00
ref: 29
MODEL J E1
SPACER,FR SIDE RR
3595438B00
€ 3.50
