AIR CLEANER (FRONT)(MODEL S)

VS1400GLF 1991 (M) (E01 E04 E17 E21 E22 E34 E39)

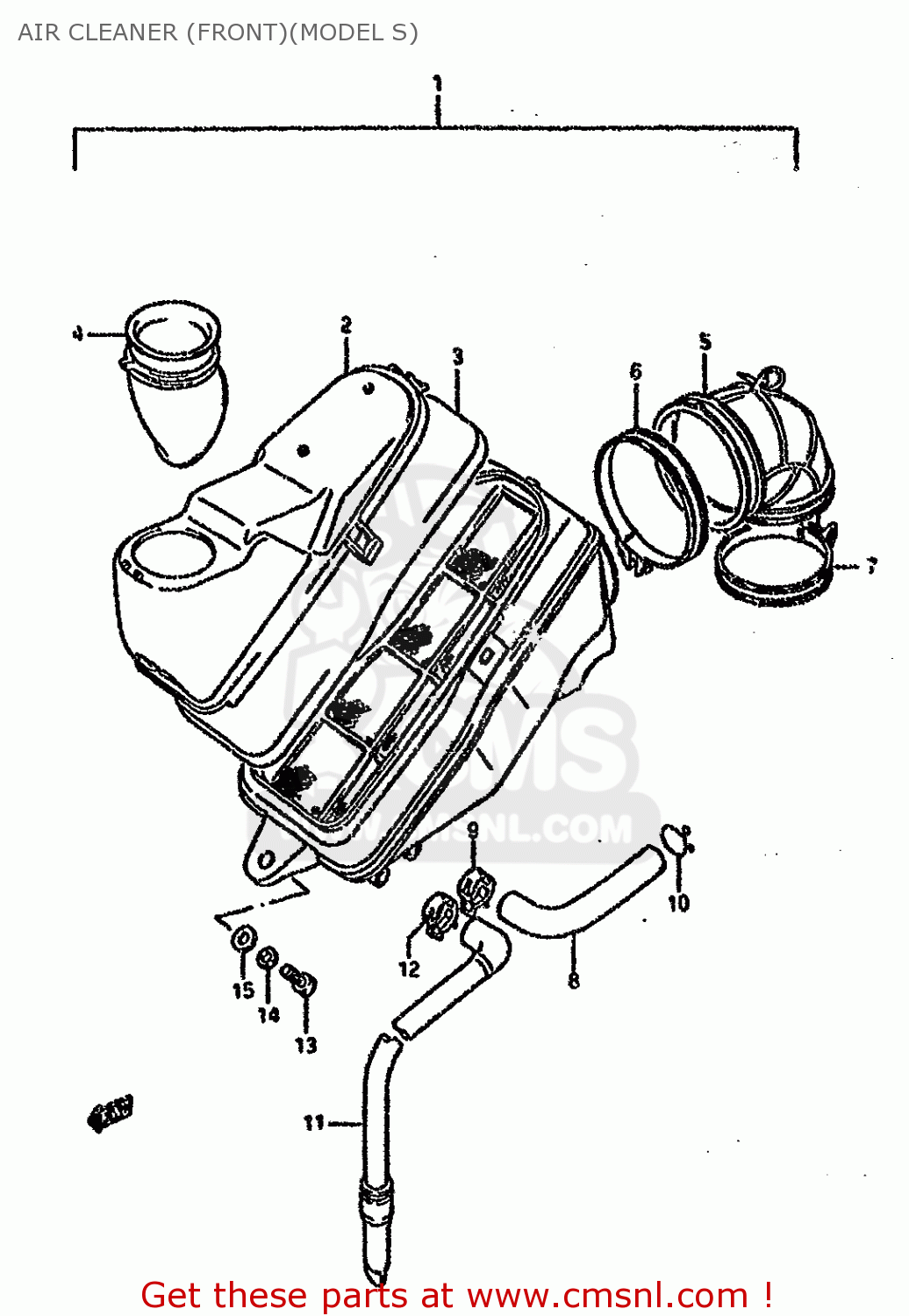

Air cleaner (front)(model s) diagram VS1400GLF 1991 (M) (E01 E04 E17 E21 E22 E34 E39)

AIR CLEANER (FRONT)(MODEL S) VS1400GLF 1991 (M) (E01 E04 E17 E21 E22 E34 E39)
AIR CLEANER (FRONT)(MODEL S) VS1400GLF 1991 (M) (E01 E04 E17 E21 E22 E34 E39)
AIR CLEANER (FRONT)(MODEL S) VS1400GLF 1991 (M) (E01 E04 E17 E21 E22 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
1370038B20
ref: 1
CLEANER ASSY,AIR FR
€ 201.50
2
1374038B01
ref: 2
CAP,AIR CLEANER FR
1374038B01
€ 27.00
3
1378138B10
ref: 3
FILTER,AIR FR
1378138B10
€ 11.00
4
1389138B00
ref: 4
TUBE,INLET
1389138B00
€ 16.50
5
1388138B00
ref: 5
TUBE,AIR CLEANER OUTLET
1388138B00
€ 25.50
6-1
0940272202
ref: 6-1
CLAMP
€ 7.50
6-2
0940272207
ref: 6-2
E34
CLAMP
0940272207
€ 7.50
7
0940258208
ref: 7
CLAMP
0940258208
€ 5.50
8
1385438B00
ref: 8
TUBE,BREATHER
1385438B00
€ 16.50
9
1382638B00
ref: 9
CLAMP
€ 1.50
10
0940114301
ref: 10
CLIP
0940114301
€ 2.00
11
1387038B00
ref: 11
DRAIN TUBE
€ 23.50
12
0940113413
ref: 12
CLIP
€ 2.50
13
0150006207
ref: 13
BOLT
0150006207
€ 2.00
14
0832101067
ref: 14
WASHER,LOCK
0832101067
€ 2.50
15
0916006019
ref: 15
WASHER(6.5X16X1.2)
0916006019
€ 1.50
12
0940113413
ref: 12
-13827-38800
CLIP
€ 2.50
13
0150006207
ref: 13
BOLT
0150006207
€ 2.00
14
0832101067
ref: 14
WASHER,LOCK
0832101067
€ 2.50
15
0916006019
ref: 15
WASHER(6.5X16X1.2)
0916006019
€ 1.50
