Buy Suzuki VS Parts Online


CLUTCH CYLINDER (VS1400GLFH/GLFJ/GLFL/GLFM/GLFN/GLFP)

VS1400GLF 1991 (M) (E01 E04 E17 E21 E22 E34 E39)

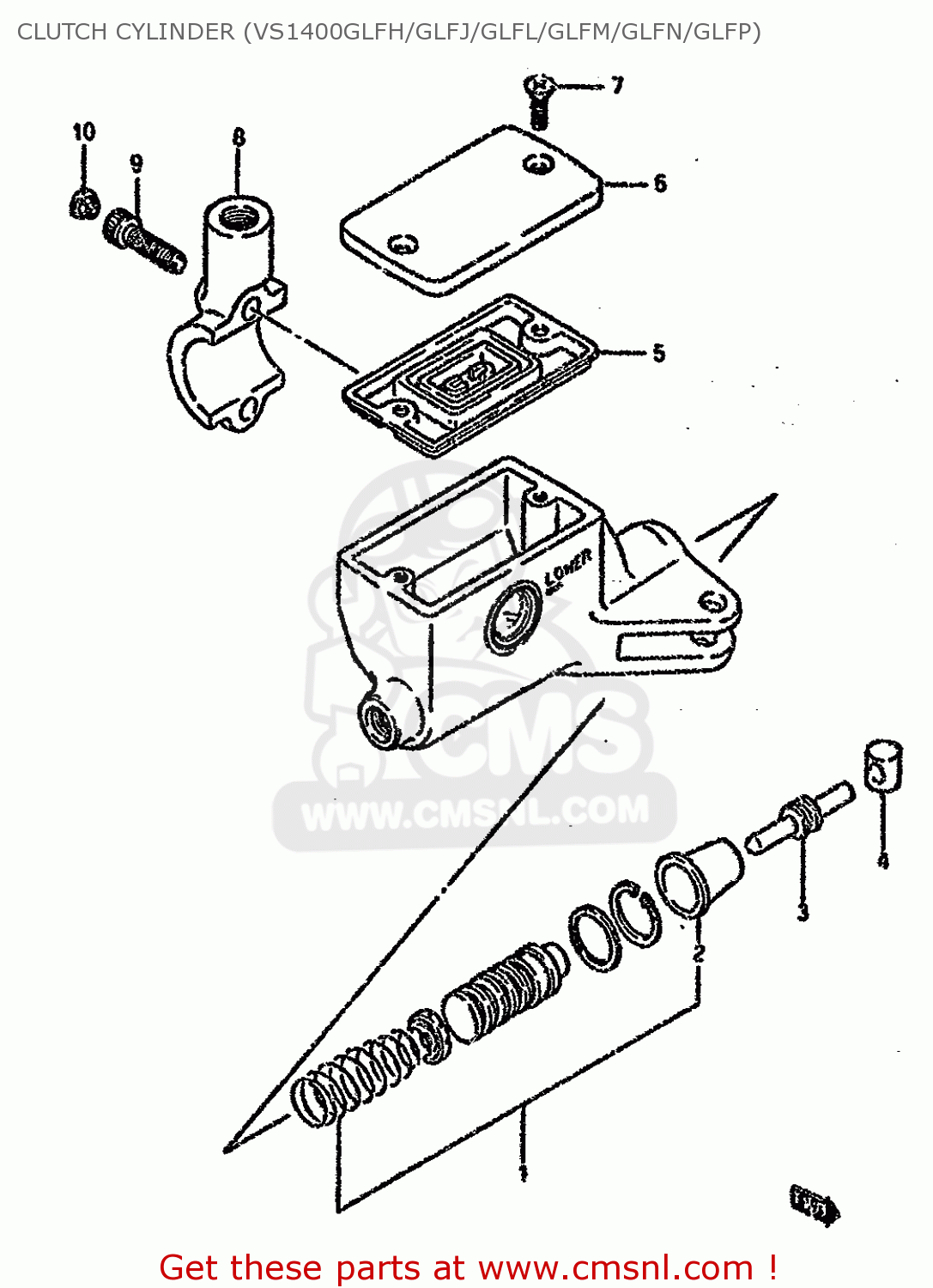

Clutch cylinder (vs1400glfh/glfj/glfl/glfm/glfn/glfp) diagram VS1400GLF 1991 (M) (E01 E04 E17 E21 E22 E34 E39)

CLUTCH CYLINDER (VS1400GLFH/GLFJ/GLFL/GLFM/GLFN/GLFP) VS1400GLF 1991 (M) (E01 E04 E17 E21 E22 E34 E39)
CLUTCH CYLINDER (VS1400GLFH/GLFJ/GLFL/GLFM/GLFN/GLFP) VS1400GLF 1991 (M) (E01 E04 E17 E21 E22 E34 E39)
CLUTCH CYLINDER (VS1400GLFH/GLFJ/GLFL/GLFM/GLFN/GLFP) VS1400GLF 1991 (M) (E01 E04 E17 E21 E22 E34 E39)
prices are in EUR
ref
part #
description
quantity
0
5980038B00
ref: 0
VS1400GLFH/GLFJ
CYLINDER ASSEMBLY,CLUTCH MASTER
€ 365.50
0
5980038B20
ref: 0
VS1400GLFL/GLFM/GLFN
CYLINDER ASSEMBLY,CLUTCH MASTER
5980038B20
€ 365.50
1
5980008810
ref: 1
PISTON & CUP SET
5980008810
€ 36.50
2
5966644300
ref: 2
BOOT
5966644300
€ 6.00
3
5987138A00
ref: 3
PUSH ROD
5987138A00
€ 6.50
4
5989208A00
ref: 4
BUSH
5989208A00
€ 5.50
5
5966749460
ref: 5
5966749460
6-1
5966938B00
ref: 6-1
VS1400GLFH/GLFJ
CAP
5966938B00
€ 67.50
6-2
5966938B10
ref: 6-2
VS1400GLFL/GLFM/GLFN
CAP
5966938B10
€ 67.50
7
5969138A00
ref: 7
SCREW,RESERVOIR CAP
5969138A00
€ 2.00
8
5967138A00
ref: 8
HOLDER
5967138A00
€ 37.50
9
0711006208
ref: 9
BOLT ,6X20
0711006208
€ 3.50
10
0925005008
ref: 10
CAP(OD:10)
0925005008
€ 5.00
