CARBURETOR (REAR)7MODEL S)

VS1400GLF 1991 (M) (E01 E04 E17 E21 E22 E34 E39)

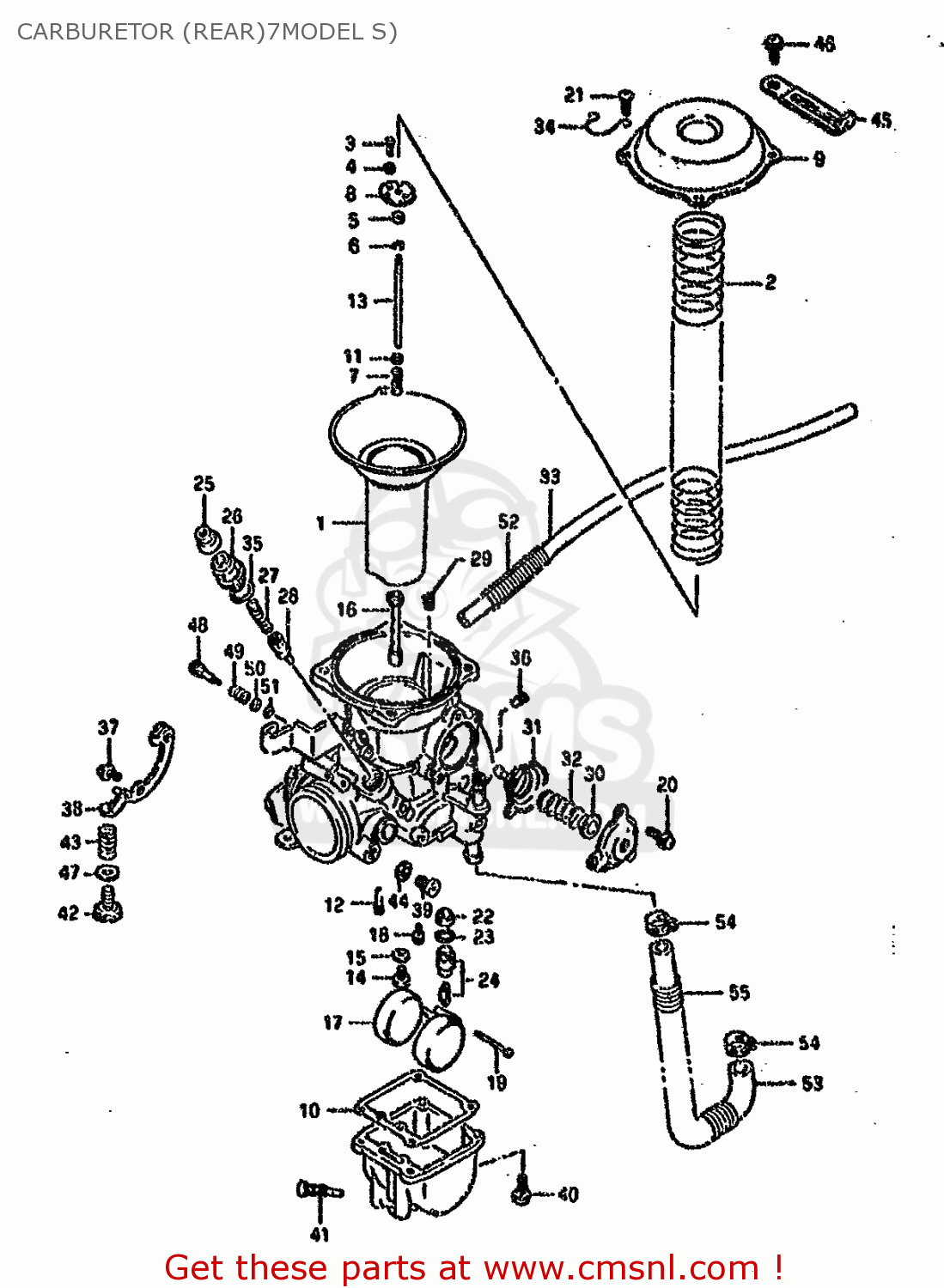

Carburetor (rear)7model s) diagram VS1400GLF 1991 (M) (E01 E04 E17 E21 E22 E34 E39)

CARBURETOR (REAR)7MODEL S) VS1400GLF 1991 (M) (E01 E04 E17 E21 E22 E34 E39)
CARBURETOR (REAR)7MODEL S) VS1400GLF 1991 (M) (E01 E04 E17 E21 E22 E34 E39)
CARBURETOR (REAR)7MODEL S) VS1400GLF 1991 (M) (E01 E04 E17 E21 E22 E34 E39)
prices are in EUR
ref
part #
description
quantity
0
1322038B90
ref: 0
E22,E24
CARBURETOR ASS
€ 731.50
0
1322038B70
ref: 0
CARBURETOR ASSY, REAR
€ 730.00
0
1322038BA0
ref: 0
E37
CARBURETOR ASSY, REAR
€ 0.00
1
1350038A10
ref: 1
DIAPHRAGM,CARBURETOR
1350038A10
€ 222.50
2
1350305A10
ref: 2
SPRING,DIAPHRAGM
1350305A10
€ 12.00
3
0211203063
ref: 3
SCREW
0211203063
€ 2.00
4
0832121036
ref: 4
LOCK WASHER
0832121036
€ 1.50
5
1338747010
ref: 5
RING
1338747010
€ 7.50
6
1339410010
ref: 6
CLIP
1339410010
€ 4.50
7
1338844030
ref: 7
SPRING
1338844030
€ 6.00
8
1338937400
ref: 8
PLATE
1338937400
€ 5.50
9
1350238A10
ref: 9
COVER,DIAPHRAGM
€ 37.50
10
1325138A10
ref: 10
GASKET,FLOAT CHAMBER (NAS)
1325138A10
€ 8.00
11
1338244030
ref: 11
WASHER
1338244030
€ 3.50
12
0949257004
ref: 12
JET,PILOT
0949257004
€ 10.50
13
1338338B80
ref: 13
NEEDLE,JET
1338338B80
€ 17.50
14
0949128010
ref: 14
JET,MAIN(140)
0949128010
€ 8.50
15
1333244080
ref: 15
WASHER,NEEDLE NOZZLE
€ 2.50
16
0949400573
ref: 16
JET,NEEDLE
€ 37.00
17
1325223010
ref: 17
FLOAT
1325223010
€ 19.00
18
1360205A10
ref: 18
SCREW
1360205A10
€ 4.00
19
1325492311
ref: 19
PIN,FLOAT
1325492311
€ 2.00
20
0211204106
ref: 20
SCREWM4X0.7X10
€ 1.00
21
0211204086
ref: 21
SCREW
€ 2.00
22
1337684110
ref: 22
FILTER
€ 6.50
23
1337444080
ref: 23
O-RING,NEEDLE VALVE
1337444080
€ 6.00
24-1
1337039A00
ref: 24-1
VALVE ASSY,NEEDLE
1337039A00
€ 67.50
24-2
1337038E00
ref: 24-2
E37
VALVE ASSY,NEEDLE(NI)
€ 67.50
25
1368104010
ref: 25
CAP
1368104010
€ 3.00
26
1341843410
ref: 26
HOLDER,GUIDE
1341843410
€ 6.50
27
1341722010
ref: 27
SPRING
1341722010
€ 3.00
28
1341101400
ref: 28
PLUNGER,STARTER
1341101400
€ 11.50
29
0949338002
ref: 29
JET,AIR(1.9)
0949338002
€ 10.00
30
1348237300
ref: 30
FOR 13220-38890
PLATE
€ 0.00
31
1348005A10
ref: 31
DIAPHRAGM ASSY
1348005A10
€ 54.50
32
1348138B40
ref: 32
SPRING
1348138B40
€ 5.50
33
1368438A20
ref: 33
L:225-175
HOSE
€ 13.00
34
1369202500
ref: 34
CLIP
€ 7.00
35
1327847090
ref: 35
O RING
1327847090
€ 2.00
36
0949260010
ref: 36
JET
0949260010
€ 7.50
37
1360205A30
ref: 37
SCREW
1360205A30
€ 4.50
38
1355438B00
ref: 38
LEVER ASSEMBLY
1355438B00
€ 38.50
39
1360573000
ref: 39
SCREW
1360573000
€ 10.50
40
1360104148
ref: 40
SCREW
1360104148
€ 2.50
41
1324713A00
ref: 41
SCREW,DRAIN
1324713A00
€ 5.50
42
1326738A10
ref: 42
ADJUSTER
1326738A10
€ 13.00
43
1327193011
ref: 43
SPRING
1327193011
€ 4.50
44
1324978100
ref: 44
WASHER
1324978100
€ 4.00
45
1367105A20
ref: 45
CLIP
€ 3.00
46
1360238A20
ref: 46
SCREW
€ 1.50
47
1327737100
ref: 47
WASHER
1327737100
€ 2.00
48
1327947070
ref: 48
SCREW,PILOT
1327947070
€ 11.50
49
1326847070
ref: 49
SPRING
1326847070
€ 5.00
50
1329129900
ref: 50
WASHER
1329129900
€ 2.00
51
1329529900
ref: 51
O RING,PILOT AIR SCREW
1329529900
€ 4.00
52
1344638B00
ref: 52
SPRING
€ 8.50
53
1580138B00
ref: 53
HOSE,FUEL PUMP & CARBURETOR
€ 14.50
54
0940112406
ref: 54
CLAMP
€ 2.50
55
0944014030
ref: 55
SPRING
0944014030
€ 25.00
48-1
1327947070
ref: 48-1
MODEL H/J
SCREW,PILOT
1327947070
€ 11.50
48-2
1327947070
ref: 48-2
MODEL K/L/M/N E22, M
SCREW,PILOT
1327947070
€ 11.50
49
1326847070
ref: 49
SPRING
1326847070
€ 5.00
50
1329129900
ref: 50
WASHER
1329129900
€ 2.00
51
1329529900
ref: 51
O RING,PILOT AIR SCREW
1329529900
€ 4.00
52
1344638B00
ref: 52
SPRING
€ 8.50
53
1580138B00
ref: 53
HOSE,FUEL PUMP & CARBURETOR
€ 14.50
54
0940112406
ref: 54
CLAMP
€ 2.50
55
0944014030
ref: 55
SPRING
0944014030
€ 25.00
