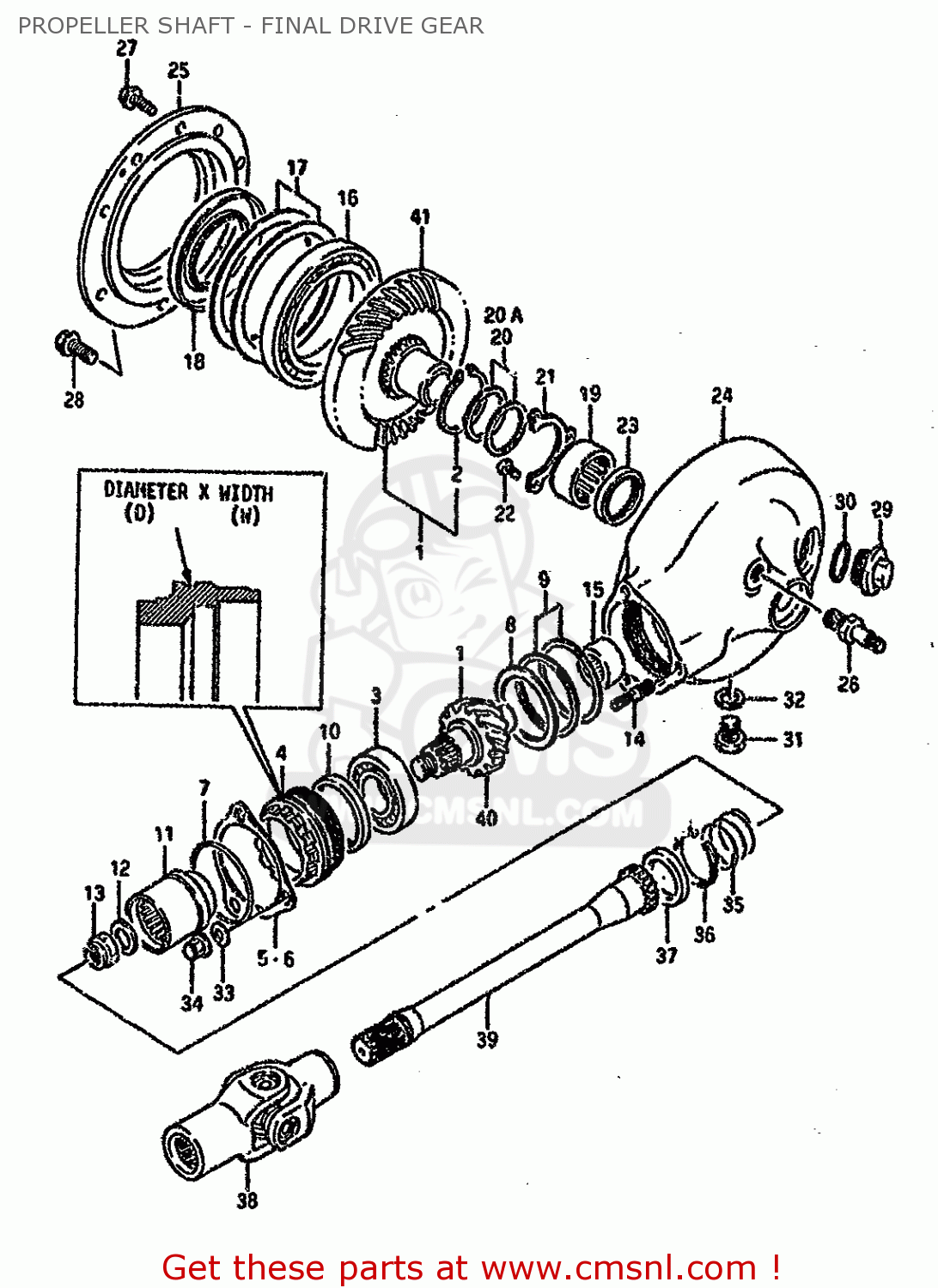

PROPELLER SHAFT - FINAL DRIVE GEAR - VS1400GLP 1993 (P) (E01 E04 E17 E21 E22 E24 E34)

ref

part #

description

quantity

0

2730038841
ref: 0
MODEL H/J/K/L/M 2730

GEAR & CASE SET,FINAL BEVEL

€ 1,448.50

0

2730038844
ref: 0
MODEL N/P/R

GEAR & CASE SET,FINAL BEVEL

€ 1,448.50

0

2730038845
ref: 0
MODEL S

GEAR & CASE SET,FINAL BEVEL

€ 1,448.50

1

2730038820
ref: 1
NT:12/32

GEAR & CASE SET,FINAL BEVEL

€ 198.00

2

0833131526
ref: 2

.CIRCLIP

€ 3.50

3-1

0926228009
ref: 3-1
MODEL H/J/K/L/M

BEARING

€ 71.00

3-2

0926228023
ref: 3-2
MODEL N/P/R/S

BEARING(28X68X18)

€ 71.00

4-1

2731224A01
ref: 4-1
~F.NO.106788,D:67.6,

STOPPER,FINAL DRIVE BEVEL

€ 38.50

4-2

2731224A02
ref: 4-2
F.NO.106789~,D:66,W:

STOPPER,FINAL DRIVE BEARING

€ 38.50

5

2731338B00
ref: 5

PLATE,BEARING STOPPER

€ 4.00

6

2731338B10
ref: 6

PLATE,BEARING STOPPER

€ 4.00

7-1

0928067004
ref: 7-1
~F.NO.106788

O RING(D:2.1,ID:66.2)

€ 2.50

7-2

0928064003
ref: 7-2
F.NO.106789~

O RING(D:3.1,ID:63.9)

€ 5.00

8

0916054001
ref: 8

WASHER(54X68X1.5)

€ 6.50

9

2744524810
ref: 9
T:0.3/0.35/0.4/0.5/0

SHIM SET,FINAL DRIVE GEAR

€ 14.50

10-1

0928347001
ref: 10-1
~F.NO.107472

OIL SEAL

€ 11.00

10-2

0928347002
ref: 10-2
F.NO.107473~

SEAL,OIL

€ 11.00

11

2717224A00
ref: 11

COUPLING,FINAL DRIVE GEAR

€ 35.50

12

0916016029
ref: 12

WASHER(16X29X4)

€ 6.00

13

0915916003
ref: 13

NUT

€ 3.50

14

0142110258
ref: 14

STUD 10X25

€ 3.00

15

0926320062
ref: 15

BEARING(20X34X18)

€ 26.50

16

0926285001
ref: 16

BEARING(85X130X14)

€ 108.00

17

2732738810
ref: 17
T:0.35/0.4/0.5/0.6

SHIM SET,FINAL DRIVEN GEAR

€ 62.00

18

0928970002
ref: 18

SEAL,OIL(70X110X14.7)

€ 57.50

19

0926335004
ref: 19

BEARING(35X48X23.7)

€ 58.00

20

0916035008
ref: 20

WASHER(35X46X0.95)

€ 3.00

20A

2732645810
ref: 20A
T:1.05/1.1/1.2/1.25/

SHIM SET,FINAL DRIVEN

€ 20.00

21

2732945100
ref: 21

RETAINER,FINAL DRIVEN GEAR BRG

€ 5.00

22-1

0211206128
ref: 22-1
MODEL H/J/K/L/M/N/P

SCREW 6X12

€ 2.00

22-2

0211206123
ref: 22-2
MODEL R/S

SCREW

€ 1.50

23

0928335033
ref: 23

SEAL,OIL(35X43X5)

€ 13.50

24

2745038B01
ref: 24

CASE,FINAL GEAR

€ 593.50

25

2746138B00
ref: 25

CASE,FINAL GEAR BEARING

€ 156.00

26

2748138A01
ref: 26

BOLT,STUD

€ 9.50

27-1

0151708258
ref: 27-1
MODEL H/J/K/L/M/N/P

BOLT

€ 2.50

27-2

0155008253
ref: 27-2
MODEL R/S

BOLT

€ 2.50

28-1

0151710257
ref: 28-1
MODEL H/J/K/L/M/N/P

BOLT

€ 3.00

28-2

0155010253
ref: 28-2
MODEL R/S

BOLT

€ 3.00

29

0925930007
ref: 29

PLUG,30X9

€ 14.50

30

0928027002
ref: 30

O-RING

€ 3.00

31

0924714019
ref: 31

PLUG

€ 5.50

32-1

0916814004
ref: 32-1
MODEL H/J/K/L/M/N/P

GASKET(14X19.2X2) (NAS)

€ 2.50

32-2

0916814002
ref: 32-2
MODEL R/S

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

33

0916410008
ref: 33

WASHER

€ 1.50

34

0915910026
ref: 34

NUT

€ 6.00

35

0944030008
ref: 35

SPRING

€ 2.50

36

0938140003
ref: 36

CIRCLIP

€ 5.00

37

0928330026
ref: 37

SEAL,OIL(30X40.5X5.5)

€ 9.00

38

2710038B00
ref: 38

YOKE COMP,UNIVERSAL JOINT

€ 357.50

39

2715138B00
ref: 39

SHAFT,PROPELLER

€ 205.50

40

2731124A03
ref: 40
NT:12

GEAR,FINAL DRIVE BEVEL

€ 198.00

41

2732038B00
ref: 41
NT:32

GEAR,FINAL DRIVEN BEVEL

€ 360.00
