TRANSMISSION (MODEL M/N/P/R/S E2,E4,E17,E21,E24,E34)

VS1400GLP 1993 (P) (E01 E04 E17 E21 E22 E24 E34)

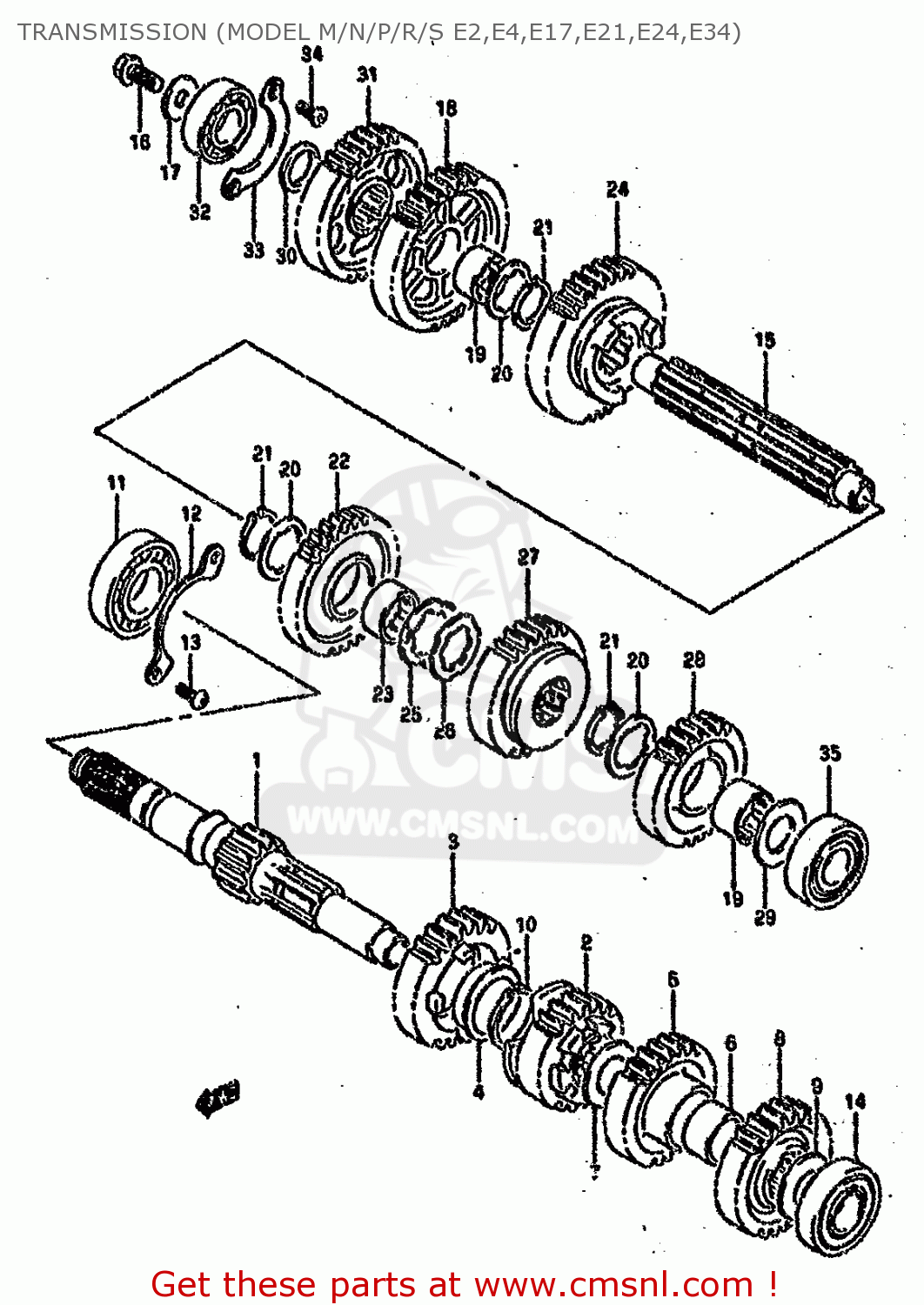

Transmission (model m/n/p/r/s e2,e4,e17,e21,e24,e34) diagram VS1400GLP 1993 (P) (E01 E04 E17 E21 E22 E24 E34)

TRANSMISSION (MODEL M/N/P/R/S E2,E4,E17,E21,E24,E34) VS1400GLP 1993 (P) (E01 E04 E17 E21 E22 E24 E34)
TRANSMISSION (MODEL M/N/P/R/S E2,E4,E17,E21,E24,E34) VS1400GLP 1993 (P) (E01 E04 E17 E21 E22 E24 E34)
TRANSMISSION (MODEL M/N/P/R/S E2,E4,E17,E21,E24,E34) VS1400GLP 1993 (P) (E01 E04 E17 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
2412038B10
ref: 1
SHAFT,COUNTER
2412038B10
€ 204.00
2
2422138B10
ref: 2
GEAR,SECOND DRIVE
€ 160.50
3
2423138B10
ref: 3
GEAR,THIRD DRIVE
€ 129.50
4
0930128001
ref: 4
BUSH(28X32X2)
0930128001
€ 19.50
5
2424138B10
ref: 5
GEAR,FOURTH DRIVE
€ 140.50
6
2424238B10
ref: 6
BUSH,4TH DRIVE GEAR
2424238B10
€ 27.50
7
0821122321
ref: 7
WASHER
0821122321
€ 3.00
8
2425138B10
ref: 8
GEAR,FIFTH DRIVE
€ 125.00
9
0821120321
ref: 9
WASHER,THRUST
€ 3.00
10
0833131286
ref: 10
CIRCLIP
0833131286
€ 2.50
11
0926225080
ref: 11
BEARING(25X62X17)
0926225080
€ 21.50
12
2474138A00
ref: 12
RETAINER,CNTR SHAFT BEARING
2474138A00
€ 4.00
13-1
0211206126
ref: 13-1
MODEL M/N/P/R
SCREW
0211206126
€ 1.50
13-2
0211206123
ref: 13-2
MODEL S
SCREW
0211206123
€ 1.50
14
0926220080
ref: 14
BEARING(20X52X15)
0926220080
€ 21.50
15
2413138B10
ref: 15
SHAFT,DRIVE
€ 245.00
16
0910310112
ref: 16
BOLT(10X24)
0910310112
€ 4.00
17
0821110305
ref: 17
WASHER
0821110305
€ 3.00
18
2431138B00
ref: 18
GEAR,FIRST DRIVEN
€ 169.50
19
2433224A00
ref: 19
BUSH
2433224A00
€ 18.00
20
0916728001
ref: 20
WASHER,LOCK
0916728001
€ 3.00
21
0833131286
ref: 21
CIRCLIP
0833131286
€ 2.50
22
2432138B10
ref: 22
GEAR,SECOND DRIVEN
€ 188.50
23
2433249000
ref: 23
BUSH,3RD DRIVEN GEAR
2433249000
€ 13.50
24
2433138B10
ref: 24
GEAR,THIRD DRIVEN
€ 177.50
25
0916928001
ref: 25
WASHER
0916928001
€ 3.00
26
0916728002
ref: 26
WASHER,LOCK
0916728002
€ 3.00
27
2434138B10
ref: 27
GEAR,FOURTH DRIVEN
€ 181.00
28
2435138B10
ref: 28
GEAR,FIFTH DRIVEN
€ 110.50
29
0821120382
ref: 29
WASHER
0821120382
€ 3.00
30
0916022032
ref: 30
WASHER(22X32X3)
0916022032
€ 4.00
31
2462138B00
ref: 31
NT:34
GEAR,OVER DRIVING DRIVE(NT:34)
€ 183.50
32
0926222025
ref: 32
09262-22012
BEARING(22X56X16)
0926222025
€ 63.50
33
2474138401
ref: 33
RETAINER,CNTR SHAFT BEARING
€ 5.50
34-1
0212206128
ref: 34-1
MODEL M/N/P/R
SCREW
0212206128
€ 3.00
34-2
0212206123
ref: 34-2
MODEL S
SCREW
0212206123
€ 3.00
35
0926220080
ref: 35
BEARING(20X52X15)
0926220080
€ 21.50
