REAR CALIPER (MODEL P/R/S)

VS1400GLP 1993 (P) (E01 E04 E17 E21 E22 E24 E34)

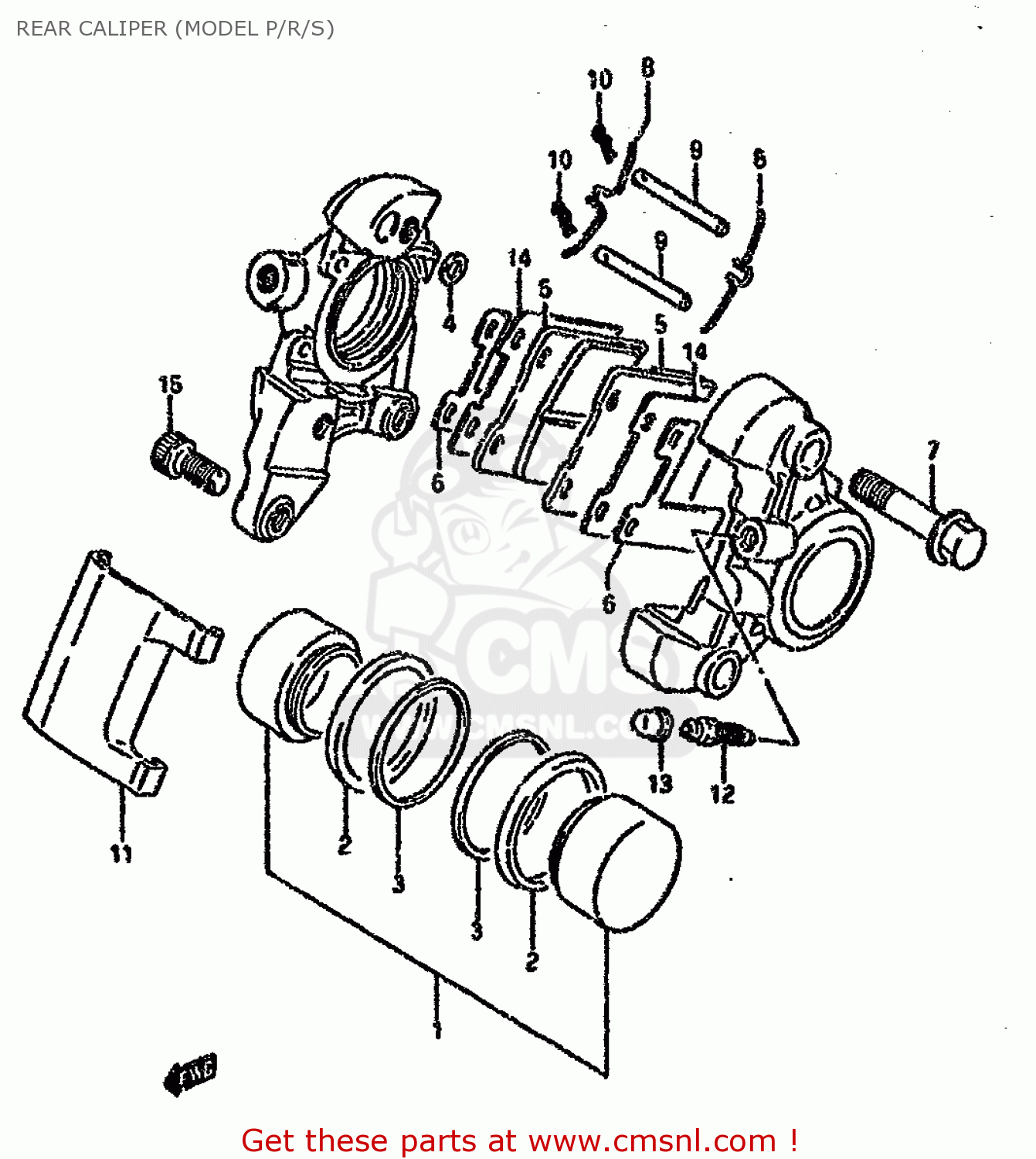

Rear caliper (model p/r/s) diagram VS1400GLP 1993 (P) (E01 E04 E17 E21 E22 E24 E34)

REAR CALIPER (MODEL P/R/S) VS1400GLP 1993 (P) (E01 E04 E17 E21 E22 E24 E34)
REAR CALIPER (MODEL P/R/S) VS1400GLP 1993 (P) (E01 E04 E17 E21 E22 E24 E34)
REAR CALIPER (MODEL P/R/S) VS1400GLP 1993 (P) (E01 E04 E17 E21 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
0
6910038B11
ref: 0
CALIPER ASSEMBLY,REAR
€ 707.00
1
6910038810
ref: 1
PISTON SET
€ 176.00
2
5513666310
ref: 2
SEAL,FR CALIPE
5513666310
€ 8.50
3
6910845010
ref: 3
SEAL,WIPER
6910845010
€ 28.50
4
6910734200
ref: 4
SEAL,JOINT
6910734200
€ 12.00
5
6913038B10
ref: 5
PAD,BRAKE
6913038B10
€ 46.00
6
5937133420
ref: 6
SHIM
5937133420
€ 14.00
7
5914516700
ref: 7
BOLT,HOUSING
5914516700
€ 8.00
8
5914316700
ref: 8
SPRING
5914316700
€ 7.50
9
6914145000
ref: 9
PIN,PAD
6914145000
€ 6.50
10
6914245000
ref: 10
CLIP,PAD PIN
6914245000
€ 4.50
11
5915124A00
ref: 11
COVER
5915124A00
€ 18.00
12
5912118410
ref: 12
BLEEDER
5912118410
€ 8.00
13
5515666310
ref: 13
CAP,BLEEDER PLUG
5515666310
€ 6.00
14
5937133410
ref: 14
SHIM,PAD
5937133410
€ 15.00
15-1
0711010205
ref: 15-1
MODEL P/R
BOLT
€ 3.00
15-2
0713010203
ref: 15-2
MODEL S
BOLT
0713010203
€ 3.50
