AIR CLEANER (REAR)

VS1400GLP 1996 (T) (E02 E04 E17 E22 E24 E34 E37)

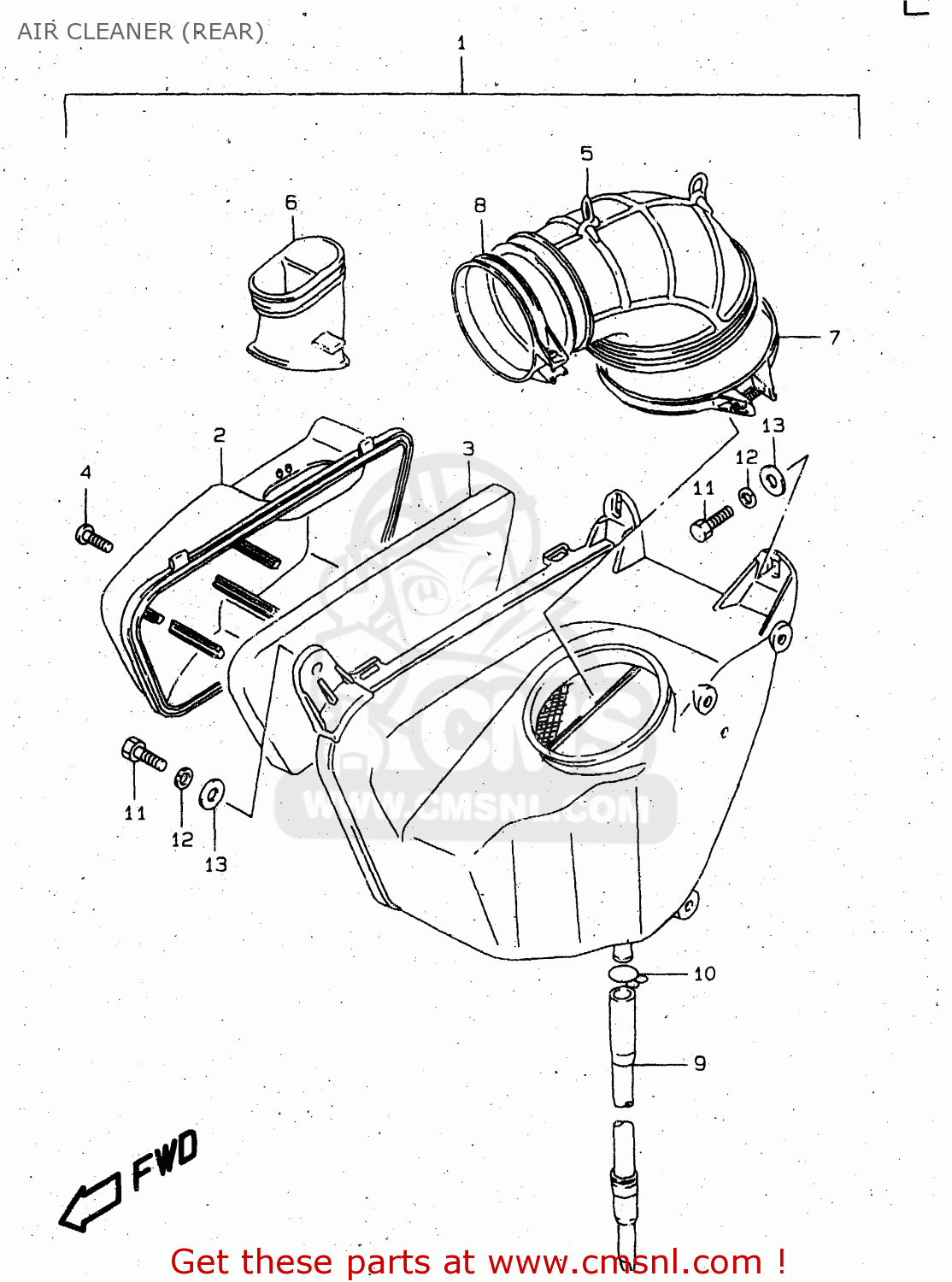

Air cleaner (rear) diagram VS1400GLP 1996 (T) (E02 E04 E17 E22 E24 E34 E37)

AIR CLEANER (REAR) VS1400GLP 1996 (T) (E02 E04 E17 E22 E24 E34 E37)

AIR CLEANER (REAR) VS1400GLP 1996 (T) (E02 E04 E17 E22 E24 E34 E37)

prices are in EUR

ref

part #

description

quantity

1

1370038B80
ref: 1

CLEANER ASSY,AIR RR

€ 175.00

1

1370038B70
ref: 1
E24

CLEANER ASSY,AIR RR

€ 211.00

2

1374038B51
ref: 2

CAP,AIR CLEANER RR

€ 29.00

3

1378138B60
ref: 3

FILTER,AIR RR

€ 11.00

4

0214205163
ref: 4

SCREW

€ 2.50

5

1388138B50
ref: 5

TUBE,AIR CLEANER OUTLET

€ 25.50

6

1389138B80
ref: 6

TUBE,INLET

€ 13.50

6

1389138B50
ref: 6
E24

TUBE,INLET

€ 21.00

7

0940282202
ref: 7

CLAMP

€ 7.00

8

0940258208
ref: 8

CLAMP

€ 5.50

9

1387011458
ref: 9

TUBE,DRAIN

€ 13.50

10

0940113409
ref: 10

CLIP

€ 2.50

11

0150006207
ref: 11

BOLT

€ 2.00

12

0832101067
ref: 12

WASHER,LOCK

€ 2.50

13

0916006019
ref: 13

WASHER(6.5X16X1.2)

€ 1.50

all assemblies
