REAR FENDER (MODEL X)

VS1400GLP 1996 (T) (E02 E04 E17 E22 E24 E34 E37)

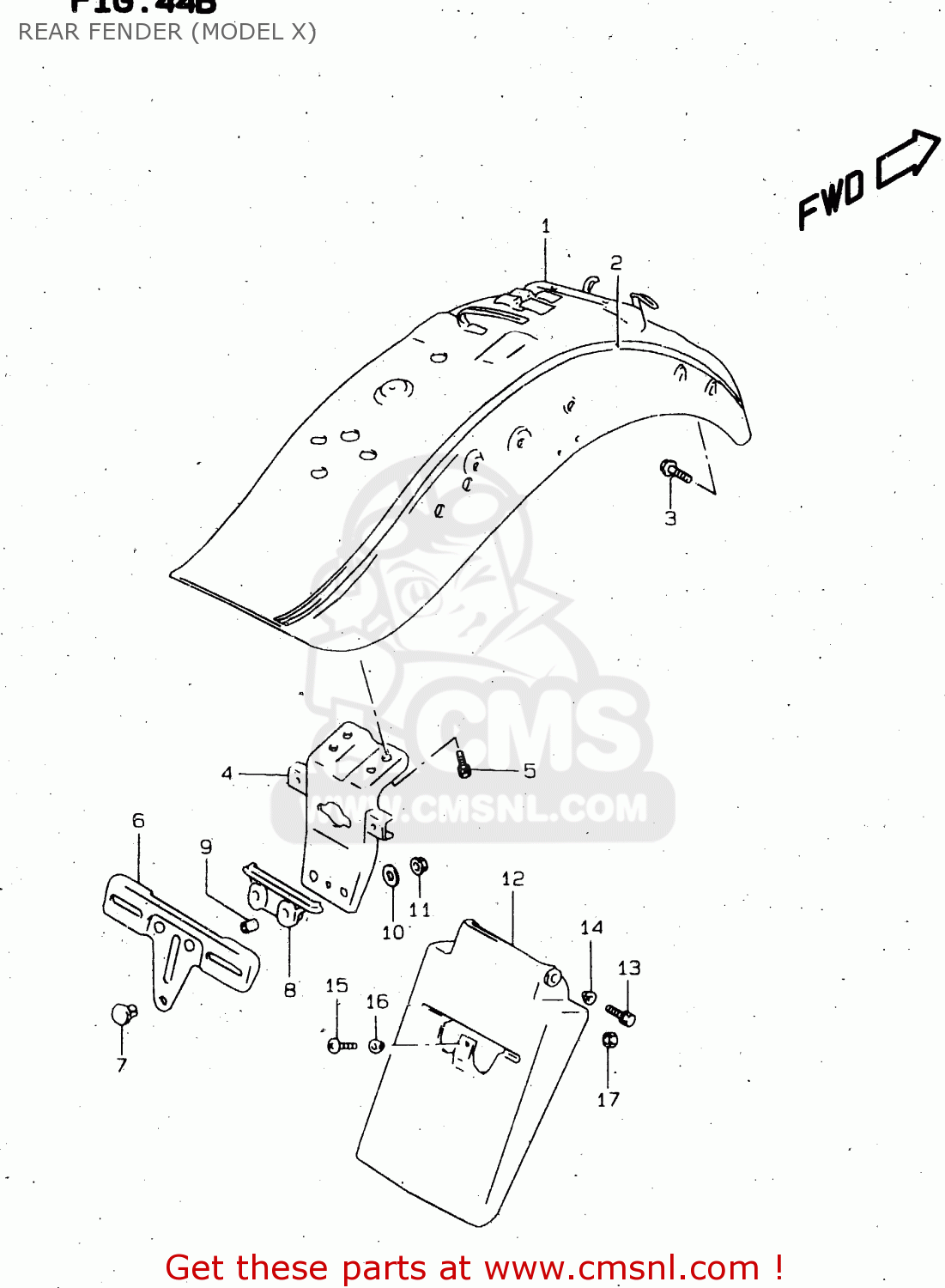

Rear fender (model x) diagram VS1400GLP 1996 (T) (E02 E04 E17 E22 E24 E34 E37)

REAR FENDER (MODEL X) VS1400GLP 1996 (T) (E02 E04 E17 E22 E24 E34 E37)
REAR FENDER (MODEL X) VS1400GLP 1996 (T) (E02 E04 E17 E22 E24 E34 E37)
REAR FENDER (MODEL X) VS1400GLP 1996 (T) (E02 E04 E17 E22 E24 E34 E37)
prices are in EUR
ref
part #
description
quantity
1
6310038B20E88
ref: 1
FENDER, REAR
€ 476.50
1
6310038B20G2P
ref: 1
FENDER, REAR
€ 363.00
1
6310038B20M0J
ref: 1
FENDER, REAR
€ 451.50
1
6310038B40E88
ref: 1
E17
FENDER, REAR
€ 347.50
1
6310038B40G2P
ref: 1
E17
FENDER, REAR
€ 347.50
1
6310038B40M0J
ref: 1
E17
FENDER ASSY,RR
€ 0.00
2
6817038B01L3U
ref: 2
FOR E88
TAPE SET,REAR FENDER S
€ 76.50
2
6817038B01J5S
ref: 2
FOR G2P
TAPE SET,REAR FENDER S
€ 65.50
2
6817038B01M1B
ref: 2
FOR M0J
TAPE SET,REAR FENDER S
€ 69.50
3
0155008203
ref: 3
BOLT
0155008203
€ 3.00
4
6346038B10
ref: 4
BRACKET,LICENSE LAMP
6346038B10
€ 56.50
5
0157006123
ref: 5
BOLT
0157006123
€ 1.50
6
6346338B00
ref: 6
PLATE,REAR LICENSE
6346338B00
€ 27.50
7
0932108005
ref: 7
CUSHION
0932108005
€ 2.50
8
6346438B00
ref: 8
CUSHION,RR LICENSE PLATE
6346438B00
€ 14.50
9
0918005050
ref: 9
SPACER(5.5X8X14.3)
0918005050
€ 4.00
10
0916005501
ref: 10
WASHER(5.5X20X1.2)
0916005501
€ 2.00
11
0831620053
ref: 11
NUT
0831620053
€ 2.00
12
6331138B00
ref: 12
E17, E22
EXTENSION,RR FENDER
6331138B00
€ 26.50
13
0157006163
ref: 13
E17, E22
BOLT
0157006163
€ 2.50
14
0916906045
ref: 14
E17, E22
WASHER
0916906045
€ 2.50
15
0211206123
ref: 15
E17, E22
SCREW
0211206123
€ 1.50
16
0916906033
ref: 16
E17, E22
WASHER
0916906033
€ 1.50
17
0831921068
ref: 17
E17, E22
NUT 6MM
0831921068
€ 2.00
