CYLINDER

VS1400GLP 1996 (T) (E02 E04 E17 E22 E24 E34 E37)

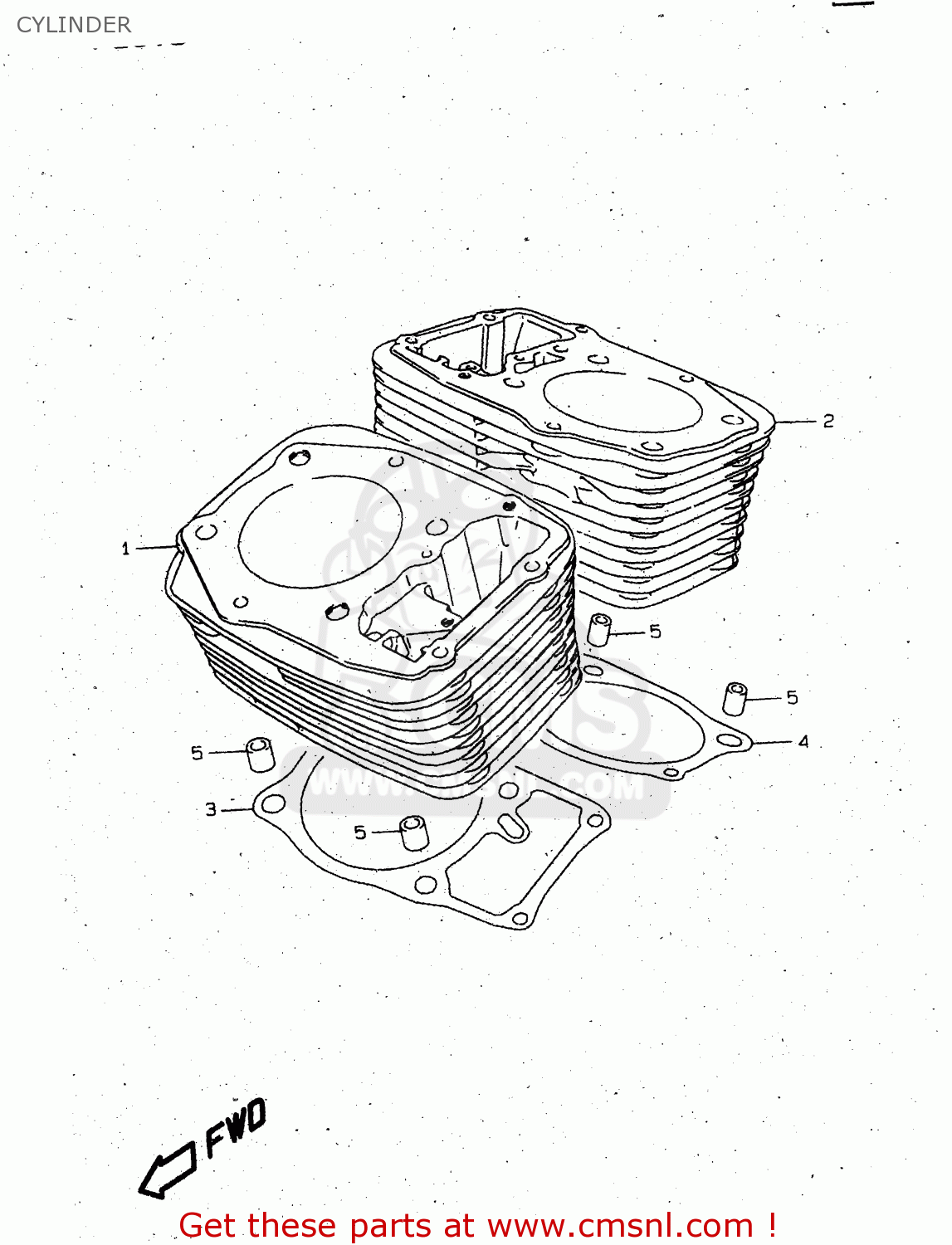

Cylinder diagram VS1400GLP 1996 (T) (E02 E04 E17 E22 E24 E34 E37)

CYLINDER VS1400GLP 1996 (T) (E02 E04 E17 E22 E24 E34 E37)

CYLINDER VS1400GLP 1996 (T) (E02 E04 E17 E22 E24 E34 E37)

prices are in EUR

ref

part #

description

quantity

1

1121038B02
ref: 1
MODEL T/V/W

CYLINDER,FRONT

€ 666.50

1

1121038B50
ref: 1
MODEL X

CYLINDER,FRONT

€ 574.00

2

1122038B02
ref: 2
MODEL T/V/W

CYLINDER,REAR

€ 563.50

2

1122038B50
ref: 2
MODEL X

CYLINDER,REAR

€ 563.50

3

1124138B00H17
ref: 3

GASKET,CYLINDER FR (NAS)

€ 26.00

4

1124238B00H17
ref: 4

GASKET,CYLINDER RR (NAS)

€ 23.50

5

0421113189
ref: 5

PIN

€ 2.50
