AIR CLEANER (FRONT)

VS1400GLP INTRUDER 1991 (M) USA (E03)

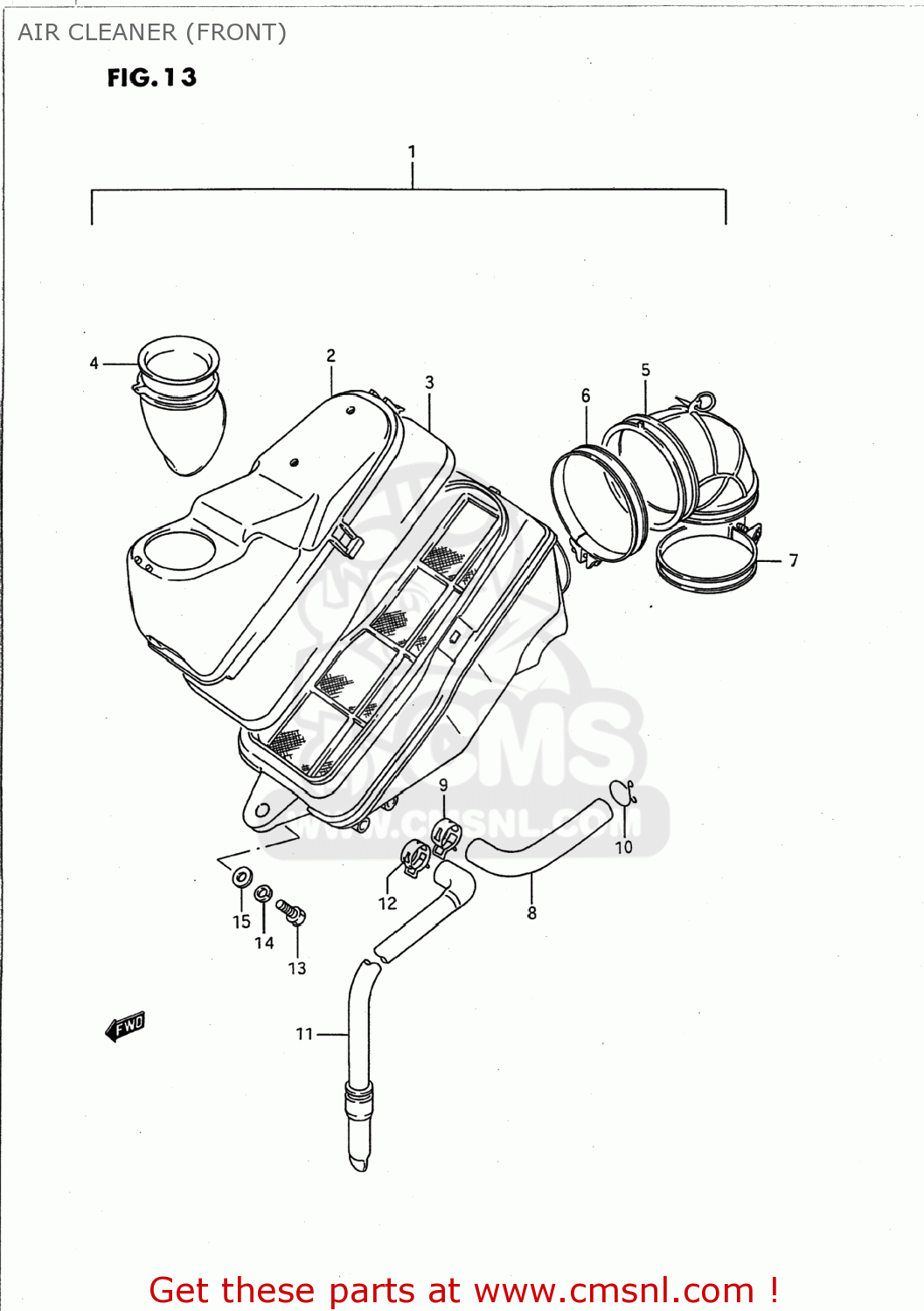

Air cleaner (front) diagram VS1400GLP INTRUDER 1991 (M) USA (E03)

AIR CLEANER (FRONT) VS1400GLP INTRUDER 1991 (M) USA (E03)
AIR CLEANER (FRONT) VS1400GLP INTRUDER 1991 (M) USA (E03)
AIR CLEANER (FRONT) VS1400GLP INTRUDER 1991 (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1370038B02
ref: 1-1
13700-38B20
CLEANER ASSEMBLY,AIR
€ 201.50
1-2
1370038B03
ref: 1-2
13700-38B20
CLEANER ASSEMBLY,AIR
€ 201.50
1-3
1370038B20
ref: 1-3
CLEANER ASSY,AIR FR
€ 201.50
2-1
1374038B00
ref: 2-1
13740-38B01
CAP,AIR CLEANER
€ 27.00
2-2
1374038B01
ref: 2-2
CAP,AIR CLEANER FR
1374038B01
€ 27.00
3-1
1378138B00
ref: 3-1
13781-38B10
ELEMENT,AIR CLEANER
1378138B00
€ 11.00
3-2
1378138B10
ref: 3-2
FILTER,AIR FR
1378138B10
€ 11.00
4
1389138B00
ref: 4
TUBE,INLET
1389138B00
€ 16.50
5
1388138B00
ref: 5
TUBE,AIR CLEANER OUTLET
1388138B00
€ 25.50
6
0940272207
ref: 6
09402-72203
CLAMP
0940272207
€ 7.50
7
0940258208
ref: 7
CLAMP
0940258208
€ 5.50
8
1385438B00
ref: 8
TUBE,BREATHER
1385438B00
€ 16.50
9
1382638B00
ref: 9
09401-15407
CLAMP
€ 1.50
10-1
1382438B00
ref: 10-1
09401-14301
CLIP
€ 2.00
10-2
0940114301
ref: 10-2
CLIP
0940114301
€ 2.00
11
1387038B00
ref: 11
13870-21628
DRAIN TUBE
€ 23.50
12-1
1382738B00
ref: 12-1
09401-13417
CLAMP
€ 2.50
12-2
0940113413
ref: 12-2
09401-13417
CLIP
€ 2.50
13-1
0110706207
ref: 13-1
01500-06207
BOLT
0110706207
€ 2.00
13-2
0150006207
ref: 13-2
BOLT
0150006207
€ 2.00
14-1
0832121067
ref: 14-1
08321-01067
WASHER,LOCK
0832121067
€ 2.50
14-2
0832101067
ref: 14-2
WASHER,LOCK
0832101067
€ 2.50
15
0916006019
ref: 15
WASHER(6.5X16X1.2)
0916006019
€ 1.50
