STEERING STEM
VS1400GLP INTRUDER 1991 (M) USA (E03)

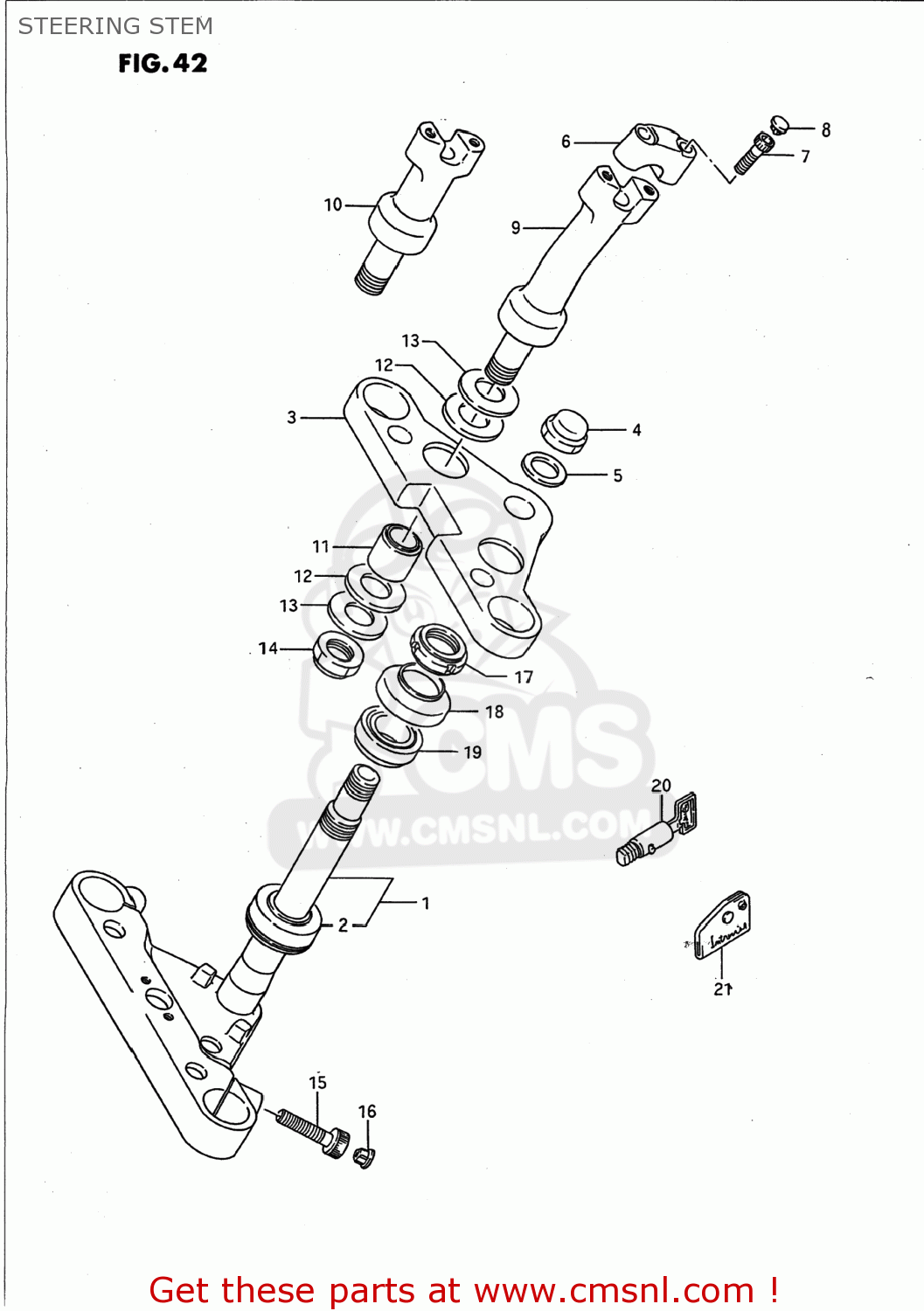

Steering stem diagram VS1400GLP INTRUDER 1991 (M) USA (E03)
STEERING STEM VS1400GLP INTRUDER 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5141038B00
ref: 1-1
51410-38B21
STEM,STEERING
€ 544.00
1-2
5141038B20
ref: 1-2
51410-38B21
STEM,STEERING
€ 544.00
2
0926530009
ref: 2
BEARING(30X55X17)
€ 49.50
3
5131138B00
ref: 3
51311-38B01
HEAD,STEERING STEM
€ 393.50
4-1
5135338A01
ref: 4-1
51353-24B00
NUT,CAP
€ 21.50
4-2
5135324B00
ref: 4-2
NUT,CAP
€ 21.50
5-1
5135438A01
ref: 5-1
51356-24B01
WASHER
€ 3.00
5-2
5135417C00
ref: 5-2
51356-24B01
WASHER
€ 3.00
5-3
5135624B01
ref: 5-3
WASHER(22.5X32X1.6)
€ 3.00
6
5621138A01
ref: 6
HOLDER,HANDLE UPR
€ 45.00
7
0711008305
ref: 7
07130-0830A
BOLT, REAR (8X30)
€ 3.00
8
0925006009
ref: 8
CAP(OD:14.5)
€ 3.50
9
5622038B00
ref: 9
HOLDER,HANDLE
€ 214.50
9
5622038B00
ref: 9
HOLDER,HANDLE
€ 214.50
10
5622038B10
ref: 10
HOLDER,HANDLE
€ 184.50
10
5622038B10
ref: 10
HOLDER,HANDLE
€ 184.50
11
5624038B00
ref: 11
CUSHION
€ 43.00
12
5624538B00
ref: 12
SEAT,RUBBER
€ 5.00
13
5624438B00
ref: 13
WASHER
€ 7.50
14
5624638B00
ref: 14
NUT
€ 42.00
15-1
5135238A00
ref: 15-1
07130-10307
BOLT,STEERING STEM HEAD
€ 4.50
15-2
0713010307
ref: 15-2
BOLT
€ 4.50
16
0925008014
ref: 16
CAP(OD:12)
€ 3.50
17
5163128000
ref: 17
NUT,STEERING STEM(25X44X10)
€ 12.50
18-1
5164349001
ref: 18-1
51643-49002
DUST SEAL,STEERING,UPPER
€ 7.50
18-2
5164349002
ref: 18-2
SEAL,STEERING UPR DUST
€ 7.50
19
0926525008
ref: 19
09265-25019
TAPER,ROLLER BEARING
€ 48.50
20
5190038810
ref: 20
LOCK SET,STEERING
€ 168.50
21
5192038A00
ref: 21
CASE,STEERING KEY
€ 10.50
