FOOTREST
VS1400GLP INTRUDER 1991 (M) USA (E03)

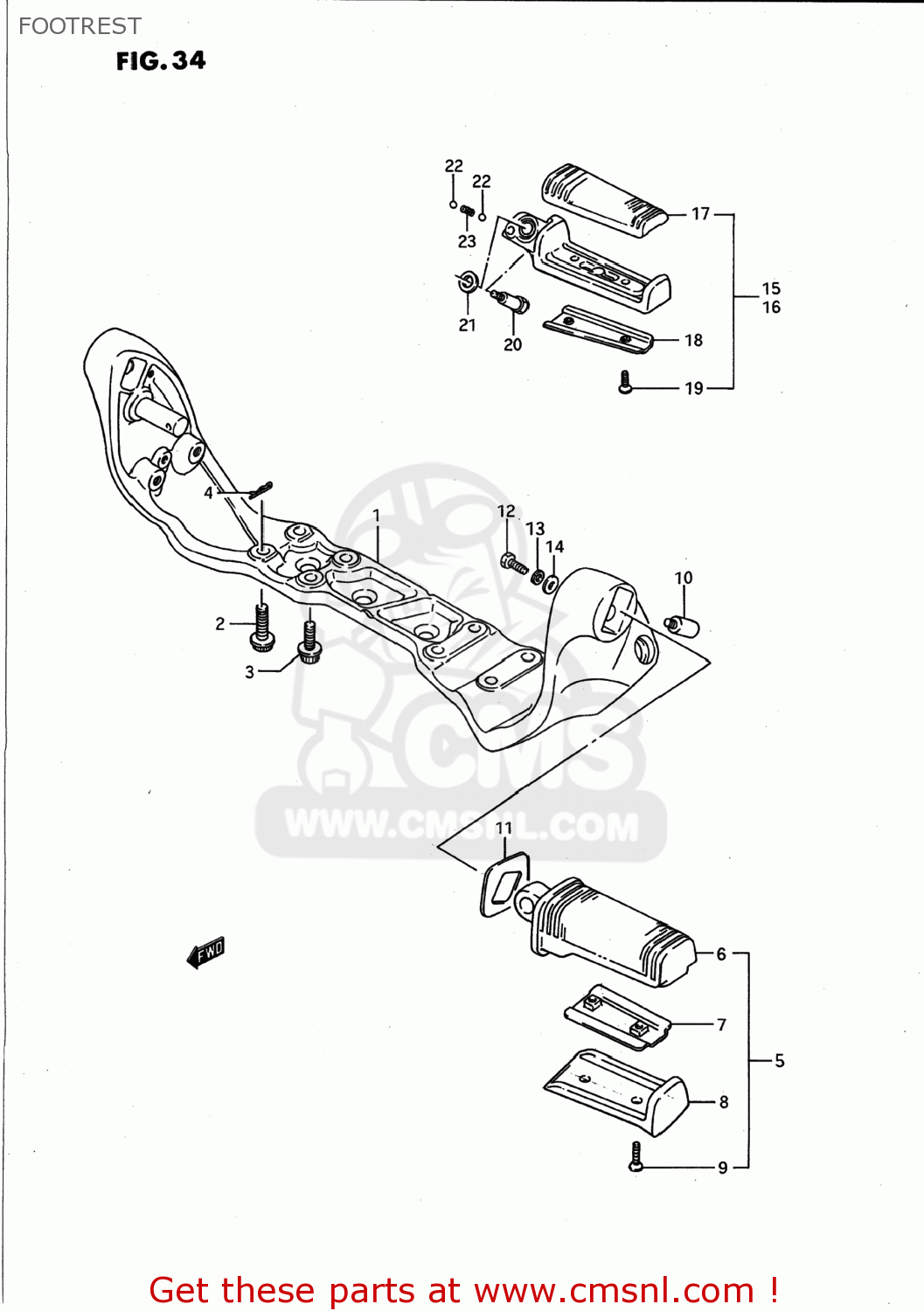

Footrest diagram VS1400GLP INTRUDER 1991 (M) USA (E03)
FOOTREST VS1400GLP INTRUDER 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4351038B01
ref: 1-1
43510-39B20
BRACKET,FRONT FOOTREST
€ 769.00
1-2
4351038B02
ref: 1-2
43510-39B20
BRACKET,FRONT FOOTREST
€ 769.00
2
0910608064
ref: 2
BOLT(8X25)
€ 4.50
3-1
0712008208
ref: 3-1
07120-0820A
BOLT
€ 3.00
3-2
0712008203
ref: 3-2
07120-0820A
BOLT
€ 3.00
4
0938508005
ref: 4
SNAP
€ 2.00
5-1
4350138B10
ref: 5-1
43501-38B11
FOOTREST ASSEMBLY,FRONT,RIGHT
€ 97.00
5-2
4350238B10
ref: 5-2
43502-38B11
FOOTREST ASSEMBLY,FRONT,LEFT
€ 97.00
6
4355138B00
ref: 6
RUBBER,FR FOOTREST
€ 12.50
7
4358038B10
ref: 7
PLATE,RUBBER STOPPER
€ 8.50
8
4358538B10
ref: 8
43585-38B11
COVER,FRONT FOOTREST
€ 45.50
9
0912705018
ref: 9
SCREW(5X20)
€ 2.50
10
4364138B00
ref: 10
09106-06101
BOLT,FRONT FOOTREST
€ 4.50
11-1
4354638B00
ref: 11-1
43546-38B01
WASHER,FRONT FOOTREST
€ 5.00
11-2
4354638B01
ref: 11-2
WASHER,FR FOOTREST
€ 5.00
12-1
0713005127
ref: 12-1
BOLT
€ 2.50
12-2
0713005123
ref: 12-2
07130-0512B
BOLT
€ 2.50
13-1
0832101057
ref: 13-1
08321-0105A
WASHER,LOCK
€ 2.00
13-2
0832101053
ref: 13-2
08321-0105A
LOCK,WASHER
€ 3.00
14
0832201057
ref: 14
WASHER
€ 2.50
15
4360038A01
ref: 15
FOOTREST ASSY RH
€ 39.50
16
4370038A01
ref: 16
FOOTREST ASSY PILLION LH
€ 35.50
17
4361238A00
ref: 17
RUBBER,PILLION FOOTREST
€ 12.00
18
4363238A00
ref: 18
PLATE,RUBBER STOPPER
€ 4.00
19
0912705017
ref: 19
SCREW(5X16)
€ 2.00
20
0911106050
ref: 20
BOLT(6X34.5)
€ 5.00
21
0822108164
ref: 21
SHIM
€ 1.50
22
0611107004
ref: 22
BALL
€ 1.50
23
0944005031
ref: 23
SPRING
€ 1.50
