FUEL COCK
VS1400GLP INTRUDER 1993 (P) USA (E03)

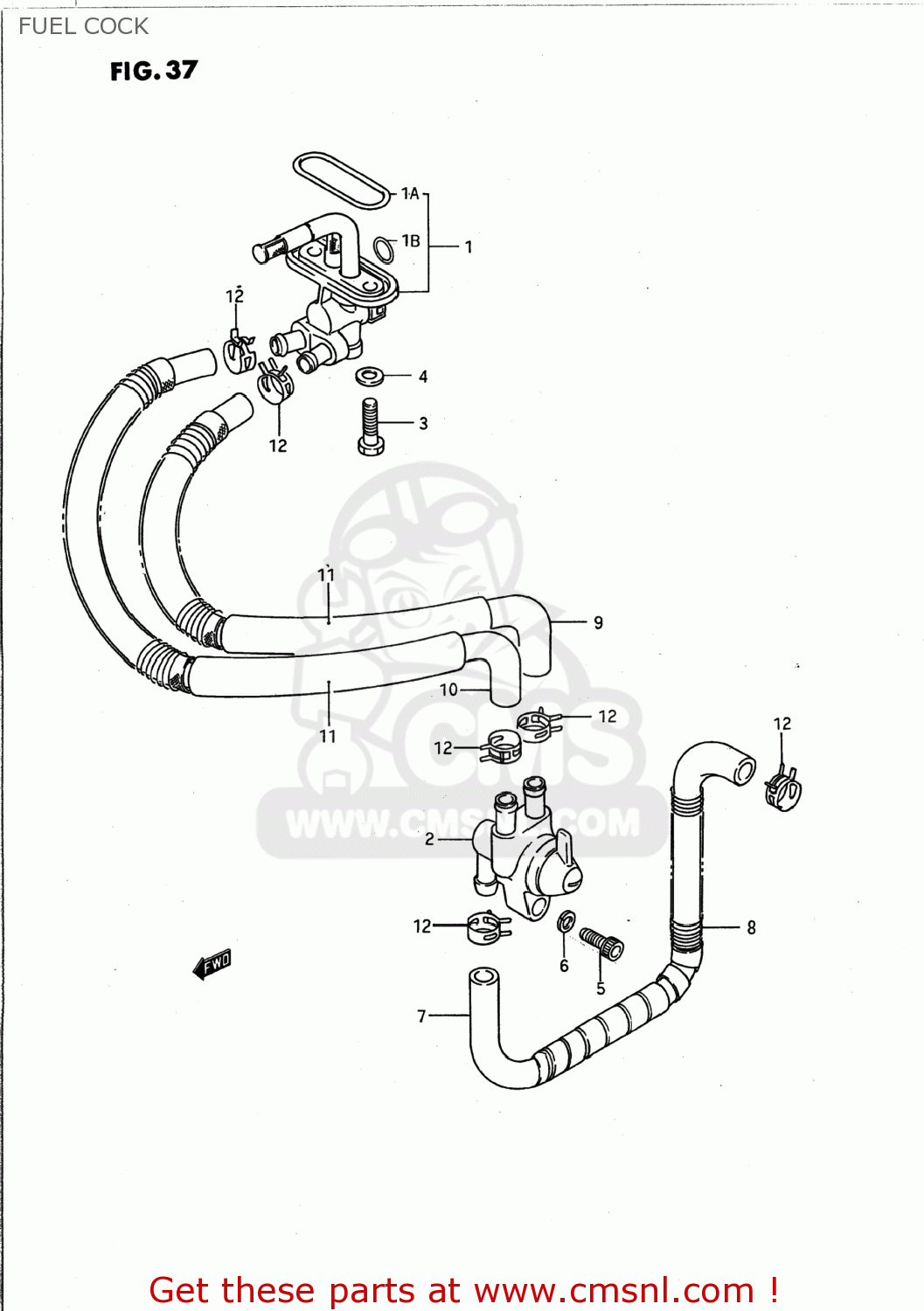

Fuel cock diagram VS1400GLP INTRUDER 1993 (P) USA (E03)
FUEL COCK VS1400GLP INTRUDER 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1A
4434828070
ref: 1A
O RING,FUEL COCK
€ 4.50
1B
4435312C00
ref: 1B
44353-12C01
O-RING,LEVER
€ 7.50
1-1
4430038B01
ref: 1-1
44300-38B02
COCK ASSEMBLY,FUEL
€ 142.00
1-2
4430038B02
ref: 1-2
COCK ASSY,FUEL
€ 142.00
2-1
4430038B10
ref: 2-1
44300-38B13
COCK ASSEMBLY,FUEL
€ 171.50
2-2
4430038B12
ref: 2-2
44300-38B13
COCK ASSEMBLY,FUEL
€ 171.50
3
0912806006
ref: 3
09128-06057
BOLT(6X20)
€ 2.00
4
0916806026
ref: 4
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
5-1
0713005127
ref: 5-1
BOLT
€ 2.50
5-2
0713005123
ref: 5-2
07130-0512B
BOLT
€ 2.50
6-1
0832101057
ref: 6-1
08321-0105A
WASHER,LOCK
€ 2.00
6-2
0832101053
ref: 6-2
08321-0105A
LOCK,WASHER
€ 3.00
7
4442038B01
ref: 7
44420-38BR0
HOSE COMP,FUEL PUMP &
€ 21.00
8
0944014026
ref: 8
SPRING
€ 18.00
9-1
4443038B01
ref: 9-1
44430-38BR0
HOSE,FUEL
€ 25.50
9-2
4443038B03
ref: 9-2
44430-38BR0
HOSE,FUEL
€ 25.50
10-1
4443038B10
ref: 10-1
44430-38BR0
HOSE,FUEL
€ 25.50
10-2
4443038B12
ref: 10-2
44430-38BS0
HOSE,FUEL NO.2
€ 49.50
10-3
4443038B03
ref: 10-3
44430-38BR0
HOSE,FUEL
€ 25.50
10-4
4443038B20
ref: 10-4
44430-38BR0
HOSE,FUEL
€ 25.50
11-1
4431038B00
ref: 11-1
44311-17E01
TUBE, FUEL HOSE
€ 17.50
11-2
4431138B02
ref: 11-2
44311-17E01
TUBE, INTERFERENCE HOSE
€ 17.50
11-3
4442338B00
ref: 11-3
44423-44B00
SHIELD,FUEL HOSE HEATER
€ 13.50
11-4
4431038B10
ref: 11-4
44311-17E01
TUBE, FUEL HOSE
€ 17.50
12-1
0940112406
ref: 12-1
09401-11415
CLAMP
€ 2.50
12-2
0940111407
ref: 12-2
09401-11415
CLIP
€ 2.50
