HANDLE SWITCH (MODEL S)

VS1400GLP INTRUDER 1993 (P) USA (E03)

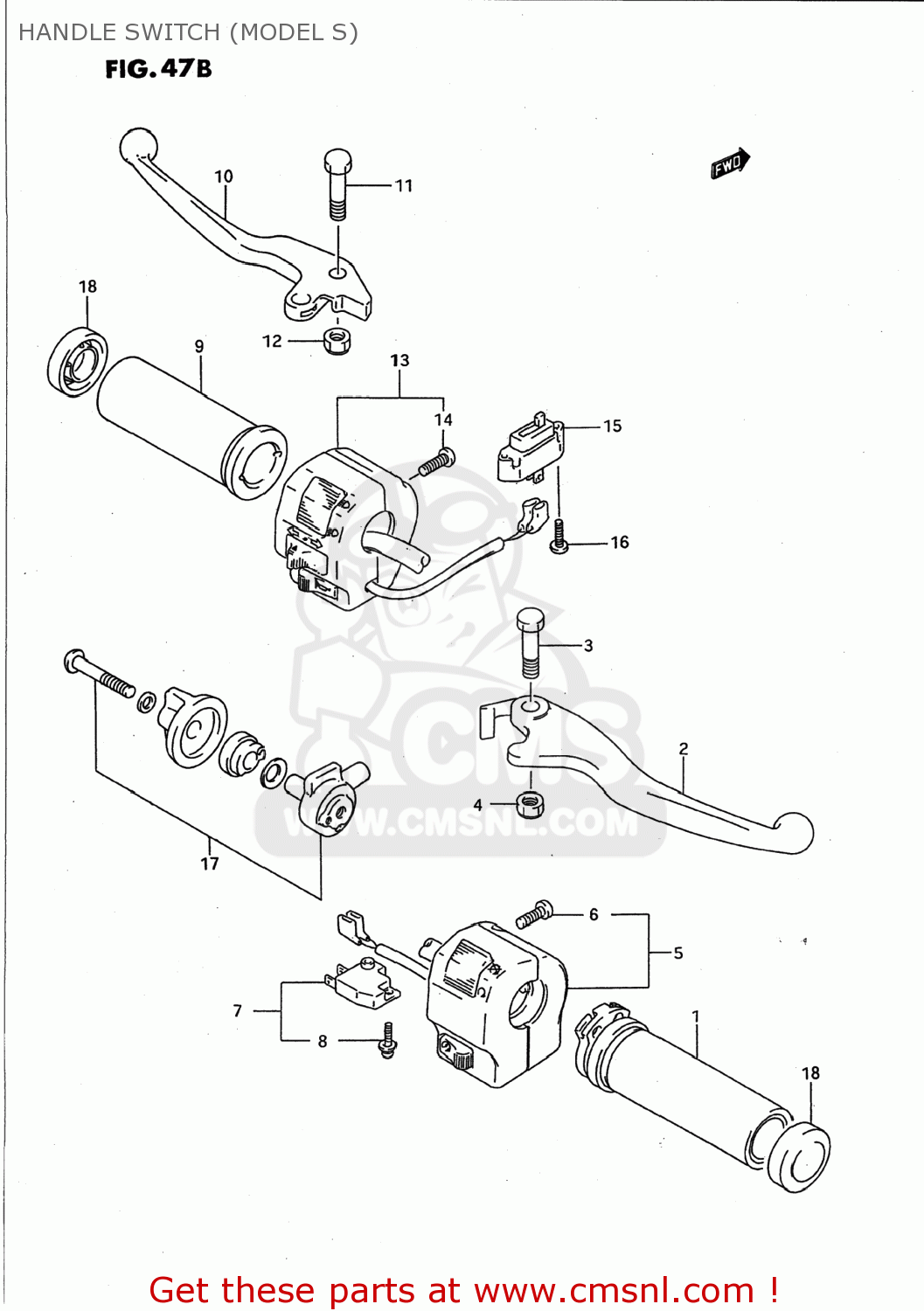

Handle switch (model s) diagram VS1400GLP INTRUDER 1993 (P) USA (E03)

prices are in EUR

ref

part #

description

quantity

5711026D00
ref: 1

GRIP,THROTTLE

€ 45.00

5742038B10
ref: 2

LEVER,BRAKE

€ 43.50

5743138A10
ref: 3

BOLT,LEVER SET

€ 14.50

0831921068
ref: 4
08319-2106A

NUT 6MM

€ 2.00

3720038BD0
ref: 5
37200-38BD1

SWITCH ASSEMBLY,HANDLE,RIGHT

€ 127.50

0211205167
ref: 6

SCREW

€ 2.50

5746017C00
ref: 7
57460-17C01

SWITCH ASSEMBLY,STOP

€ 32.50

5746517C00
ref: 8

SCREW

€ 1.50

5721026D00
ref: 9

GRIP,L

€ 21.50

5762138B01
ref: 10

LEVER,CLUTCH

€ 50.00

5743138A10
ref: 11

BOLT,LEVER SET

€ 14.50

0831921068
ref: 12
08319-2106A

NUT 6MM

€ 2.00

3740038BD0
ref: 13
37400-38BD1

SWITCH ASSEMBLY,HANDLE,LEFT

€ 234.00

0211205167
ref: 14

SCREW

€ 2.50

3756038A00
ref: 15

SWITCH ASSY,CLUTCH

€ 20.00

0214203127
ref: 16

SCREW

€ 2.00

5870038B00
ref: 17
58700-38B02

LEVER ASSEMBLY,STARTER

€ 59.50

5721638A00
ref: 18

CAP,GRIP END

€ 6.50
