FUEL TANK (MODEL H/J)

VS1400GLP INTRUDER 1993 (P) USA (E03)

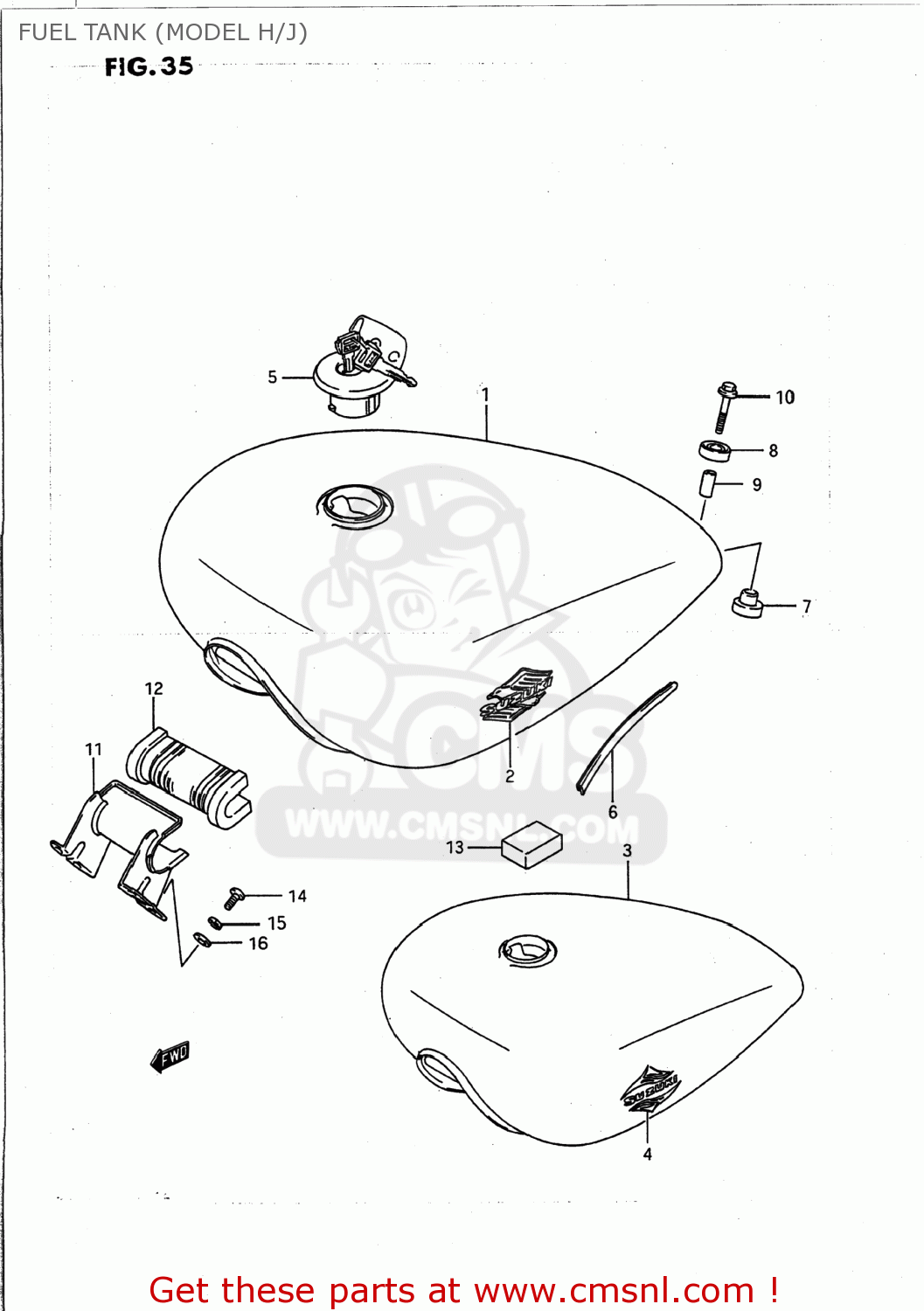

Fuel tank (model h/j) diagram VS1400GLP INTRUDER 1993 (P) USA (E03)

FUEL TANK (MODEL H/J) VS1400GLP INTRUDER 1993 (P) USA (E03)
FUEL TANK (MODEL H/J) VS1400GLP INTRUDER 1993 (P) USA (E03)
FUEL TANK (MODEL H/J) VS1400GLP INTRUDER 1993 (P) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4410038B0024V
ref: 1-1
44110-38B21-YD8
TANK ASSEMBLY,FUEL
€ 414.00
1-2
4410038B1024V
ref: 1-2
44110-38B13-YD8
(CA) TANK ASSEMBLY,FUEL
€ 432.50
1-3
4410038B0033D
ref: 1-3
44110-38B21-YD8
TANK ASSEMBLY,FUEL
€ 414.00
1-4
4410038B1033D
ref: 1-4
44110-38B13-YD8
(CA) TANK ASSEMBLY,FUEL
€ 432.50
1-5
4410038B0033J
ref: 1-5
44110-38B21-YD8
TANK ASSEMBLY,FUEL
€ 414.00
1-6
4410038B1033J
ref: 1-6
44110-38B13-YD8
(CA) TANK ASSEMBLY,FUEL
€ 432.50
2-1
6811138A0024W
ref: 2-1
EMBLEM,FUEL TANK
6811138A0024W
€ 20.00
2-2
6811138A0034G
ref: 2-2
68111-38A00-22Z
EMBLEM
€ 20.00
2-3
6811138A0034J
ref: 2-3
68111-38A00-23A
EMBLEM
€ 15.00
3-1
4410038B3024D
ref: 3-1
44110-38B21-YD8
TANK ASSEMBLY,FUEL
€ 414.00
3-2
4410038B5024D
ref: 3-2
44110-38B13-YD8
TANK,FUEL
€ 432.50
3-3
4410038B3033J
ref: 3-3
44100-38B40-33J
TANK ASSEMBLY,FUEL
€ 542.50
3-4
4410038B5033J
ref: 3-4
TANK,FUEL
€ 432.50
4-1
6811138A1038P
ref: 4-1
EMBLEM,FUEL TANK
6811138A1038P
€ 23.00
4-2
6811138A1038N
ref: 4-2
EMBLEM,FUEL TANK
€ 20.50
5-1
4420038A00KEY
ref: 5-1
44200-38820
CAP SET,FUEL TANK
4420038A00KEY
€ 107.50
5-2
4420024B11KEY
ref: 5-2
44200-24820
CAP ASSEMBLY,FUEL TANK
€ 150.50
5-3
4420038A80KEY
ref: 5-3
44200-38860
CAP SET,FUEL TANK
4420038A80KEY
€ 91.00
5-3
4420038A80KEY
ref: 5-3
44200-38860
CAP SET,FUEL TANK
4420038A80KEY
€ 91.00
5-4
4420038A90KEY
ref: 5-4
44200-38870
CAP SET,FUEL TANK
€ 136.50
5-4
4420038A90KEY
ref: 5-4
44200-38870
CAP SET,FUEL TANK
€ 136.50
6
6824140A10
ref: 6
68241-04X50-00B
MOLDING,FUEL TANK
€ 23.00
7
0932010020
ref: 7
CUSHION
0932010020
€ 4.00
8
0932014013
ref: 8
CUSHION
0932014013
€ 3.00
9
0918006190
ref: 9
09180-06274
SPACER
0918006190
€ 4.50
10
0155006353
ref: 10
01550-0635A
BOLT
0155006353
€ 2.50
11-1
4425038B0024V
ref: 11-1
44250-38B00-019
BRACKET COMP,FUEL TANK
€ 32.00
11-2
4425038B0033D
ref: 11-2
44250-38B00-019
BRACKET COMP,FUEL TANK
€ 32.00
11-3
4425038B0033J
ref: 11-3
44250-38B00-019
BRACKET COMP,FUEL TANK
4425038B0033J
€ 32.00
11-4
4425038B0024D
ref: 11-4
44250-38B00-019
BRACKET COMP,FUEL TANK
€ 32.00
12
4451138B01
ref: 12
CUSHION,FUEL TANK FR
4451138B01
€ 12.00
13
4451238B00
ref: 13
56314-48B10
CUSHION
4451238B00
€ 6.00
14
0214206164
ref: 14
02142-0616A
SCREW
0214206164
€ 2.50
15
0832121064
ref: 15
08321-0106A
WASHER,LOCK
0832121064
€ 2.00
16
0832221064
ref: 16
08322-0106B
WASHER
0832221064
€ 2.00
