CRANKCASE
VS1400GLP INTRUDER 1995 (S) USA (E03)

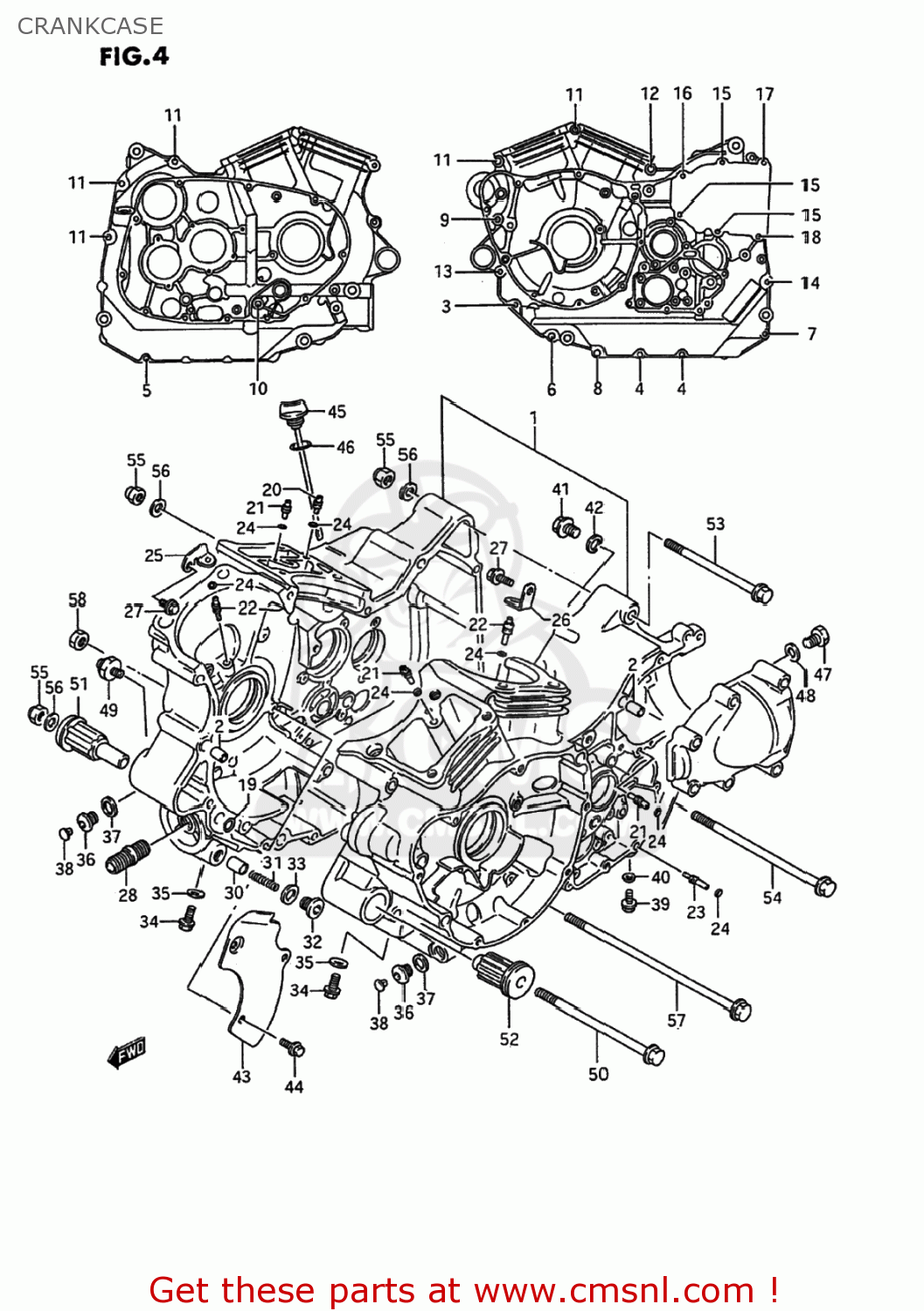

Crankcase diagram VS1400GLP INTRUDER 1995 (S) USA (E03)
CRANKCASE VS1400GLP INTRUDER 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130138812
ref: 1-1
11301-38816
CRANKCASE SET
€ 3,421.50
1-2
1130138813
ref: 1-2
11301-38816
CRANKCASE SET
€ 3,421.50
1-3
1130138815
ref: 1-3
11301-38816
CRANKCASE SET
€ 3,421.50
2
0920611005
ref: 2
09206-11017
PIN (11X20)(SUS)
€ 6.50
3
0155006557
ref: 3
BOLT
€ 2.50
4
0155006657
ref: 4
BOLT
€ 3.00
5
0155006857
ref: 5
BOLT
€ 3.50
6
0155008557
ref: 6
BOLT
€ 3.00
7
0155008657
ref: 7
BOLT
€ 3.00
8
0155008707
ref: 8
BOLT
€ 2.00
9
0155008907
ref: 9
BOLT
€ 3.50
10
0910308098
ref: 10
BOLT(8X115)
€ 3.00
11
0910308164
ref: 11
BOLT(8X95)
€ 3.50
12
0910308214
ref: 12
BOLT(8X50)
€ 4.50
13
0910308215
ref: 13
BOLT(8X70)
€ 3.50
14
0910308216
ref: 14
BOLT(8X80)
€ 4.50
15
0155008407
ref: 15
BOLT
€ 3.50
16
0155008507
ref: 16
BOLT
€ 3.50
17
0155008557
ref: 17
BOLT
€ 3.00
18
0155008657
ref: 18
BOLT
€ 3.00
19
0928012009
ref: 19
O RING(D:1.9,ID:12.6)
€ 2.50
20
0949344002
ref: 20
JET(2.2)
€ 12.00
21
0949328010
ref: 21
JET,AIR(14)
€ 10.50
22
0949380009
ref: 22
JET,PISTON COOLING(0.8)
€ 14.00
23
0949324011
ref: 23
JET,MISSION OIL(1.4)
€ 9.00
24
0928004004
ref: 24
O RING(D:1.2,ID:4)
€ 2.00
25
1643838B00
ref: 25
PLATE,PISTON JET FR
€ 1.50
26
1643938B00
ref: 26
PLATE,PISTON JET RR
€ 2.00
27-1
0151706108
ref: 27-1
01550-06107
BOLT
€ 2.50
27-2
0155006103
ref: 27-2
01550-0610A
BOLT
€ 2.50
28
1659106B00
ref: 28
16591-06B01
UNION,OIL STAND
€ 6.00
29-1
1222838B000A0
ref: 29-1
PLATE,CRANK THRUST
€ 18.50
29-1
1222838B000A0
ref: 29-1
PLATE,CRANK THRUST
€ 18.50
29-10
1222838B000J0
ref: 29-10
PLATE,CRANK THRUST
€ 15.50
29-2
1222838B000B0
ref: 29-2
PLATE,CRANK THRUST
€ 15.50
29-3
1222838B000C0
ref: 29-3
PLATE,CRANK THRUST
€ 16.00
29-4
1222838B000D0
ref: 29-4
PLATE,CRANK THRUST
€ 17.50
29-5
1222838B000E0
ref: 29-5
PLATE,CRANK THRUST
€ 15.00
29-6
1222838B000F0
ref: 29-6
PLATE,CRANK THRUST
€ 24.50
29-7
1222838B000G0
ref: 29-7
PLATE,CRANK THRUST
€ 15.50
29-8
1222838B000H0
ref: 29-8
PLATE,CRANK THRUST
€ 15.50
29-9
1222838B000I0
ref: 29-9
PLATE,CRANK THRUST
€ 15.50
29-9
1222838B000I0
ref: 29-9
PLATE,CRANK THRUST
€ 15.50
30
1644234301
ref: 30
PLUNGER,OIL CONTROLL
€ 16.00
31
0944009030
ref: 31
SPRING
€ 3.00
32
0924816008
ref: 32
PLUG
€ 4.00
33
0916816002
ref: 33
GASKET(16X22X2) (NAS)
€ 2.00
34
0155008127
ref: 34
BOLT
€ 3.50
35
0916808015
ref: 35
GASKET(8.2X14X1).6 (NAS)
€ 2.50
36
0924814005
ref: 36
PLUG,14X12
€ 5.00
37-1
0916814004
ref: 37-1
GASKET(14X19.2X2) (NAS)
€ 2.50
37-2
0916814002
ref: 37-2
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
38
0925008014
ref: 38
CAP(OD:12)
€ 3.50
39
0155006107
ref: 39
BOLT
€ 2.50
40-1
0916806023
ref: 40-1
GASKET(5.8X13X1.2) (NAS)
€ 2.00
40-2
0916806024
ref: 40-2
GASKET(5.8X11X1.2) (NAS)
€ 2.00
41
0924712006
ref: 41
PLUG(12X10)
€ 2.50
42
0916812002
ref: 42
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
43
1152138B01
ref: 43
PLATE,OIL SEPARATOR
€ 4.00
44-1
0154706127
ref: 44-1
BOLT
€ 2.00
44-2
0154706123
ref: 44-2
01547-0612B
BOLT
€ 2.00
45
1197038B01
ref: 45
GAUGE,OIL LEVEL
€ 17.50
46
0928017003
ref: 46
O RING(D:3.1,ID:16.8)
€ 2.00
47
0155012207
ref: 47
BOLT
€ 3.00
48
0916812002
ref: 48
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
49-1
3782033200
ref: 49-1
37820-33D10
SWITCH ASSEMBLY
€ 29.00
49-2
3782033D00
ref: 49-2
37820-33D10
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
50
0910310169
ref: 50
BOLT(10X155)
€ 16.00
51
1166038B00
ref: 51
BUSH,ENGINE MOUNTING,R
€ 33.00
52
1166038A00
ref: 52
BUSH,ENGINE MOUNTING
€ 29.00
53
0910310168
ref: 53
BOLT(10X135)
€ 10.50
54
0910310170
ref: 54
BOLT(10X180)
€ 13.00
55
0915910064
ref: 55
NUT
€ 8.50
56
0832201107
ref: 56
WASHER
€ 2.50
57
0910310205
ref: 57
BOLT(10X225)
€ 9.50
58
0915910047
ref: 58
NUT
€ 7.50
