DECOMP SHAFT
VS1400GLP INTRUDER 1995 (S) USA (E03)

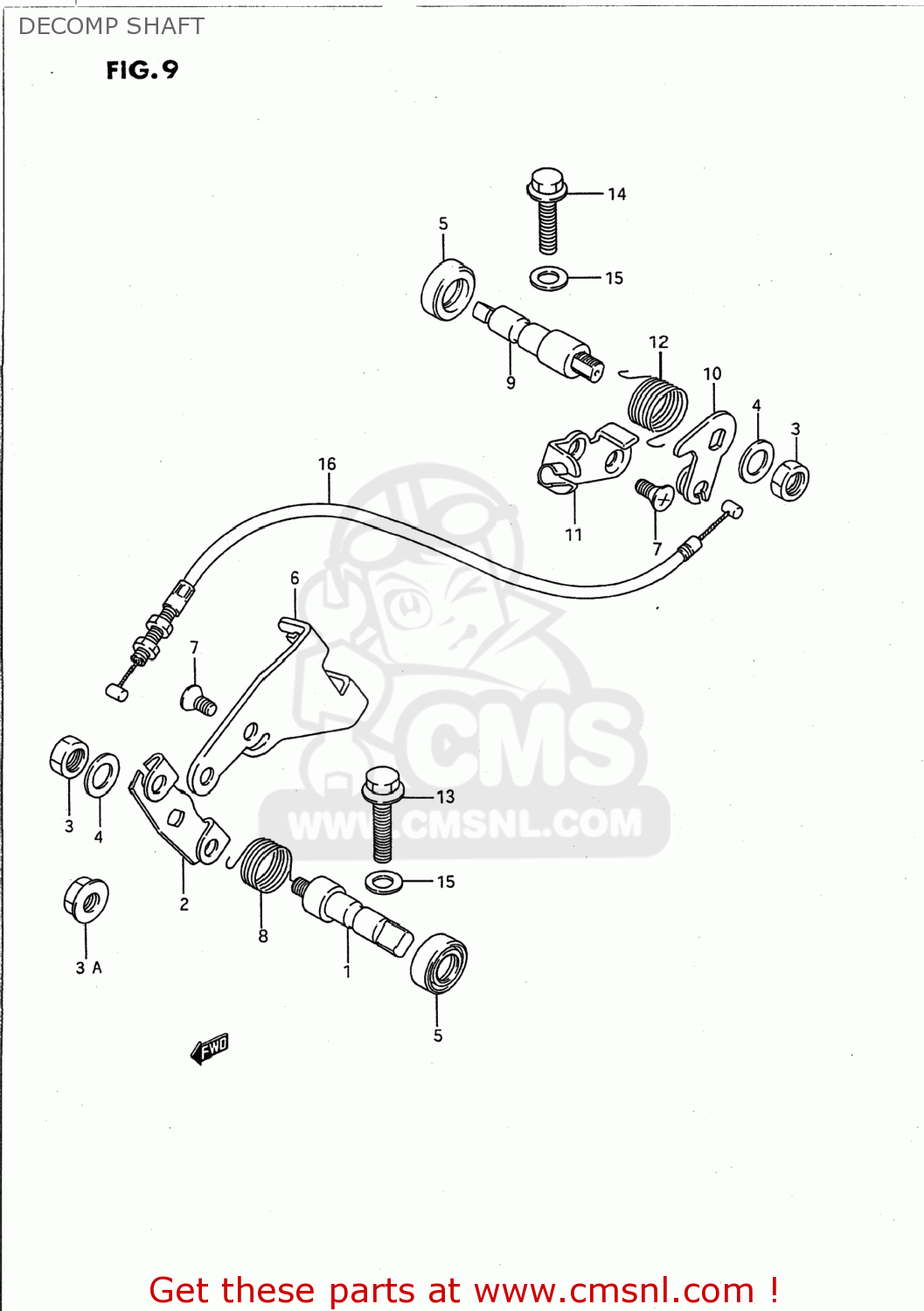

Decomp shaft diagram VS1400GLP INTRUDER 1995 (S) USA (E03)
DECOMP SHAFT VS1400GLP INTRUDER 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1293938B00
ref: 1
SHAFT,DECOMP FR
€ 39.50
2
1294238B03
ref: 2
LEVER,DECOMP SHAFT FR
€ 4.00
3A
0831610087
ref: 3A
NUT
€ 2.50
3-1
0831022085
ref: 3-1
09140-08021
NUT 8MM
€ 2.00
3-2
0831000087
ref: 3-2
NUT
€ 2.00
4-1
0832211084
ref: 4-1
08322-0108A
WASHER
€ 1.50
4-2
0832201087
ref: 4-2
WASHER
€ 2.00
5
0928210012
ref: 5
SEAL,OIL(10X20X6)
€ 7.50
6
1294438B02
ref: 6
HOLDER,DECOMP CABLE FR
€ 6.50
7-1
0912605006
ref: 7-1
SCREW(5X10)
€ 2.00
7-2
0212205107
ref: 7-2
SCREW
€ 1.00
8
0944817029
ref: 8
09448-17029-XC0
SPRING
€ 6.50
9
1294138B00
ref: 9
SHAFT,DECOMP RR
€ 32.50
10
1295238B01
ref: 10
LEVER,DECOMP SHAFT RR
€ 3.00
11
1295038B00
ref: 11
HOLDER,DECOMP CABLE RR
€ 10.50
12
0944817023
ref: 12
SPRING
€ 4.00
13
0155006307
ref: 13
BOLT
€ 2.00
14
0155006257
ref: 14
BOLT
€ 2.50
15
0916806023
ref: 15
GASKET(5.8X13X1.2) (NAS)
€ 2.00
16-1
5891038B01
ref: 16-1
58910-38B20
CABLE ASSEMBLY,DECOMPRESSION
€ 54.50
16-2
5891038B10
ref: 16-2
58910-38B20
CABLE ASSEMBLY,DECOMPRESSION,REAR
€ 54.50
