FRONT WHEEL
VS1400GLP INTRUDER 1995 (S) USA (E03)

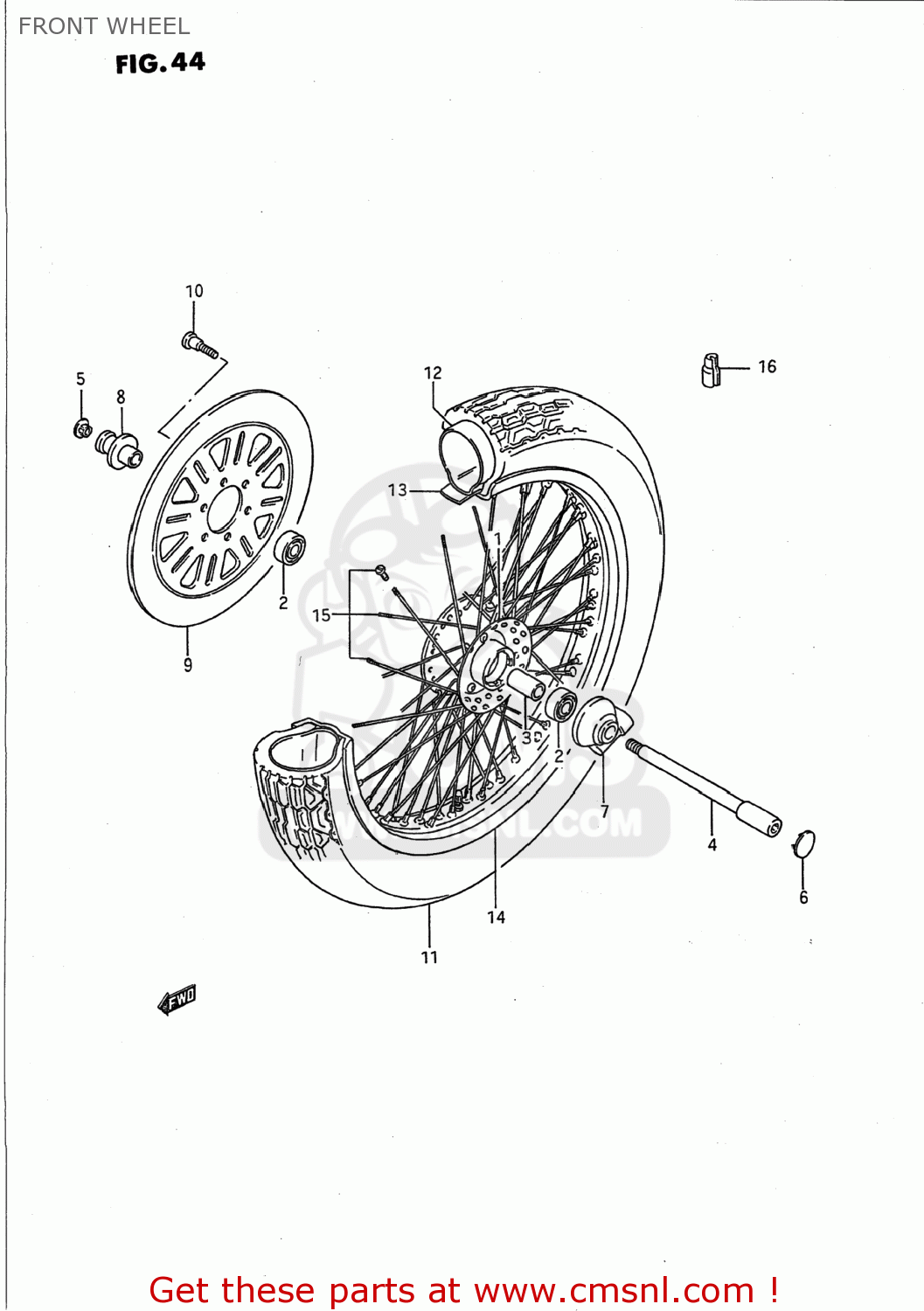

Front wheel diagram VS1400GLP INTRUDER 1995 (S) USA (E03)
FRONT WHEEL VS1400GLP INTRUDER 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5411038B00
ref: 1
HUB ASSY,FR
€ 323.50
2
0812363027
ref: 2
BEARING
€ 19.00
3
0918015004
ref: 3
SPACER(15.3X21.7X65)
€ 9.00
4
5471138B02
ref: 4
AXLE,FR
€ 60.50
5
5479138B01
ref: 5
CAP,FR AXLE
€ 4.50
6
5479238B00
ref: 6
CAP,FR AXLE
€ 97.00
7-1
5460038B01
ref: 7-1
54600-38A11
BOX ASSEMBLY,SPEEDOMETER GEAR
€ 124.50
7-2
5460038A11
ref: 7-2
BOX ASSY,SPEEDOMETER
€ 124.50
8
5475038B00
ref: 8
SPACER,FR AXLE
€ 25.50
9
5921138B00
ref: 9
DISC,FR BRAKE
€ 232.50
10-1
0910608062
ref: 10-1
09106-08148
BOLT
€ 6.00
10-2
0910608125
ref: 10-2
09106-08148
BOLT 8X33
€ 6.00
11
5510038B00
ref: 11
TIRE COMP,FRONT 110/90-19
€ 0.00
12
5520044610
ref: 12
TUBE
€ 41.00
13
5526115010
ref: 13
PROTECTOR,WHL INR TUBE
€ 2.50
14
5531138B02
ref: 14
55311-38B03
RIM,FRONT WHEEL (2.15X1
€ 481.50
15
5532038B00
ref: 15
SPOKE SET,FR WHEEL
€ 176.50
16-1
5541238A00
ref: 16-1
55412-41F00
BALANCER,WHEEL
€ 6.50
16-2
5541338A00
ref: 16-2
55413-41F00
BALANCER,WHEEL (30G)
€ 8.00
