Buy Suzuki VS Parts Online


FRAME HANDLE GRIP

VS1400GLP INTRUDER 2000 (Y) USA (E03)

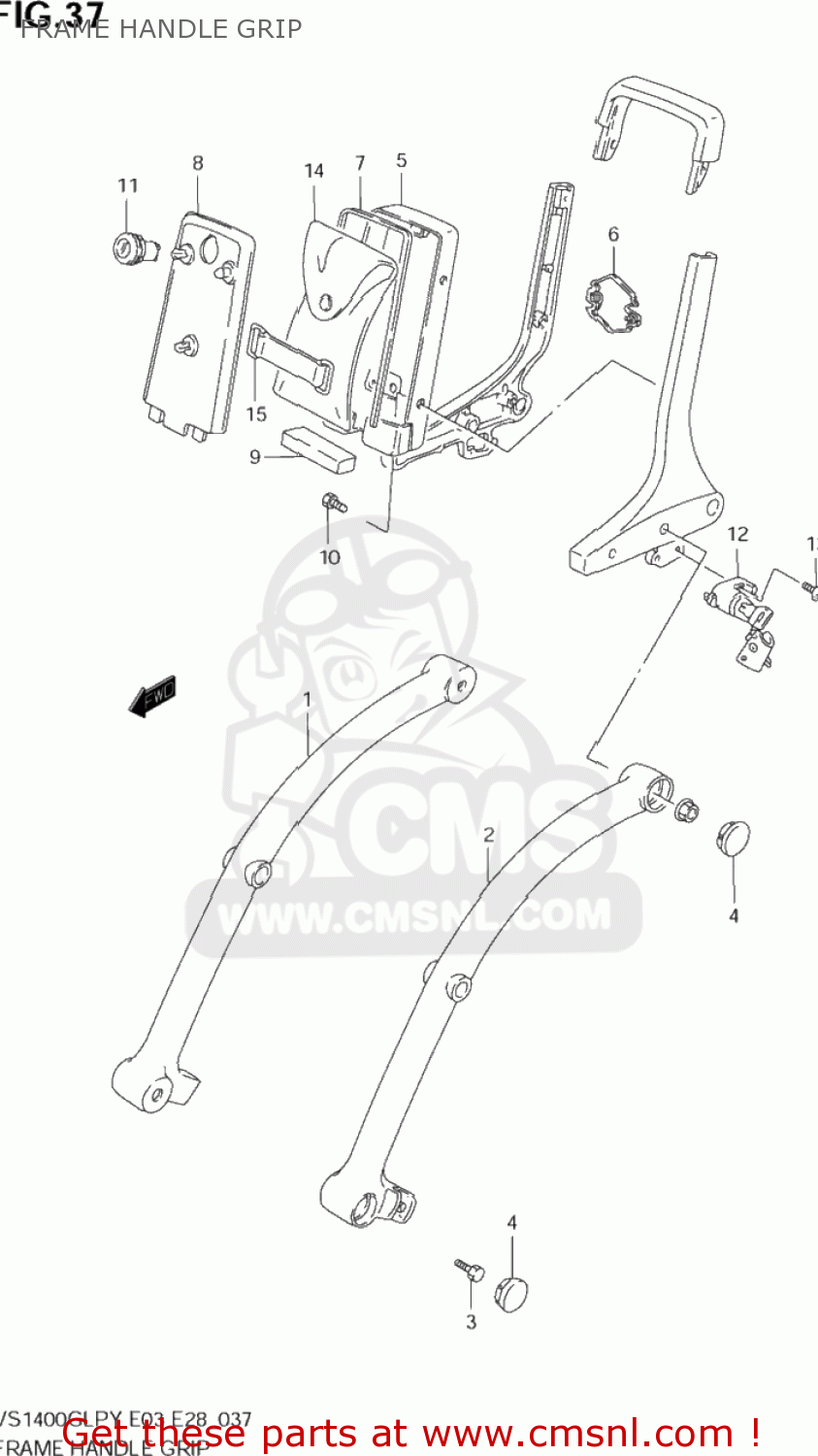

Frame handle grip diagram VS1400GLP INTRUDER 2000 (Y) USA (E03)

FRAME HANDLE GRIP VS1400GLP INTRUDER 2000 (Y) USA (E03)
FRAME HANDLE GRIP VS1400GLP INTRUDER 2000 (Y) USA (E03)
FRAME HANDLE GRIP VS1400GLP INTRUDER 2000 (Y) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4161038B00
ref: 1
41610-38B10
GRIP COMP,FRAME HANDLE
4161038B00
€ 292.50
2
4162038B00
ref: 2
41620-38B10
GRIP COMP,FRAME HANDLE
4162038B00
€ 296.00
3
0158008203
ref: 3
01580-0820A
BOLT
0158008203
€ 3.50
4
9567324A00
ref: 4
CAP,PIPE CO-RIDER GRIP
9567324A00
€ 5.00
5-1
4743038B0222S
ref: 5-1
47430-38B11-22S
HOLDER,TOOL,REAR
4743038B0222S
€ 60.50
5-2
4743038B1122S
ref: 5-2
HOLDER,TOOL RR
4743038B1122S
€ 60.50
6
6826138A30
ref: 6
EMBLEM,TOOL HOLDER RR
6826138A30
€ 31.00
7
4743738B00
ref: 7
MOLDING,TOOL HOLDER RR
4743738B00
€ 5.00
8
4744138B00
ref: 8
HOLDER,TOOL FR
4744138B00
€ 15.00
9
4743838B00
ref: 9
CUSHION,TOOL BACK
4743838B00
€ 19.50
10
0155006123
ref: 10
01550-0612A
BOLT
0155006123
€ 2.50
11
9570024831
ref: 11
LOCK SET,TOOL HOLDER
9570024831
€ 79.50
12
9570038821
ref: 12
LOCK SET,HELMET
9570038821
€ 54.00
13
0211205127
ref: 13
SCREW
0211205127
€ 2.50
14
0980021014
ref: 14
TOOL ASSY
0980021014
€ 92.50
15
0946200008
ref: 15
BAND
0946200008
€ 4.50
16
4630038822
ref: 16
CARRIER SET,SPORT
4630038822
€ 240.50
16
4630038822
ref: 16
CARRIER SET,SPORT
4630038822
€ 240.50
