SECONDARY DRIVE GEAR

VS1400GLP INTRUDER 2000 (Y) USA (E03)

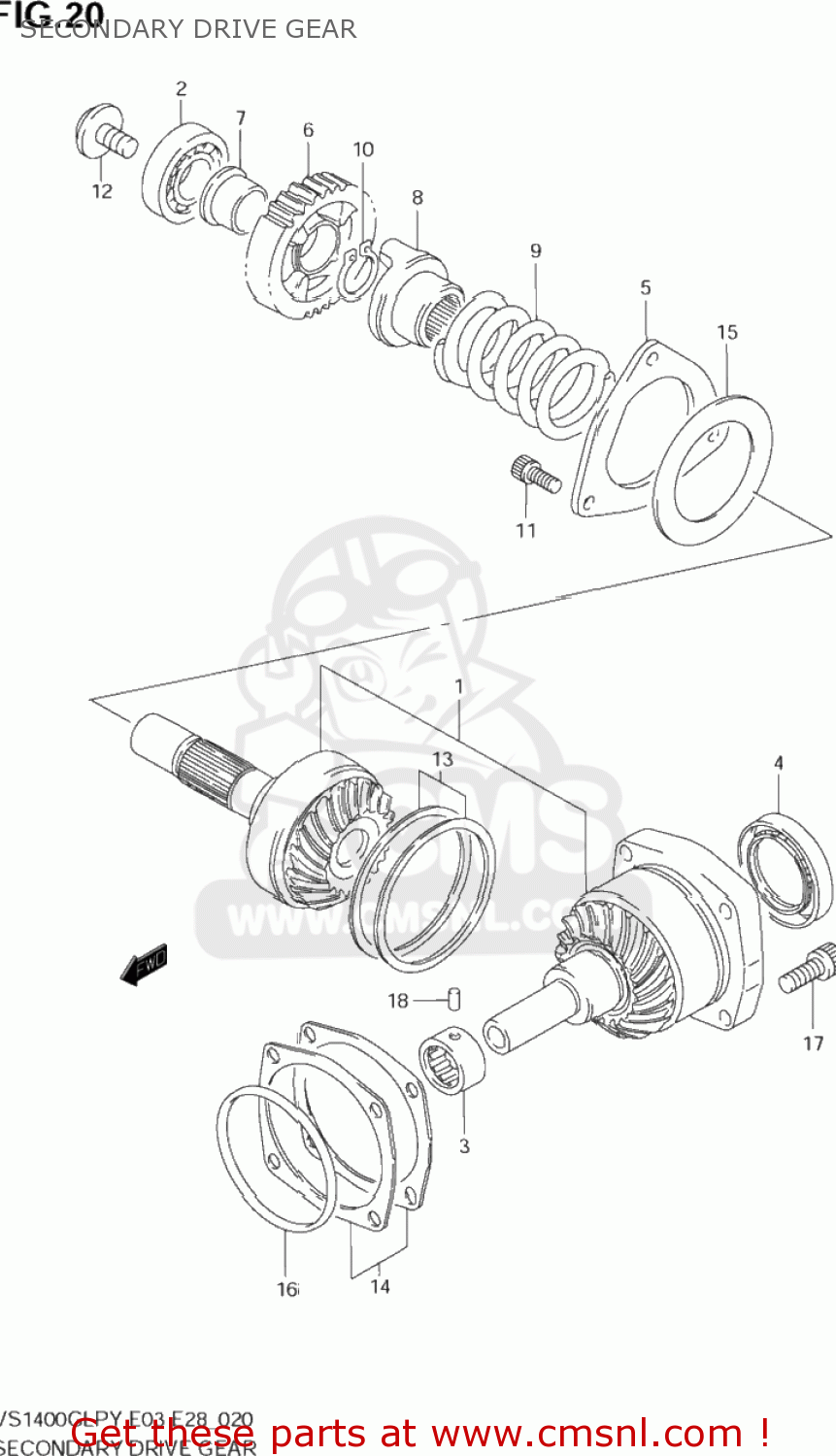

Secondary drive gear diagram VS1400GLP INTRUDER 2000 (Y) USA (E03)

SECONDARY DRIVE GEAR VS1400GLP INTRUDER 2000 (Y) USA (E03)

SECONDARY DRIVE GEAR VS1400GLP INTRUDER 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

2490038830
ref: 1

GEAR & HOUSING SET,SECONDARY

€ 1,064.50

2

0926225080
ref: 2

BEARING(25X62X17)

€ 21.50

3

0926320038
ref: 3

BEARING(20X34X16)

€ 30.50

4

0928344010
ref: 4

SEAL,OIL(44X68X8)

€ 51.00

5

2493138B00
ref: 5

STOPPER,SEC DRIVE BEARING

€ 39.00

6

2463138B00
ref: 6

GEAR,OVER DRIVING DRIVEN

€ 183.50

7-1

2463238B00
ref: 7-1
24632-38B01

BUSHING,ODOMETER DRIVEN GEAR

€ 24.50

7-2

2463238B01
ref: 7-2

BUSHING,OD DRIVEN GEAR

€ 24.50

8-1

2492238B00
ref: 8-1
24922-38B01

DOG,OUTPUT CAM

€ 43.50

8-2

2492238B01
ref: 8-2

DOG,OUTPUT CAM

€ 43.50

9

0944057001
ref: 9

SPRING

€ 49.50

10

0833131266
ref: 10

CIRCLIP

€ 2.50

11

0713008203
ref: 11
07130-0820B

BOLT

€ 3.00

12

0910314005
ref: 12

BOLT(14X21)

€ 17.00

13

2493538820
ref: 13

SHIM SET,SEC DRIVE

€ 95.00

13

2493538820
ref: 13

SHIM SET,SEC DRIVE

€ 95.00

14

2494538810
ref: 14

SHIM SET,SEC DRIVEN

€ 33.00

15

0916057001
ref: 15

WASHER(57X90X3)

€ 17.00

16

0928078003
ref: 16

O RING(D:3.7,ID:76.5)

€ 6.00

17

0713008253
ref: 17
07130-0825B

BOLT

€ 3.50

18

0422107129
ref: 18

PIN

€ 1.50
