OIL COOLER

VS1400GLP INTRUDER 2000 (Y) USA (E03)

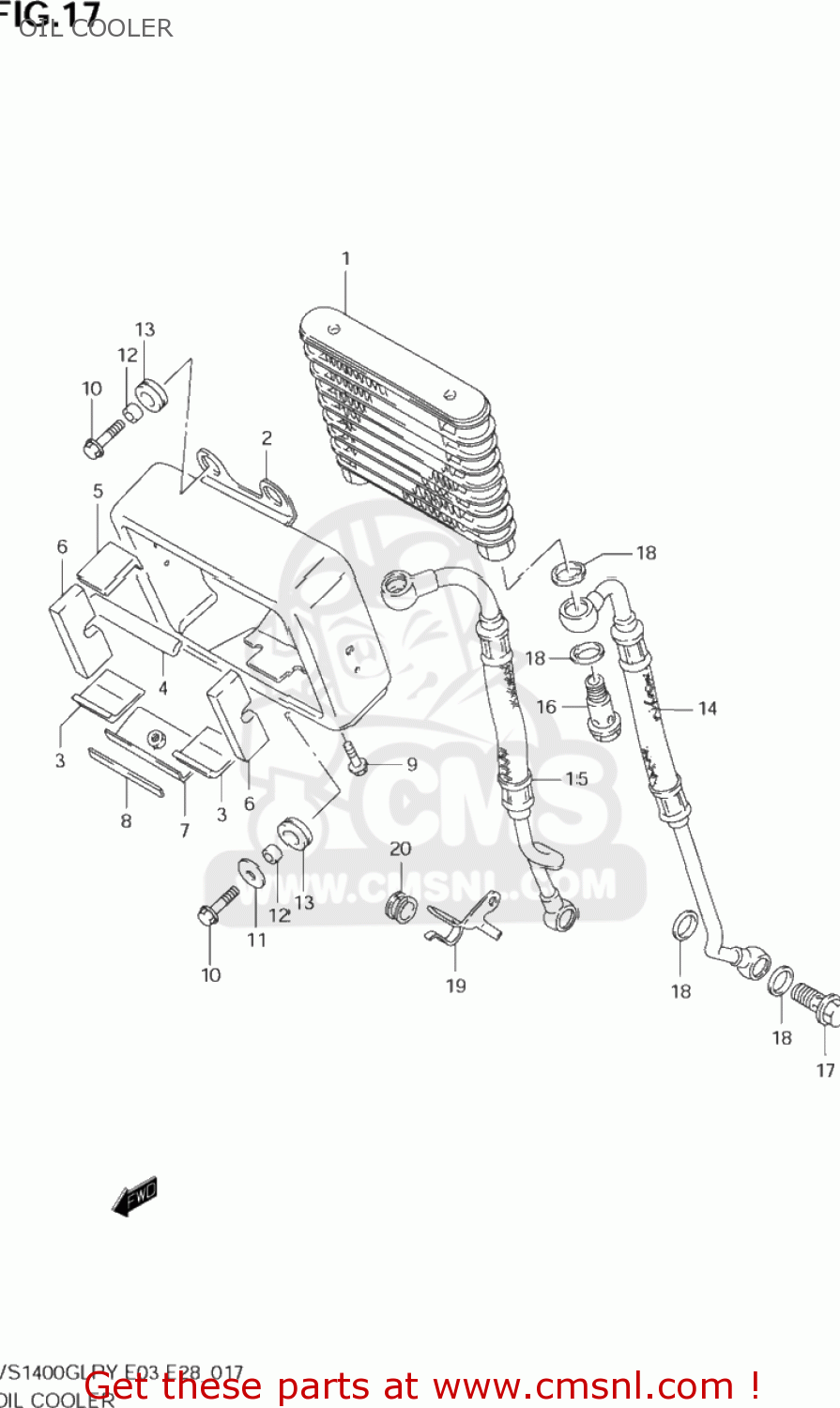

Oil cooler diagram VS1400GLP INTRUDER 2000 (Y) USA (E03)

OIL COOLER VS1400GLP INTRUDER 2000 (Y) USA (E03)

OIL COOLER VS1400GLP INTRUDER 2000 (Y) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1660038B00
ref: 1

COOLER ASSY,OIL

€ 791.50

2

1662038B01
ref: 2

COVER,OIL COOLER

€ 302.50

3

1662638B01
ref: 3

CUSHION,COOLER COVER LWR

€ 11.00

4

1662738B01
ref: 4

CUSHION,CLLOER COVER UPR NO2

€ 3.50

5

1662838B00
ref: 5

CUSHION,COOLER COVER UPR NO1

€ 2.50

6

1662938B01
ref: 6

CUSHION,COOLER COVER SIDE

€ 10.00

7

1663038B00
ref: 7

BRACKET,OIL COOLER

€ 3.00

8

1663938B00
ref: 8

CUSHION,OIL COOLER BRACKET

€ 3.50

9-1

0154706107
ref: 9-1

BOLT

€ 1.50

9-2

0154706103
ref: 9-2
01547-0610B

BOLT

€ 3.00

10-1

0154706257
ref: 10-1

BOLT

€ 2.50

10-2

0154706253
ref: 10-2
01547-0625B

SCREW

€ 2.50

11

0916006066
ref: 11

WASHER(6.5X20X1.6)

€ 2.00

12-1

0918006030
ref: 12-1
09180-06310

SPACER (6.8X10X10)

€ 2.00

12-2

0918006310
ref: 12-2

SPACER(6.5X10X10)

€ 2.00

13

0932010015
ref: 13

CUSHION

€ 2.50

14

1646038B01
ref: 14

HOSE,OIL COOLER,L

€ 197.50

15

1647038B01
ref: 15

HOSE,OIL COOLER,R

€ 199.50

16

0936012006
ref: 16

BOLT UNION

€ 13.50

17

0936014009
ref: 17

BOLT UNION

€ 9.50

18

0916814011
ref: 18

GASKET(14X20X1.5) (NAS)

€ 2.00

19

1647938B00
ref: 19

CLAMP,OIL COOLER HOSE,R

€ 8.00

20-1

0932010039
ref: 20-1
09320-10008

CUSHION

€ 2.50

20-2

0932010008
ref: 20-2

CUSHION

€ 2.50
