AIR CLEANER (FRONT)

VS1400GLP INTRUDER 2002 (K2) USA (E03)

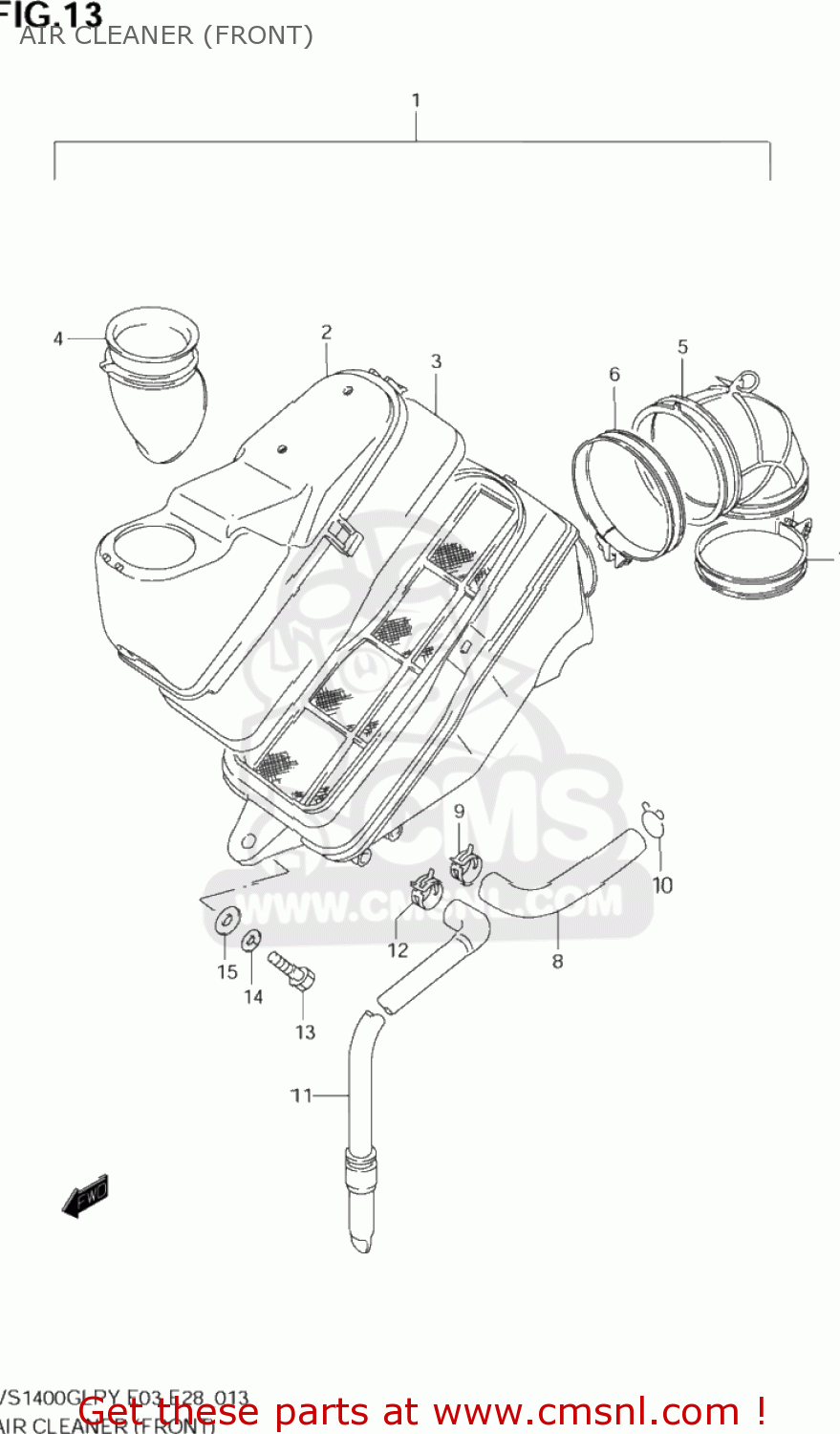

Air cleaner (front) diagram VS1400GLP INTRUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1370038B20
ref: 1

CLEANER ASSY,AIR FR

€ 201.50

1374038B01
ref: 2

CAP,AIR CLEANER FR

€ 27.00

1378138B10
ref: 3

FILTER,AIR FR

€ 11.00

1389138B00
ref: 4

TUBE,INLET

€ 16.50

1388138B00
ref: 5

TUBE,AIR CLEANER OUTLET

€ 25.50

0940272207
ref: 6
09402-72203

CLAMP

€ 7.50

0940258208
ref: 7

CLAMP

€ 5.50

1385438B00
ref: 8

TUBE,BREATHER

€ 16.50

0940115407
ref: 9

CLIP

€ 1.50

0940114301
ref: 10

CLIP

€ 2.00

1387021628
ref: 11

TUBE,DRAIN

€ 23.50

12-1

0940113413
ref: 12-1
09401-13417

CLIP

€ 2.50

12-2

0940113417
ref: 12-2

CLIP

€ 2.50

0150006207
ref: 13

BOLT

€ 2.00

0832101067
ref: 14

WASHER,LOCK

€ 2.50

0916006019
ref: 15

WASHER(6.5X16X1.2)

€ 1.50
