FRAME (MODEL T)

VS1400GLP INTRUDER 2002 (K2) USA (E03)

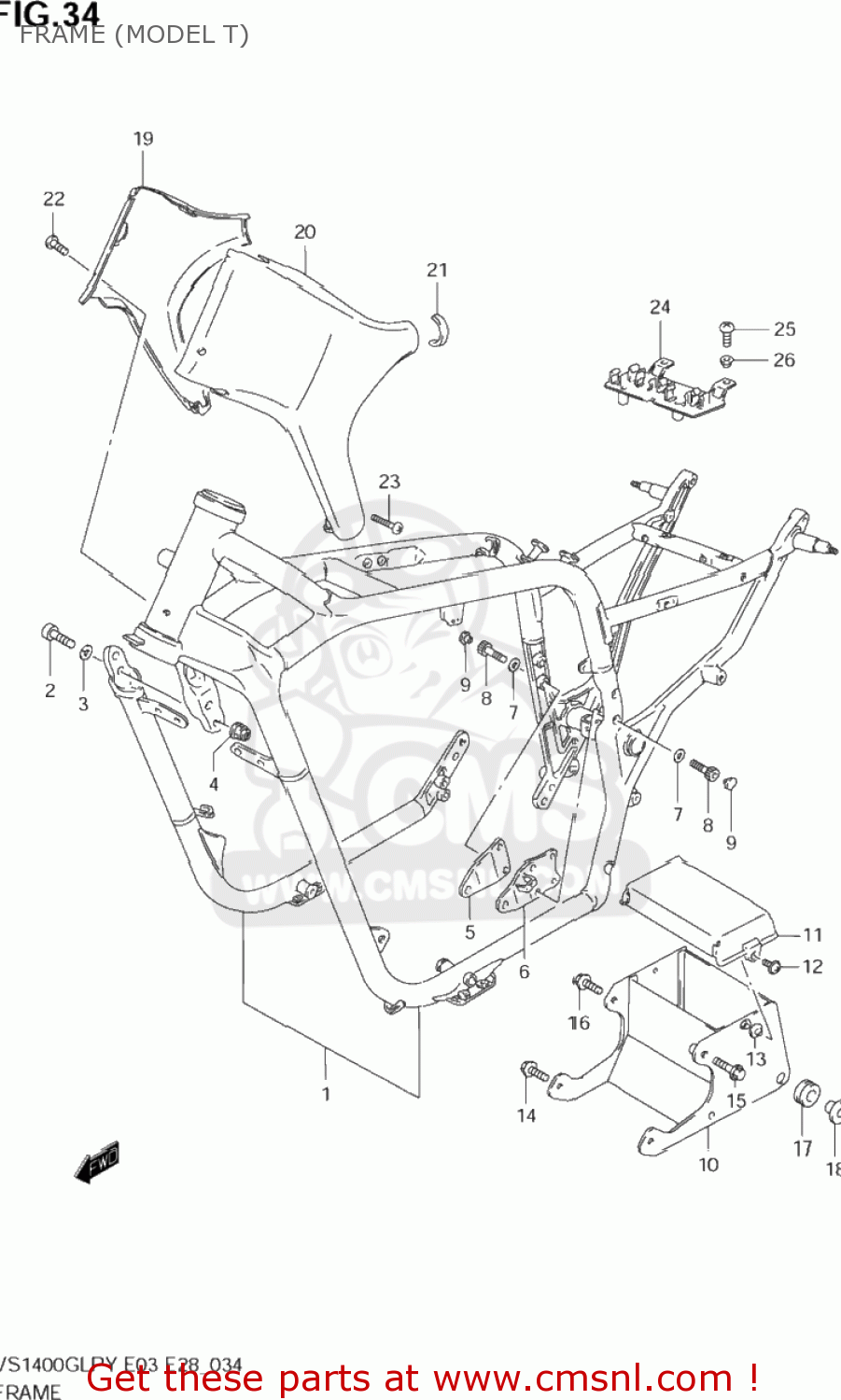

Frame (model t) diagram VS1400GLP INTRUDER 2002 (K2) USA (E03)

FRAME (MODEL T) VS1400GLP INTRUDER 2002 (K2) USA (E03)
FRAME (MODEL T) VS1400GLP INTRUDER 2002 (K2) USA (E03)
FRAME (MODEL T) VS1400GLP INTRUDER 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
411013882233J
ref: 1-1
FRAME SET
€ 1,654.00
1-2
41101388221ZV
ref: 1-2
41101-38822-33J
FRAME SET
€ 1,654.00
2
0910610019
ref: 2
BOLT(10X33)
0910610019
€ 4.00
3
0916410005
ref: 3
09164-10010
WASHER
0916410005
€ 6.50
4
0831931103
ref: 4
08319-3110A
NUT
0831931103
€ 3.00
5-1
4195138B0033J
ref: 5-1
PLATE,ENG MTG NO.4,R
€ 9.50
5-2
4195138B001ZV
ref: 5-2
PLATE,ENGINE MOUNTING NO
€ 9.50
6-1
4196038B0033J
ref: 6-1
PLATE,ENGINE MOUNT NO.4,L
4196038B0033J
€ 23.00
6-2
4196038B001ZV
ref: 6-2
PLATE,ENGINE MOUNT NO.4,L
€ 27.50
7
0916408015
ref: 7
WASHER
0916408015
€ 3.00
8
0910608072
ref: 8
BOLT(8X32)
0910608072
€ 5.00
9
0925006004
ref: 9
CAP(OD:14.5)
0925006004
€ 1.50
10
4154038B00
ref: 10
41540-38B02
HOLDER COMP,BATTERY
€ 97.00
11
3365838B00
ref: 11
COVER,BATTERY
3365838B00
€ 12.00
12
0913805012
ref: 12
SCREW(5X12)
0913805012
€ 2.50
13
0916905014
ref: 13
WASHER
0916905014
€ 10.00
14
0155006163
ref: 14
01550-0616A
BOLT
0155006163
€ 2.50
15
0155008203
ref: 15
01550-0820A
BOLT
0155008203
€ 3.00
16
0910308222
ref: 16
BOLT(8X40)
0910308222
€ 3.00
17
0932012042
ref: 17
CUSHION
0932012042
€ 4.00
18
0930108009
ref: 18
BUSH
0930108009
€ 6.50
19-1
4735038B0133J
ref: 19-1
COVER,FRAME HEAD,R(BLACK)
€ 137.00
19-2
4735038B011ZV
ref: 19-2
COVER,FRAME HEAD,R
€ 137.00
20-1
4736038B1133J
ref: 20-1
47360-38B11-YAY
COVER,FRM.HD.,
€ 119.00
20-2
4736038B111ZV
ref: 20-2
COVER COMP,FRAME HEAD
€ 119.00
21
4735938B00
ref: 21
PROTECTOR,FRAME HEAD COVER
4735938B00
€ 2.00
22
0214206103
ref: 22
02142-0610A
SCREW 6X10
0214206103
€ 2.00
23
0211204253
ref: 23
02112-0425B
SCREW
0211204253
€ 2.00
24
4741138B02
ref: 24
HOLDER,COUPLER
4741138B02
€ 11.50
25
0214206163
ref: 25
02142-0616A
SCREW
0214206163
€ 2.50
26
0916906010
ref: 26
WASHER
0916906010
€ 3.00
