FRONT FENDER (MODEL V/W/X)

VS1400GLP INTRUDER 2002 (K2) USA (E03)

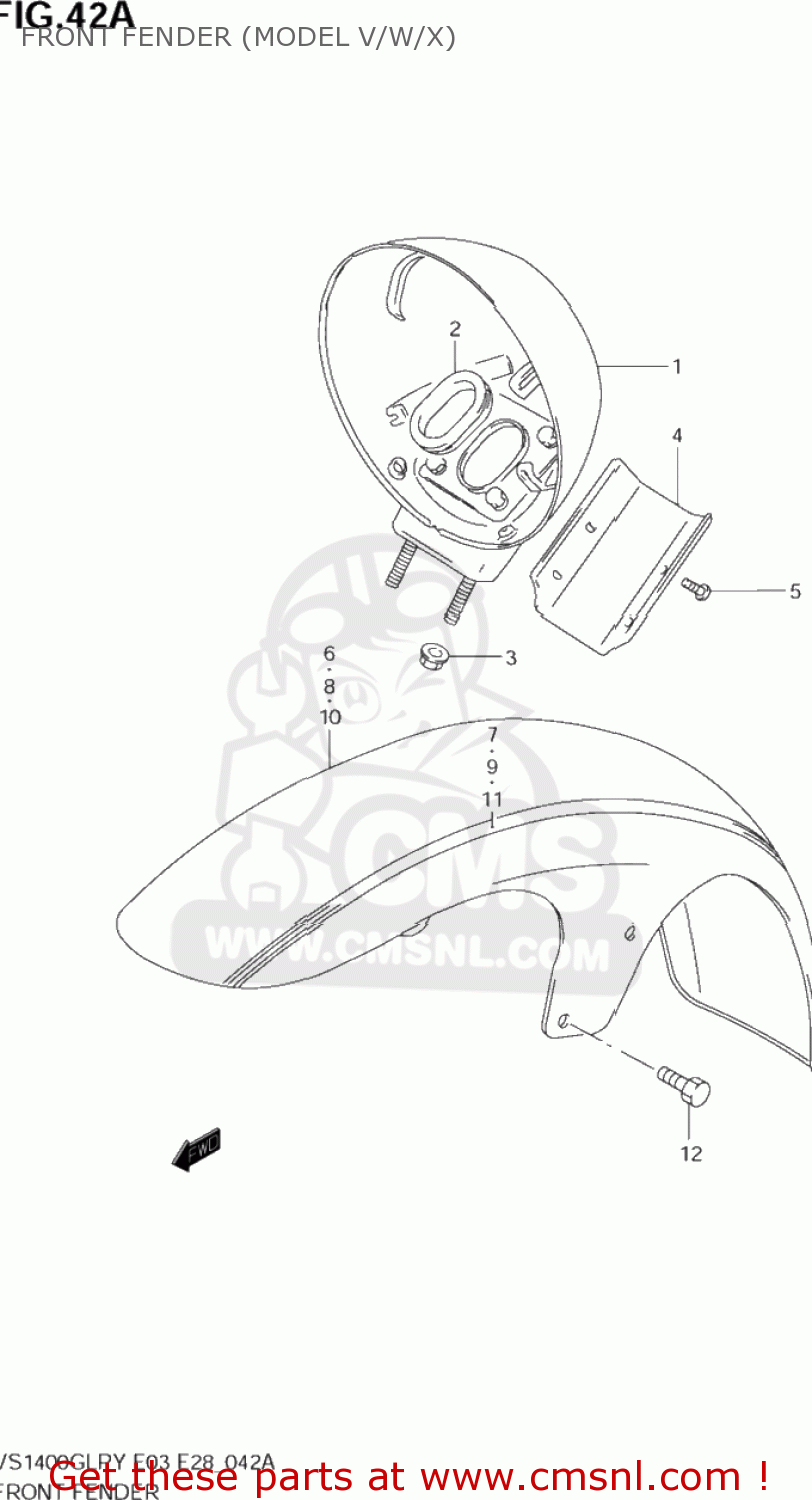

Front fender (model v/w/x) diagram VS1400GLP INTRUDER 2002 (K2) USA (E03)

FRONT FENDER (MODEL V/W/X) VS1400GLP INTRUDER 2002 (K2) USA (E03)

FRONT FENDER (MODEL V/W/X) VS1400GLP INTRUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5181038B00
ref: 1

HOUSING,HEADLAMP

€ 136.50

2

5181938B00
ref: 2

GROMMET

€ 6.50

3

0831931063
ref: 3
08319-3106A

NUT

€ 2.50

4

5181538B00
ref: 4

COVER,HEADLAMP HSG

€ 9.50

5

0214204107
ref: 5

SCREW

€ 1.50

6-1

5310038B00E6L
ref: 6-1

FENDER ASSY,FR

€ 294.00

6-2

5310038B00G2F
ref: 6-2

FENDER ASSEMBLY,FRONT

€ 277.00

6-3

5310038B00G2P
ref: 6-3

FENDER ASSEMBLY,FRONT

€ 341.50

7-1

6815038B01G2V
ref: 7-1

TAPE SET,FRONT FENDER

€ 53.50

7-2

6815038B01G2F
ref: 7-2

TAPE SET,FRONT FENDER

€ 48.50

7-3

6815038B01J5S
ref: 7-3

TAPE SET,FR FENDER STRIPING

€ 49.00

8

5310038B10G2E
ref: 8
53100-38820-G2E

FENDER ASSEMBLY,FRONT

€ 341.50

9

6815038B11G2W
ref: 9

TAPE SET,FRONT FENDER

€ 50.50

10-1

5310038B00E88
ref: 10-1

FENDER ASSEMBLY,FRONT

€ 262.00

10-2

5310038B00G2P
ref: 10-2

FENDER ASSEMBLY,FRONT

€ 341.50

11-1

6815038B01L3U
ref: 11-1

TAPE SET,FR FENDER STRIPING

€ 49.00

11-2

6815038B01J5S
ref: 11-2

TAPE SET,FR FENDER STRIPING

€ 49.00

12

0157006163
ref: 12
01570-0616A

BOLT

€ 2.50
