ELECTRICAL

VS700GLP INTRUDER 1987 (H) USA (E03)

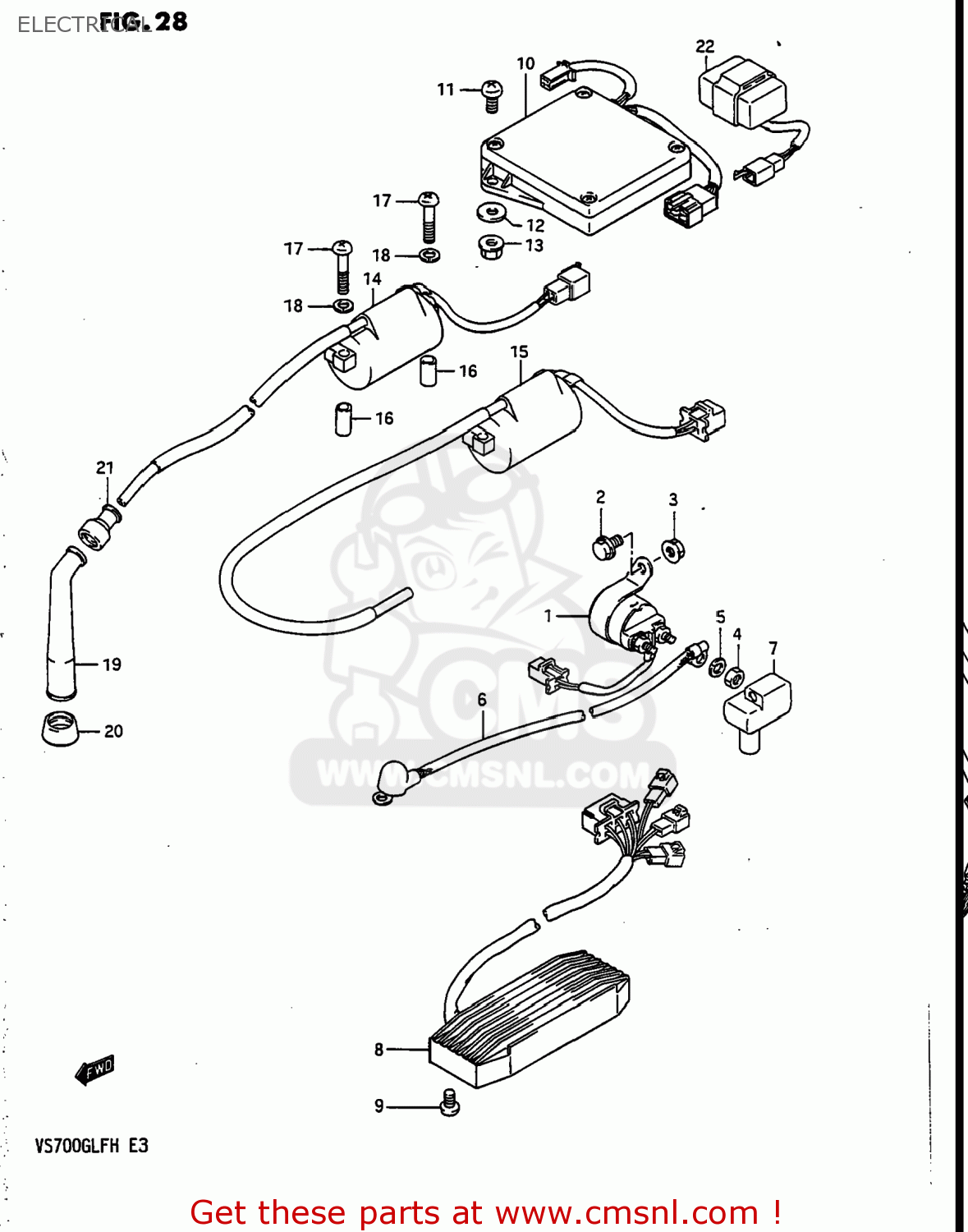

Electrical diagram VS700GLP INTRUDER 1987 (H) USA (E03)

ELECTRICAL VS700GLP INTRUDER 1987 (H) USA (E03)

ELECTRICAL VS700GLP INTRUDER 1987 (H) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3180015500
ref: 1
31800-15501

RELAY ASSEMBLY,STARTING MOTOR

€ 78.00

2

0151706106
ref: 2
01550-0610A

BOLT

€ 2.50

3

0831616066
ref: 3
08316-1006B

NUT

€ 2.50

4

0831011066
ref: 4
08310-0006A

NUT

€ 2.00

5

0832121066
ref: 5
08321-0106A

WASHER,LOCK

€ 2.00

6

3385038A00
ref: 6

WIRE,STARTER MOTOR LEAD

€ 17.50

7

3186138A00
ref: 7

CAP,STARTER RELAY

€ 7.50

8

3280038A00
ref: 8

RECTIFIER ASSY

€ 396.50

9

0110706104
ref: 9
01500-0610B

BOLT

€ 2.00

10

3290038A00
ref: 10

IGNITOR UNIT

€ 781.50

11

0211206166
ref: 11
02112-0616A

SCREW

€ 2.00

12

0916106016
ref: 12

WASHER(6.5X20X2)

€ 2.50

13

0831616066
ref: 13
08316-1006B

NUT

€ 2.50

14

3341038A00
ref: 14
33410-38A02

COIL ASSEMBLY,IGNITION

€ 132.00

15

3342038A00
ref: 15
33420-38A02

COIL ASSEMBLY,IGNITION

€ 168.50

16

0918006144
ref: 16

SPACER(6.4X10X19)

€ 5.00

17

0912505053
ref: 17

SCREW (5X38)

€ 1.50

18

0832121056
ref: 18
08321-0105A

LOCK WASHER

€ 3.00

19

3351011410
ref: 19

CAP,SPARK PLUG

€ 24.50

20

3354124510
ref: 20
33541-47D00

SEAL,SPARK PLUG CAP

€ 7.00

21

3354298000
ref: 21
33542-38B00

SEAL,SPARK PLU

€ 4.50

22

3395038A00
ref: 22

RELAY ASSY,FUEL CUT

€ 93.50
