Buy Suzuki VS Parts Online


HANDLEBAR - CONTROL CABLE (VS700GLFG/GLEFG/GLFH/GLEFH)

VS700GLP INTRUDER 1987 (H) USA (E03)

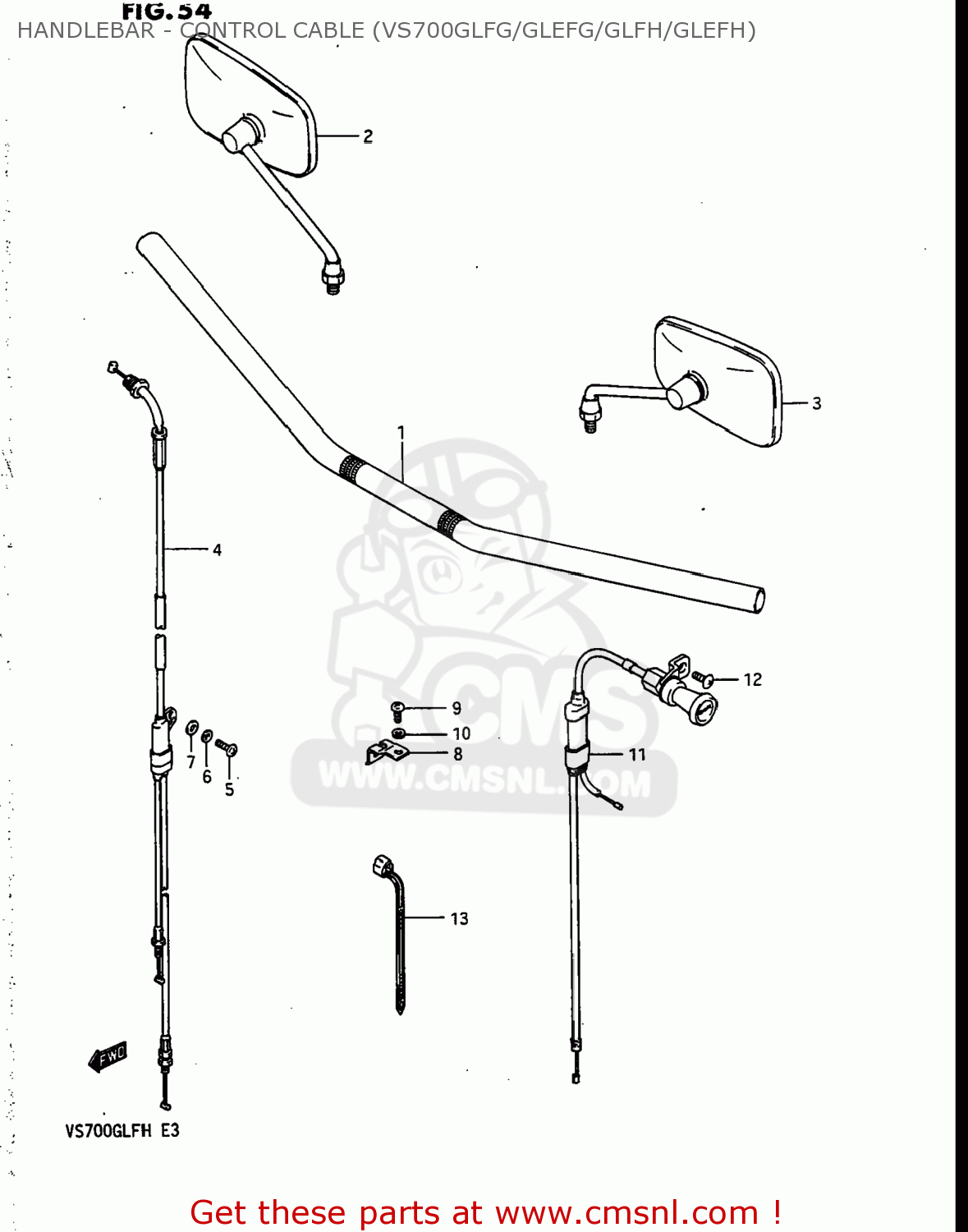

Handlebar - control cable (vs700glfg/glefg/glfh/glefh) diagram VS700GLP INTRUDER 1987 (H) USA (E03)

HANDLEBAR - CONTROL CABLE (VS700GLFG/GLEFG/GLFH/GLEFH) VS700GLP INTRUDER 1987 (H) USA (E03)
HANDLEBAR - CONTROL CABLE (VS700GLFG/GLEFG/GLFH/GLEFH) VS700GLP INTRUDER 1987 (H) USA (E03)
HANDLEBAR - CONTROL CABLE (VS700GLFG/GLEFG/GLFH/GLEFH) VS700GLP INTRUDER 1987 (H) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5611138A00
ref: 1
56111-38A20
HANDLEBAR,RIGHT
€ 70.50
2
5650038A30
ref: 2
MIRROR ASSY,RR VIEW,R
5650038A30
€ 75.00
3
5660038A30
ref: 3
MIRROR ASSY,RR VIEW,L
5660038A30
€ 75.50
4
5830038A00
ref: 4
58300-38A01
CABLE ASSEMBLY,THROTTLE
5830038A00
€ 60.00
5
0211205107
ref: 5
SCREW
0211205107
€ 2.00
6
0832121057
ref: 6
08321-0105A
LOCK WASHER
0832121057
€ 2.00
7
0832221058
ref: 7
08322-01057
WASHER
€ 2.50
8
5862138A00
ref: 8
CLAMP,THROTTLE CABLE
5862138A00
€ 6.00
9
0211205107
ref: 9
SCREW
0211205107
€ 2.00
10
0832121057
ref: 10
08321-0105A
LOCK WASHER
0832121057
€ 2.00
11
5840038A00
ref: 11
58400-38A02
CABLE ASSEMBLY,STARTER
€ 54.00
12
0214206104
ref: 12
02142-0610A
SCREW
0214206104
€ 2.00
13
0940714403
ref: 13
CLAMP(L:125)
0940714403
€ 2.50
13
0940714403
ref: 13
CLAMP(L:125)
0940714403
€ 2.50
