CYLINDER HEAD (REAR)

VS700GLP INTRUDER 1989 (K) USA (E03)

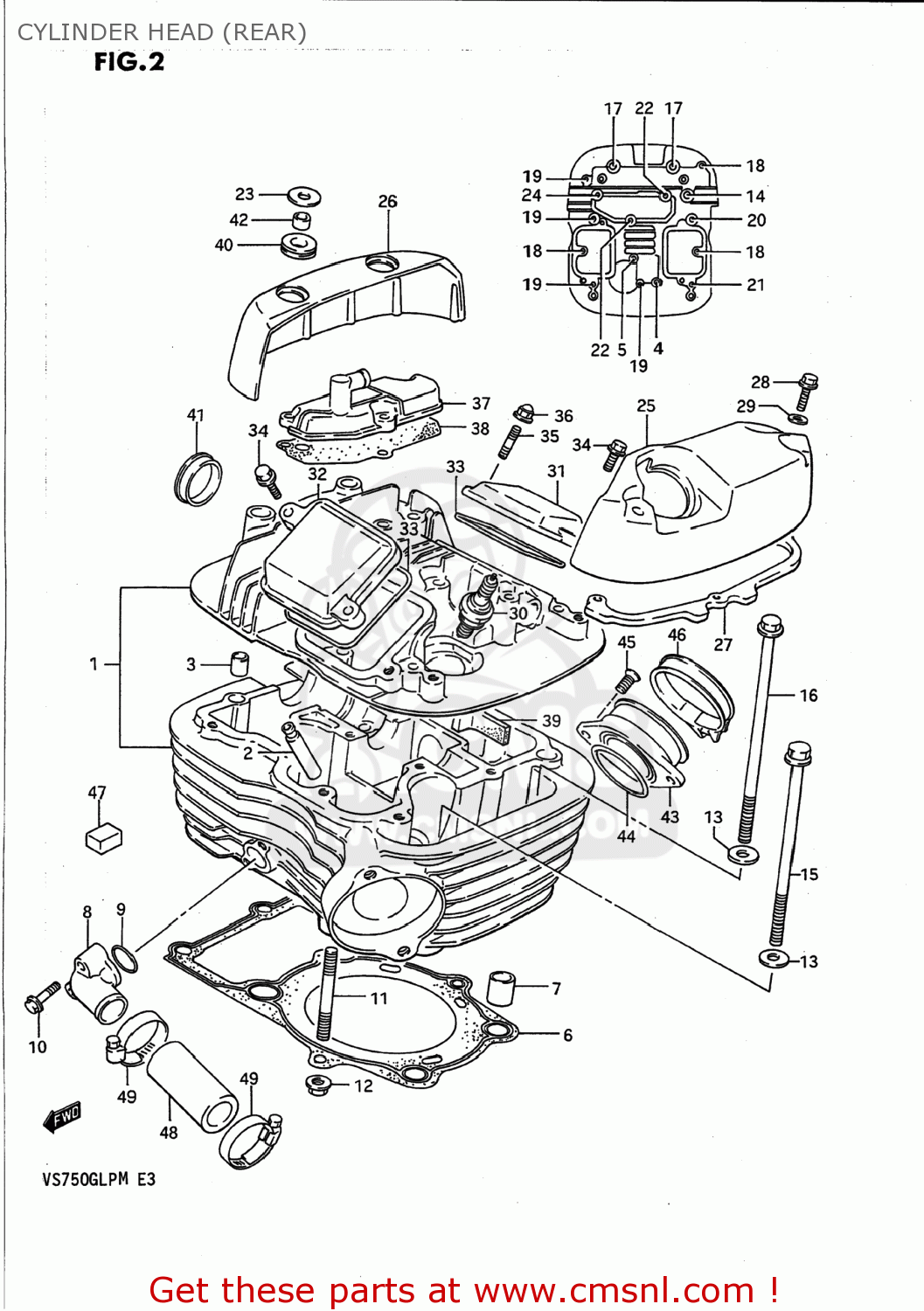

Cylinder head (rear) diagram VS700GLP INTRUDER 1989 (K) USA (E03)

CYLINDER HEAD (REAR) VS700GLP INTRUDER 1989 (K) USA (E03)
CYLINDER HEAD (REAR) VS700GLP INTRUDER 1989 (K) USA (E03)
CYLINDER HEAD (REAR) VS700GLP INTRUDER 1989 (K) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1110338A01
ref: 1
11103-38A02
HEAD ASSEMBLY,CYLINDER,REAR
€ 619.50
2
1111538A71
ref: 2
11115-41F70
GUIDE,VALVE
1111538A71
€ 18.50
3
0920611011
ref: 3
09206-11004
PIN(11X14)
0920611011
€ 6.00
4
0910306101
ref: 4
BOLT(6X50)
0910306101
€ 2.00
5
0910306102
ref: 5
BOLT(6X55)
0910306102
€ 2.50
6
1114238A03
ref: 6
11142-45C00
GASKET,CYLINDER HEAD RR (MCA)
1114238A03
€ 54.00
7
0920613001
ref: 7
04211-13189
PIN
0920613001
€ 2.50
8
1116938A00
ref: 8
11169-45C10
UNION,CYLINDER HEAD WATER
€ 28.50
9
0928018004
ref: 9
O RING(D:2.4,ID:17.8)
0928018004
€ 5.50
10
0154706257
ref: 10
BOLT
0154706257
€ 2.50
11
0910808144
ref: 11
BOLT,STUD
0910808144
€ 4.50
12
0831616088
ref: 12
08316-10087
NUT
0831616088
€ 2.50
13
0916010039
ref: 13
WASHER(10.5X22X2.3)
0916010039
€ 2.50
14
0910308040
ref: 14
BOLT(8X140)
0910308040
€ 4.00
15
0910310133
ref: 15
BOLT(10X155)
0910310133
€ 7.50
16
0910310134
ref: 16
BOLT(10X165)
0910310134
€ 7.50
17
0910308180
ref: 17
BOLT(8X245)
0910308180
€ 13.00
18
0151706257
ref: 18
01550-06257
BOLT 6X25
€ 2.50
19
0151706307
ref: 19
01550-06307
BOLT
0151706307
€ 2.00
20
0712006308
ref: 20
07120-06307
BOLT
€ 2.50
21
0151706408
ref: 21
01550-06407
BOLT
0151706408
€ 2.50
22
0910306102
ref: 22
BOLT(6X55)
0910306102
€ 2.50
23
0916008098
ref: 23
09160-08130
WASHER (8.2X24X1.6)
€ 2.00
24
0151706207
ref: 24
01550-06207
BOLT 6X20
€ 2.50
25
1117338A03
ref: 25
CAP,CYLINDER HEAD COVER RR,L
1117338A03
€ 68.50
26
1117438A02
ref: 26
CAP,CYLINDER HEAD COVER RR,R
1117438A02
€ 75.00
27
1127338A01
ref: 27
CUSHION,RR,L CAP
1127338A01
€ 10.50
28
0120406357
ref: 28
BOLT
0120406357
€ 1.50
29
0832221067
ref: 29
08322-01067
WASHER
0832221067
€ 2.00
30-1
0948200332
ref: 30-1
09482-00334
SPARK PLUG DP8EA-9
€ 4.00
30-10
0948200355111
ref: 30-10
09482-00354
SPARK PLUG X22EPR-U9
€ 4.00
30-11
0948200330
ref: 30-11
PLUG,SPARK(DPR9EA-9)
0948200330
€ 4.00
30-12
0948200331111
ref: 30-12
09482-00331
SPARK PLUG X27EPR-U9
0948200331111
€ 4.00
30-2
0948200333111
ref: 30-2
SPARK PLUG X24EP-U9
€ 0.00
30-3
0948200352
ref: 30-3
09482-00354
SPARK PLUG DP7EA-9
€ 4.00
30-4
0948200353111
ref: 30-4
09482-00353
SPARK PLUG X22EP-U9
€ 0.00
30-5
0948200328
ref: 30-5
09482-00330
SPARK PLUG DP9EA-9
0948200328
€ 4.00
30-6
0948200329111
ref: 30-6
SPARK PLUG X27EP-U9
€ 4.00
30-7
0948200334
ref: 30-7
PLUG,SPARK(DPR8EA-9)
€ 4.00
30-8
0948200335111
ref: 30-8
09482-00335
SPARK PLUG X24EPR-U9
€ 4.00
30-9
0948200354
ref: 30-9
PLUG,SPARK(DPR7EA-9)
0948200354
€ 4.00
31
1117538A01
ref: 31
11175-38A11
CAP,INSPECTION
€ 14.50
32
1117638A01
ref: 32
11176-38A02
CAP,INSPECTION,EXHAUST
€ 15.00
33
1117738A00
ref: 33
GASKET,INSPECTION CAP (NAS)
1117738A00
€ 5.00
34
0154706207
ref: 34
BOLT
0154706207
€ 2.50
35
0142106168
ref: 35
01421-0616A
STUD 6X16
0142106168
€ 2.00
36
0831321067
ref: 36
08313-20067
NUT
€ 2.00
37
1118638A01
ref: 37
11186-38A02
COVER,BREATHER
€ 13.50
38
1118738A02
ref: 38
11187-38A02-H17
GASKET,BREATHER COVER (NAS)
1118738A02
€ 12.00
39
1117938A00
ref: 39
PLATE,HEAD COVER RR
1117938A00
€ 7.50
40
0932013015
ref: 40
CUSHION
0932013015
€ 3.00
41
0924130006
ref: 41
09241-30004
PLUG
€ 6.50
42
0930108007
ref: 42
BUSH
0930108007
€ 4.00
43
1312038A01
ref: 43
13102-45C00
PIPE,INTAKE
€ 40.50
44
0928040003
ref: 44
09280-40010
O-RING (D:2.4 ID:39.7)
0928040003
€ 3.50
45
0212206205
ref: 45
02122-0620A
SCREW
€ 2.00
46
1317005A00
ref: 46
09402-52501
CLAMP,PIPE
€ 9.00
47
1115238A00
ref: 47
PAD
1115238A00
€ 3.50
48
1785438A00
ref: 48
HOSE,CYLINDER HEAD JOINT
1785438A00
€ 8.50
49
0940225502
ref: 49
09402-28511
CLAMP
0940225502
€ 8.50
