MAGNETO

VS700GLP INTRUDER 1989 (K) USA (E03)

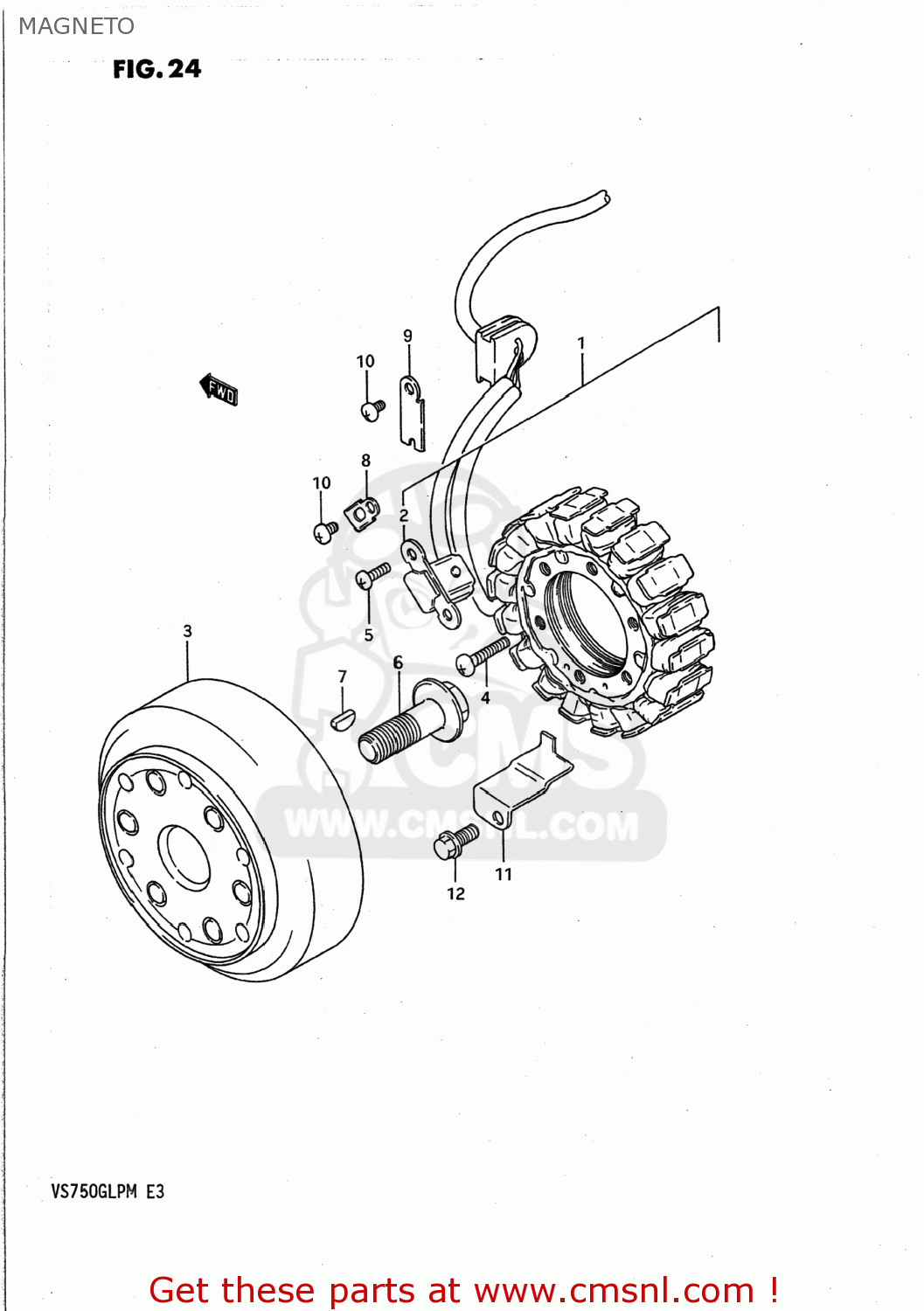

Magneto diagram VS700GLP INTRUDER 1989 (K) USA (E03)

MAGNETO VS700GLP INTRUDER 1989 (K) USA (E03)

MAGNETO VS700GLP INTRUDER 1989 (K) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210138A10
ref: 1

STARTER ASSY

€ 451.50

2

3216038A10
ref: 2

SENSOR & WIRE ASSY

€ 149.00

3

3210238A10
ref: 3

ROTOR

€ 346.00

4

0154706307
ref: 4

BOLT

€ 2.50

5

0211205107
ref: 5

SCREW

€ 2.00

6

0910314001
ref: 6

BOLT(14X43)

€ 7.00

7

0834131049
ref: 7
09420-04008

KEY 4MM

€ 3.50

8

3149745000
ref: 8

CLAMP,GENERATOR LEAD WIRE

€ 1.50

9

3237138A10
ref: 9

CLAMP NO.1,MAGNETO READ WIRE

€ 1.50

10

0211205107
ref: 10

SCREW

€ 2.00

11

3237138A20
ref: 11
32371-45C00

CLAMP,MAGNETO LEAD WIRE

€ 3.00

12

0154706107
ref: 12

BOLT

€ 1.50
