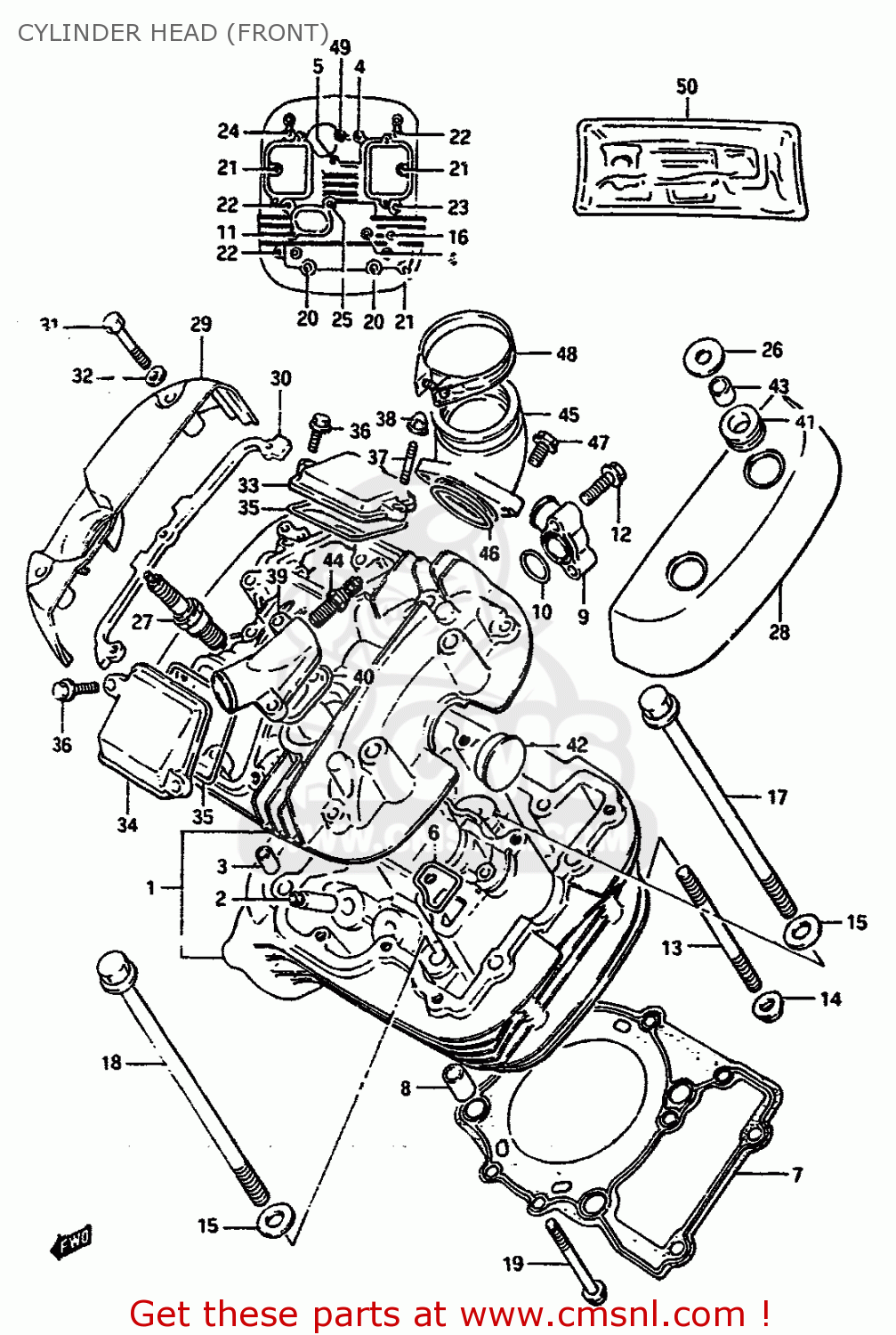

CYLINDER HEAD (FRONT)

ref

part #

description

quantity

1-1

1110138A00
ref: 1-1
~E.NO.104053-11101-3

HEAD ASSEMBLY,CYLINDER,FRONT

€ 802.00

1-2

1110138A01
ref: 1-2
E.NO.104054~

HEAD ASSEMBLY,CYLINDER,FRONT

€ 802.00

2

1111538A71
ref: 2

GUIDE,VALVE

€ 18.50

3

0920611011
ref: 3

PIN(11X14)

€ 6.00

4

0910306101
ref: 4

BOLT(6X50)

€ 2.00

5

0910306102
ref: 5

BOLT(6X55)

€ 2.50

6

1112338A00
ref: 6

GASKET,CYLINDER HEAD WATER (NAS)

€ 2.50

7

1114138A01
ref: 7

GASKET,CYLINDER HEAD FR (MCA)

€ 51.50

8

0920613001
ref: 8

PIN

€ 2.50

9

1116938A00
ref: 9

UNION,CYLINDER HEAD WATER

€ 28.50

10

0928018004
ref: 10

O RING(D:2.4,ID:17.8)

€ 5.50

11

0151706207
ref: 11

BOLT 6X20

€ 2.50

12

0154706257
ref: 12

BOLT

€ 2.50

13

0910808144
ref: 13

BOLT,STUD

€ 4.50

14

0831616088
ref: 14

NUT

€ 2.50

15

0916010039
ref: 15

WASHER(10.5X22X2.3)

€ 2.50

16

0910308040
ref: 16

BOLT(8X140)

€ 4.00

17

0910310133
ref: 17

BOLT(10X155)

€ 7.50

18

0910310134
ref: 18

BOLT(10X165)

€ 7.50

19

0151706408
ref: 19

BOLT

€ 2.50

20

0910308180
ref: 20

BOLT(8X245)

€ 13.00

21

0151706257
ref: 21

BOLT 6X25

€ 2.50

22

0151706307
ref: 22

BOLT

€ 2.00

23

0712006308
ref: 23

BOLT

€ 2.50

24

0151706408
ref: 24

BOLT

€ 2.50

25

0910306102
ref: 25

BOLT(6X55)

€ 2.50

26

0916008098
ref: 26

WASHER (8.2X24X1.6)

€ 2.00

27-1

0948200334
ref: 27-1

PLUG,SPARK(DPR8EA-9)

€ 4.00

27-2

0948200335111
ref: 27-2

SPARK PLUG X24EPR-U9

€ 4.00

27-3

0948200354
ref: 27-3
OPT

PLUG,SPARK(DPR7EA-9)

€ 4.00

27-4

0948200355111
ref: 27-4
OPT

SPARK PLUG X22EPR-U9

€ 4.00

27-5

0948200330
ref: 27-5
OPT

PLUG,SPARK(DPR9EA-9)

€ 4.00

27-6

0948200331111
ref: 27-6
OPT

SPARK PLUG X27EPR-U9

€ 4.00

28

1117138A02
ref: 28

CAP,CYLINDER HEAD COVER FR,L

€ 72.50

29

1117238A03
ref: 29

CAP,CYLINDER HEAD COVER FR,R

€ 98.50

30

1127238A00
ref: 30

CUSHION,FR,R CAP

€ 10.50

31

0120406407
ref: 31

BOLT

€ 2.00

32

0832221067
ref: 32

WASHER

€ 2.00

33

1117538A01
ref: 33

CAP,INSPECTION

€ 14.50

34

1117638A01
ref: 34

CAP,INSPECTION,EXHAUST

€ 15.00

35

1117738A00
ref: 35

GASKET,INSPECTION CAP (NAS)

€ 5.00

36

0154706207
ref: 36

BOLT

€ 2.50

37

0142106168
ref: 37

STUD 6X16

€ 2.00

38

0831321067
ref: 38

NUT

€ 2.00

39

1118138A01
ref: 39

UNION

€ 34.50

40

1118238A00
ref: 40

GASKET,WATER OUTLET UNION (NAS)

€ 2.00

41

0932013015
ref: 41

CUSHION

€ 3.00

42

0924130006
ref: 42

PLUG

€ 6.50

43

0930108007
ref: 43

BUSH

€ 4.00

44

3485005A10
ref: 44

GAUGE ASSY,WATER TEMP

€ 104.00

45

1311038A03
ref: 45

PIPE,INTAKE

€ 89.00

46

0928040003
ref: 46

O-RING (D:2.4 ID:39.7)

€ 3.50

47

0151706164
ref: 47

BOLT

€ 2.50

48

1317005A00
ref: 48

CLAMP,PIPE

€ 9.00

49

0151706307
ref: 49
E.NO.104054~

BOLT

€ 2.00

50-1

1140038842
ref: 50-1
OPT

GASKET SET (MCA)

€ 202.50

50-2

1140038842H17
ref: 50-2
E17,E77 (SWEDEN), E1

GASKET SET

€ 202.50
