HEADLAMP
VS750GL 1985 (F) (E02)

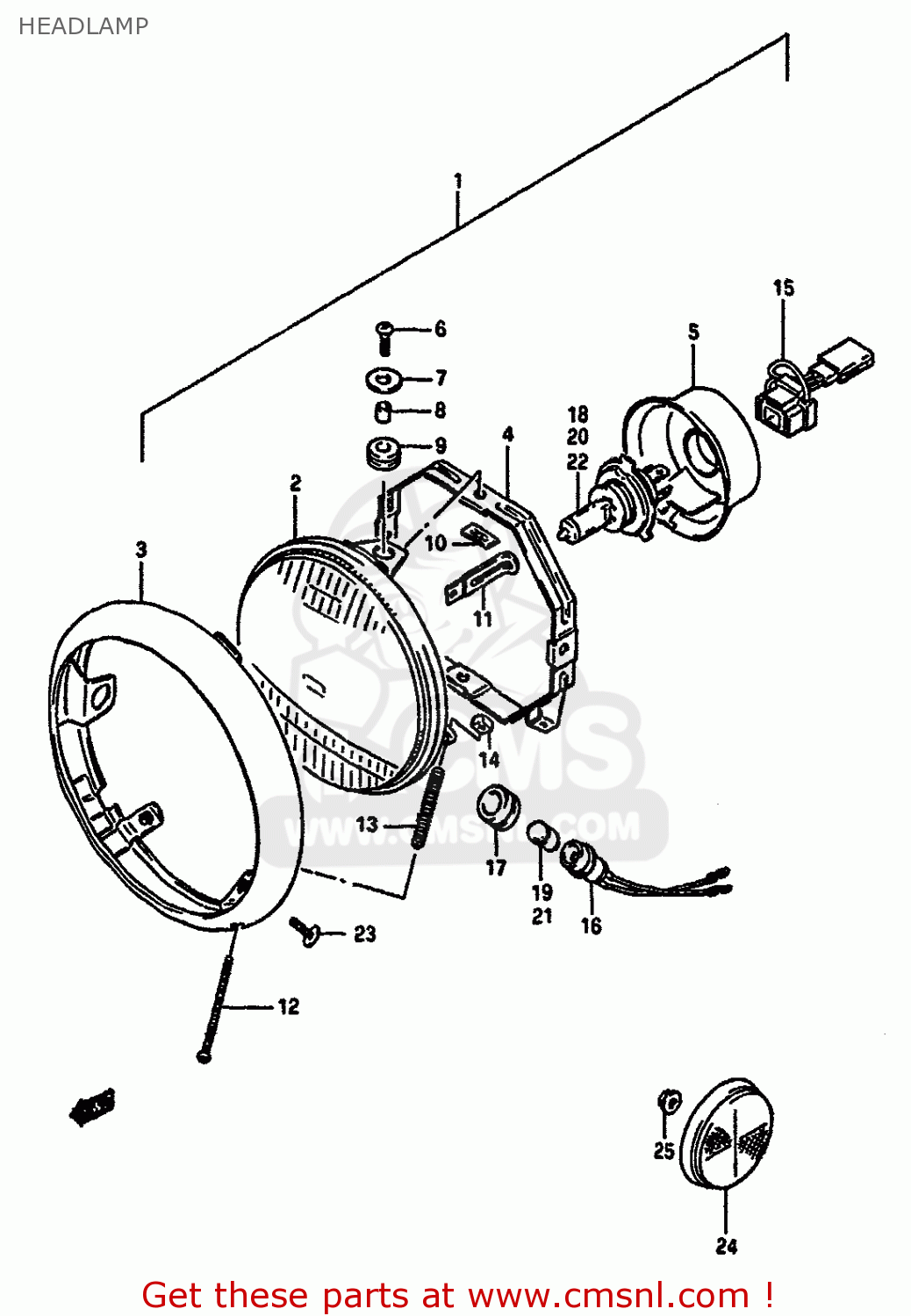

Headlamp diagram VS750GL 1985 (F) (E02)
HEADLAMP VS750GL 1985 (F) (E02)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510038A00
ref: 1-1
E1,E2,E24,E75
HEADLAMP ASSY
€ 215.50
1-2
3510038A50999
ref: 1-2
E4,E15,E16,E17,E18,E
HEADLAMP ASSY
€ 216.50
2-1
3512138A00
ref: 2-1
E1,E2,E24,E75
LAMP UNIT
€ 126.50
2-2
3512138A40
ref: 2-2
E4,E15,E16,E17,E18,E
UNIT LAMP
€ 126.50
3
3511138A00
ref: 3
RIM
€ 27.00
4
3513038A00
ref: 4
RING,MOUNTING
€ 15.00
5
3517338A00
ref: 5
COVER,SOCKET
€ 12.50
6-1
0912505102
ref: 6-1
FOR 35100-38A00
SCREW(5X14)
€ 2.50
6-2
0211205166
ref: 6-2
FOR 35100-38A50-999
SCREW
€ 2.00
7
3513845230
ref: 7
WASHER
€ 2.00
8
3513345230
ref: 8
SPACER
€ 2.00
9
3513945230
ref: 9
CUSHION
€ 1.50
10
3515548510
ref: 10
NUT
€ 2.00
11
0940405401
ref: 11
CLAMP
€ 2.50
12
3515149430
ref: 12
SCREW,HEADLAMP ADJUST
€ 3.00
13
3515449430
ref: 13
SPRING,HEADLAMP ADJUST
€ 2.00
14
3513545600
ref: 14
NUT
€ 3.00
15
3685338A00
ref: 15
SOCKET
€ 10.00
16
3611849320
ref: 16
SOCKET
€ 12.00
17
3611622630
ref: 17
JOINT,RUBBER
€ 5.00
18
0947112060
ref: 18
E1,E2,E24,E75
BULB(12V60/55W,H4)
€ 8.00
19
0947112001
ref: 19
E1,E2,E24,E75
BULB(12V3.4W,STANLEY,A72A)
€ 1.50
20
0947112061
ref: 20
E4 EXECUTED LOCALLY
BULB (12V, 60/55W, H4)
€ 0.00
21
0947112063
ref: 21
E4,E15,E16,E17,E18,E
BULB(12V4W)
€ 6.00
22
0947112060
ref: 22
E4,E15,E16,E17,E18,E
BULB(12V60/55W,H4)
€ 8.00
23
0912505068
ref: 23
SCREW(5X12)
€ 2.00
24
3595014A00
ref: 24
E39,E77
REFLECTOR,REFLEX FR
€ 15.00
25
0831616056
ref: 25
E39,E77
NUT
€ 2.50
