FUEL COCK
VS750GL 1985 (F) (E02)

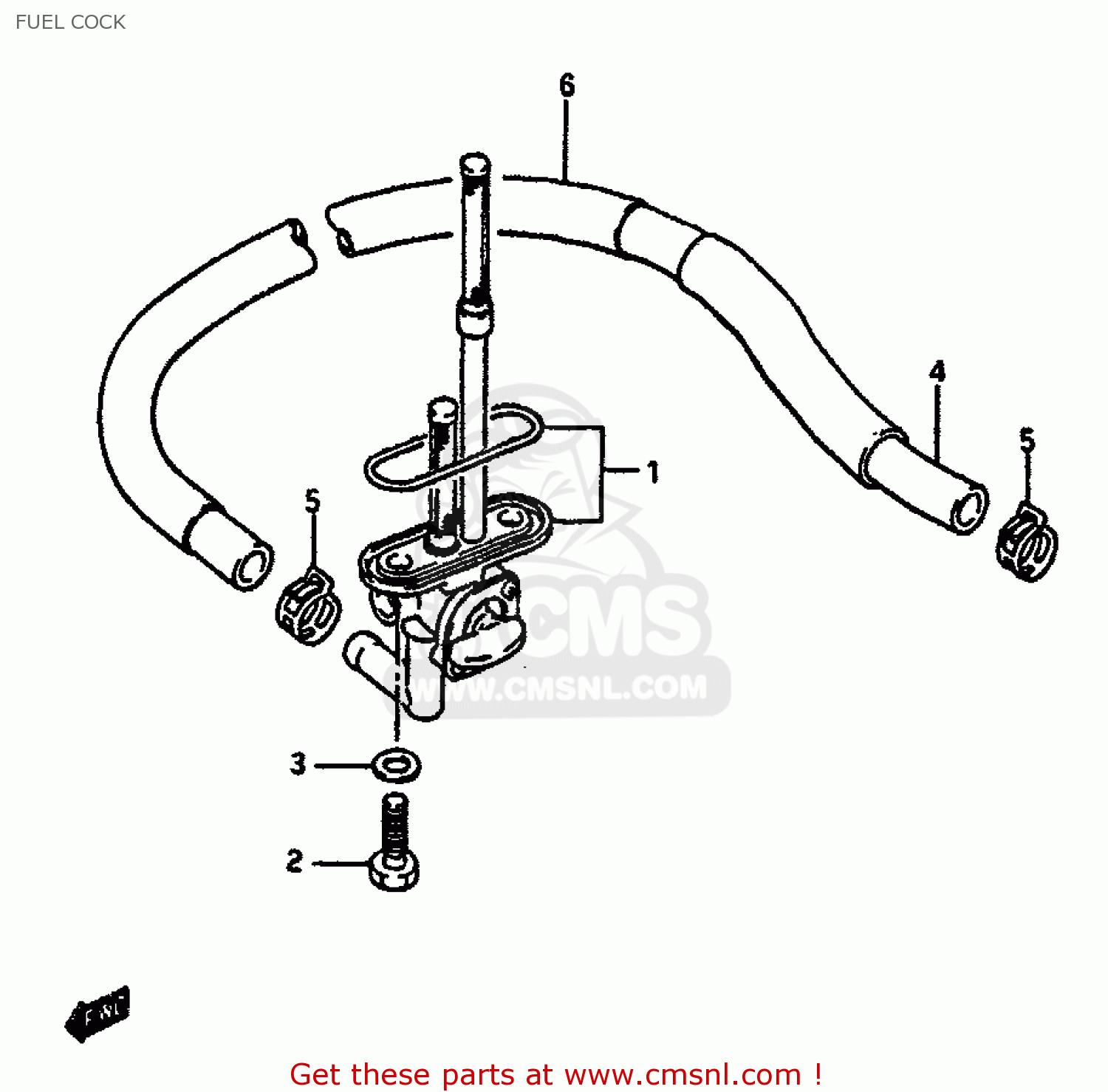

Fuel cock diagram VS750GL 1985 (F) (E02)
FUEL COCK VS750GL 1985 (F) (E02)
×
prices are in EUR
ref
part #
description
quantity
1
4430038A71
ref: 1
COCK ASSEMBLY,FUEL
€ 174.00
2
0912806057
ref: 2
BOLT(6X20)
€ 2.00
3-1
0916806010
ref: 3-1
GASKET
€ 2.00
3-2
0916806023
ref: 3-2
E17
GASKET(5.8X13X1.2) (NAS)
€ 2.00
4-1
4432038A01
ref: 4-1
MODEL F/G
HOSE,FUEL PUMP & COCK
€ 11.00
4-2
4432038A02
ref: 4-2
MODEL H/J/K/L/M
HOSE,FUEL PUMP & COCK
€ 11.00
5
0940112406
ref: 5
CLAMP
€ 2.50
6-1
4431138A00
ref: 6-1
MODEL F/G/H
TUBE,FUEL HOSE
€ 13.50
6-2
4431138A01
ref: 6-2
MODEL J/K/L/M
TUBE,FUEL HOSE
€ 13.50
