MAGNETO

VS750GLF 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

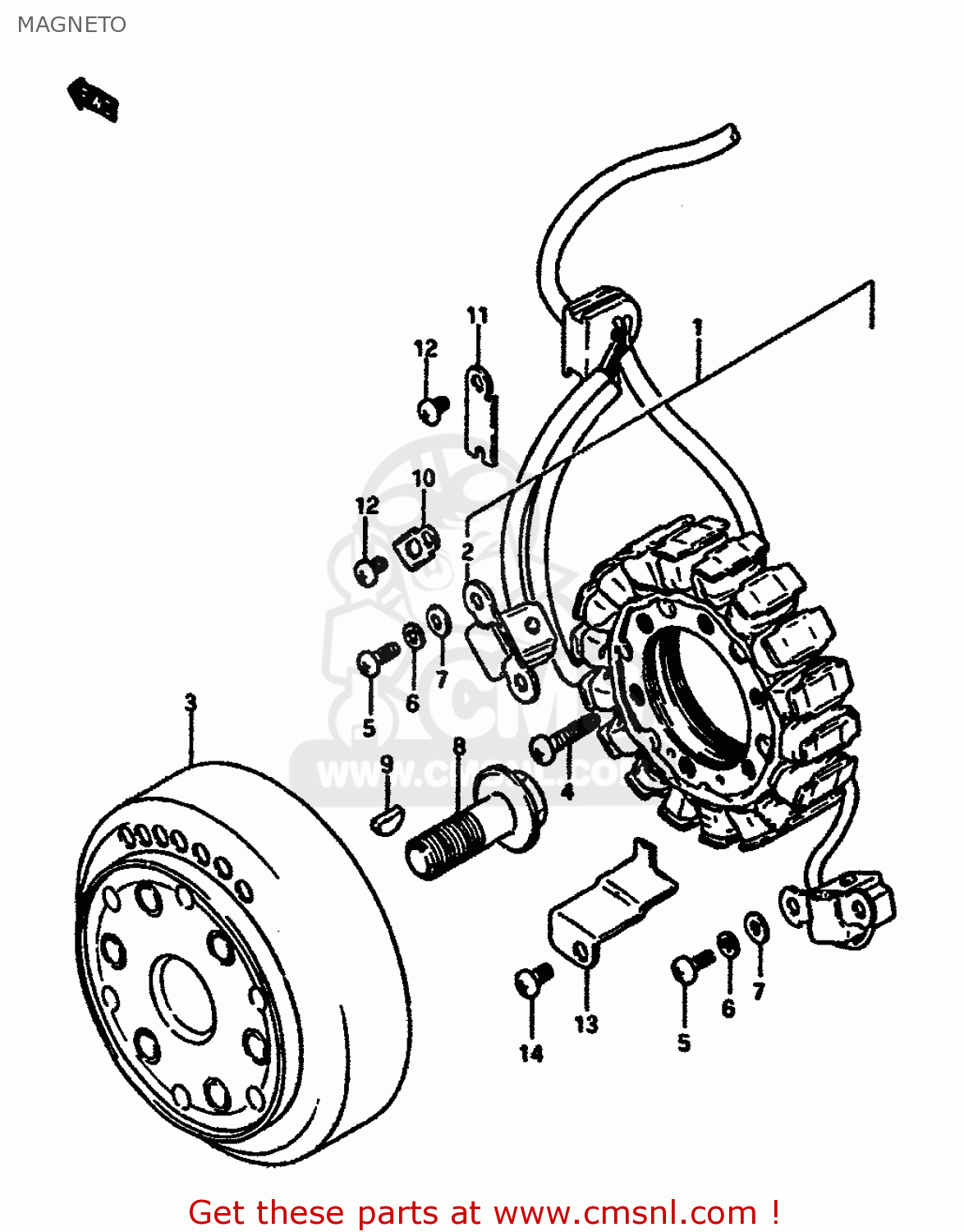

Magneto diagram VS750GLF 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

MAGNETO VS750GLF 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

MAGNETO VS750GLF 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1-1

3210138A00
ref: 1-1
MODEL F/G/H

STATOR ASSEMBLY

€ 341.50

1-2

3210138A10
ref: 1-2
MODEL J/K/L/M

STARTER ASSY

€ 451.50

2-1

3216038A00
ref: 2-1
MODEL F/G/H

COIL ASSEMBLY,PICK-UP

€ 120.50

2-2

3216038A10
ref: 2-2
MODEL J/K/L/M

SENSOR & WIRE ASSY

€ 149.00

3-1

3210238A00
ref: 3-1
MODEL F/G/H

ROTOR

€ 346.00

3-2

3210238A10
ref: 3-2
MODEL J/K/L/M

ROTOR

€ 346.00

4-1

0211206308
ref: 4-1
MODEL F/G/H

SCREW 6X30

€ 2.50

4-2

0154706307
ref: 4-2
MODEL J/K/L/M

BOLT

€ 2.50

5-1

0211205128
ref: 5-1
MODEL F/G/H

SCREW

€ 2.50

5-2

0211205107
ref: 5-2
MODEL J/K/L/M

SCREW

€ 2.00

6

0832221057
ref: 6
MODEL F/G/H

WASHER

€ 2.50

7

0832121057
ref: 7
MODEL F/G/H

LOCK WASHER

€ 2.00

8

0910314001
ref: 8

BOLT(14X43)

€ 7.00

9

0834131049
ref: 9

KEY 4MM

€ 3.50

10

3149745000
ref: 10

CLAMP,GENERATOR LEAD WIRE

€ 1.50

11

3237138A10
ref: 11

CLAMP NO.1,MAGNETO READ WIRE

€ 1.50

12-1

0211205087
ref: 12-1
MODEL F/G/H

SCREW

€ 2.00

12-2

0211205107
ref: 12-2
MODEL J/K/L/M

SCREW

€ 2.00

13

3237138A20
ref: 13

CLAMP,MAGNETO LEAD WIRE

€ 3.00

14-1

0211206108
ref: 14-1
MODEL F/G/H

SCREW

€ 1.50

14-2

0154706107
ref: 14-2
MODEL J/K/L/M

BOLT

€ 1.50
