WIRING HARNESS

VS750GLF 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

Wiring harness diagram VS750GLF 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

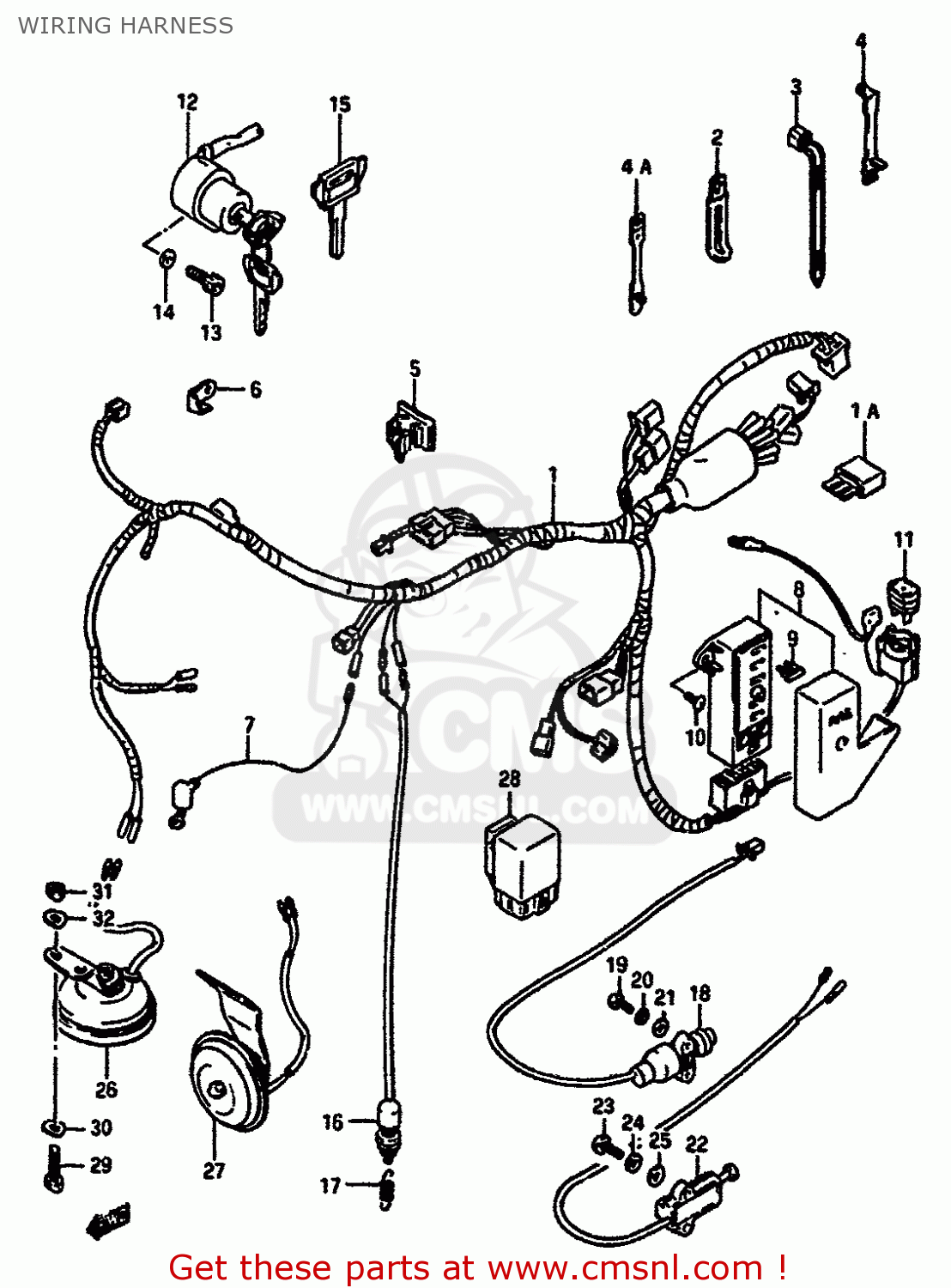

WIRING HARNESS VS750GLF 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)
WIRING HARNESS VS750GLF 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)
WIRING HARNESS VS750GLF 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
3661038A20
ref: 1-1
MODEL F
HARNESS,WIRING
€ 0.00
1-2
3661038A41
ref: 1-2
MODEL G
HARNESS,WIRING
€ 152.50
1-3
3661039A10
ref: 1-3
MODEL H
HARNESS,WIRING
€ 180.00
1-4
3661039A50
ref: 1-4
MODEL J/K/L/M
HARNESS,WIRING
€ 253.00
1A
3661138A00
ref: 1A
MODEL J/K/L/M
DIODE(STANLEY DE8804)
3661138A00
€ 13.00
2-1
0940405401
ref: 2-1
CLAMP
0940405401
€ 2.50
2-2
0940406401
ref: 2-2
MODEL H/J/K/L/M
CLAMP L:35
0940406401
€ 2.50
2-3
0940406402
ref: 2-3
CLAMP
€ 2.50
2-4
0940406403
ref: 2-4
CLAMP
€ 2.50
2-5
0940406415
ref: 2-5
CLAMP
€ 3.00
3-1
0940714403
ref: 3-1
CLAMP(L:125)
0940714403
€ 2.50
3-2
0940718402
ref: 3-2
CLAMP(L:165)
0940718402
€ 2.50
4
0940707401
ref: 4
MODEL F/G
CLAMP(L:55)
€ 1.50
4A
0940705403
ref: 4A
MODEL H/J/K/L/M
CLAMP,L:88
0940705403
€ 1.50
5
0940800074
ref: 5
MODEL F/G/H
CLAMP
€ 5.50
6
3668738A00
ref: 6
PLATE,COUPLER HOLDER
€ 2.00
7
3685138401
ref: 7
WIRE,WATER TEMPERATURE GAUGE
3685138401
€ 4.50
8
3674038A00
ref: 8
BOX ASSY,FUSE
3674038A00
€ 75.00
9
0948110101
ref: 9
FUSE(10A)
0948110101
€ 2.50
10-1
0214206206
ref: 10-1
MODEL F/G/H
SCREW
€ 2.00
10-2
0214206166
ref: 10-2
MODEL J/K/L/M
SCREW
€ 2.50
11
3675005A00
ref: 11
BREAKER ASSY,CIRCUT
3675005A00
€ 36.50
12-1
3711038A01
ref: 12-1
MODEL F/G/H/J/K
SWITCH ASSEMBLY,IGNITION
€ 74.50
12-2
3711038A02
ref: 12-2
MODEL L/M
SWITCH ASSEMBLY,IGNITION
3711038A02
€ 74.50
13-1
0711005128
ref: 13-1
BOLT 5X12
€ 2.00
13-2
0711005167
ref: 13-2
BOLT
€ 2.50
14
0832121057
ref: 14
LOCK WASHER
0832121057
€ 2.00
15-1
3714603A00
ref: 15-1
OPT
KEY,BLANK(TYPE:C)
3714603A00
€ 6.00
15-2
3714603A10
ref: 15-2
OPT
KEY,BLANK(TYPE:D)
3714603A10
€ 6.00
15-3
3714603A20
ref: 15-3
OPT
KEY,BLANK(TYPE:E)
3714603A20
€ 6.00
15-4
3714603A30
ref: 15-4
OPT
KEY,BLANK(TYPE:F)
3714603A30
€ 6.00
16
3774004A10
ref: 16
SWITCH ASSY,STOP LAMP
3774004A10
€ 22.00
17
0944306046
ref: 17
SPRING
0944306046
€ 3.50
18
3784038A01
ref: 18
MODEL F E2,MODEL G E
SWITCH ASSEMBLY,SIDE STAND
3784038A01
€ 83.50
19
0211205165
ref: 19
MODEL F/G
SCREW
0211205165
€ 2.00
20
0832121055
ref: 20
MODEL F/G
WASHER,LOCK
0832121055
€ 3.00
21
0832221055
ref: 21
MODEL F/G
WASHER,5MM
0832221055
€ 2.50
22-1
3784039A00
ref: 22-1
MODEL H E4,E17,E21,E
SWITCH ASSY,SIDE STAND
€ 54.50
22-2
3784039A20
ref: 22-2
MODEL J/K
SWITCH ASSEMBLY,SIDE STAND
€ 87.50
22-3
3784039A21
ref: 22-3
MODEL L/M
SWITCH ASSEMBLY,SIDE STAND
3784039A21
€ 87.50
23-1
0211206164
ref: 23-1
MODEL H
SCREW
€ 2.00
23-2
0211206205
ref: 23-2
MODEL J/K/L/M
SCREW
€ 2.00
24
0832121064
ref: 24
MODEL H/J/K/L/M
WASHER,LOCK
0832121064
€ 2.00
25
0832221064
ref: 25
MODEL H/J/K/L/M
WASHER
0832221064
€ 2.00
26-1
3850038A20
ref: 26-1
MODEL F E2,TO 38500-
HORN ASSEMBLY
€ 87.50
26-2
3850038A30
ref: 26-2
E1,E75,MODEL G/H E2,
HORN ASSY
€ 87.50
27
3850038A10
ref: 27
E4,E15,E16,E17,E18,E
HORN ASSY
3850038A10
€ 68.50
28
3874039A00
ref: 28
MODEL J/K/L/M
RELAY ASSEMBLY
€ 37.50
29
0110706307
ref: 29
BOLT 6X30
€ 2.50
30
0832221067
ref: 30
WASHER
0832221067
€ 2.00
31
0831011067
ref: 31
NUT 6MM
€ 2.50
32
0832221067
ref: 32
WASHER
0832221067
€ 2.00
