Buy Suzuki VS Parts Online


TRANSMISSION

VS750GLF 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

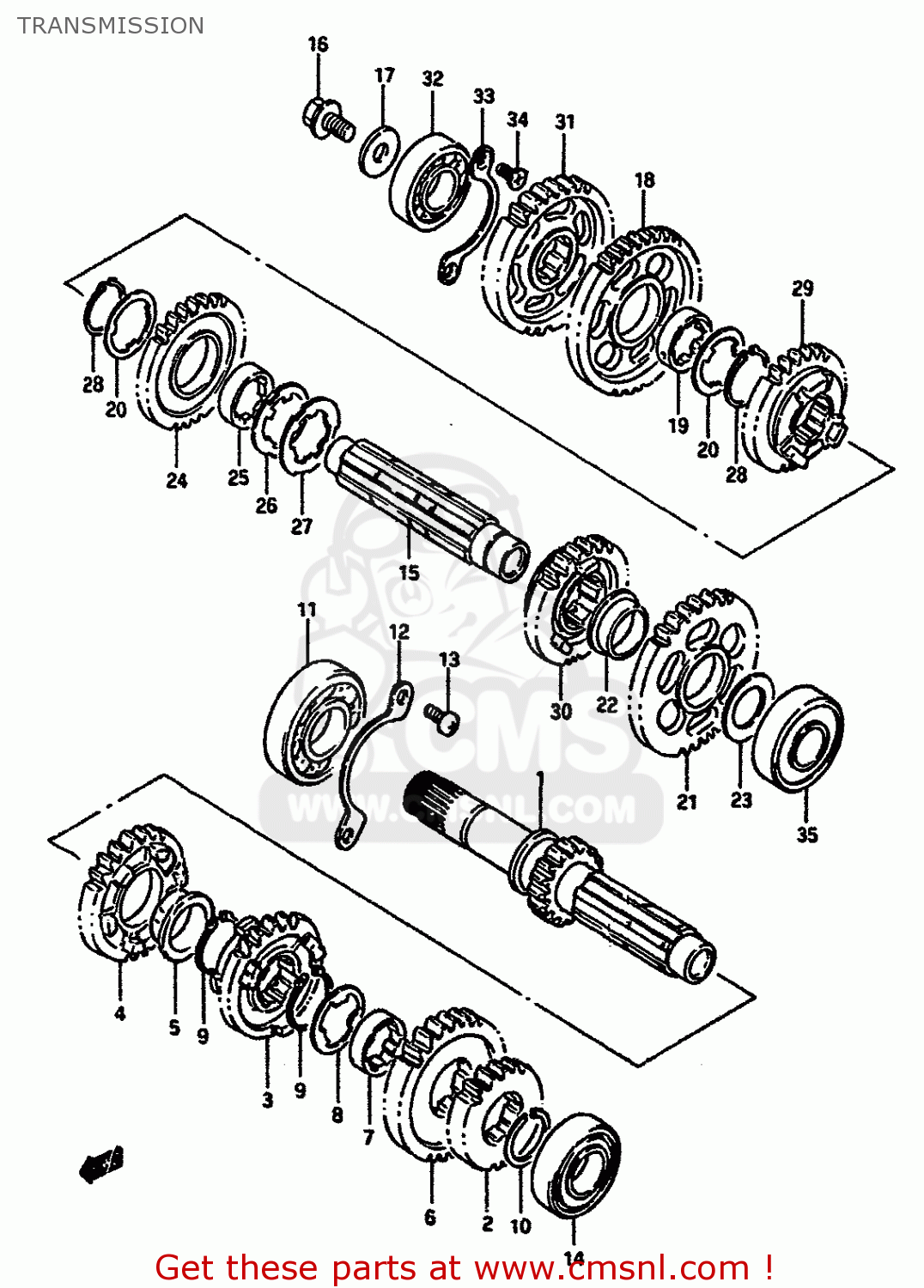

Transmission diagram VS750GLF 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)

TRANSMISSION VS750GLF 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)
TRANSMISSION VS750GLF 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)
TRANSMISSION VS750GLF 1986 (G) (E02 E04 E15 E16 E17 E18 E21 E22 E25 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
2410038812
ref: 1
COUNTER SHAFT
2410038812
€ 120.00
2
2422138A01
ref: 2
GEAR,2ND DRIVE(NT:19)
2422138A01
€ 91.50
3
2423138A01
ref: 3
GEAR,THIRD DRIVE
€ 97.00
4
2424138A00
ref: 4
GEAR,4TH DRIVE(NT:25)
2424138A00
€ 101.00
5
0930125001
ref: 5
BUSHING
€ 12.50
6
2425138A00
ref: 6
GEAR,FIFTH DRIVE (NT:27)
€ 93.50
7
2425238A00
ref: 7
BUSHING
€ 10.50
8
0916725016
ref: 8
WASHER,LOCK
0916725016
€ 3.00
9
0938025003
ref: 9
RING,SNAP
0938025003
€ 3.00
10
0938025010
ref: 10
CIRCLIP
0938025010
€ 3.00
11
0926225080
ref: 11
BEARING(25X62X17)
0926225080
€ 21.50
12
2474138A00
ref: 12
RETAINER,CNTR SHAFT BEARING
2474138A00
€ 4.00
13
0211206126
ref: 13
SCREW
0211206126
€ 1.50
14
0926220081
ref: 14
BEARING 20X47X14
0926220081
€ 27.50
15
2413138A03
ref: 15
SHAFT,DRIVE
€ 106.50
16
2413538A02
ref: 16
NOZZLE,DRIVE SHAFT
2413538A02
€ 5.00
17
0821110305
ref: 17
WASHER
0821110305
€ 3.00
18
2431138A01
ref: 18
GEAR,FIRST DRIVEN (NT:32)
€ 97.50
19
2433207A00
ref: 19
BUSH
2433207A00
€ 9.50
20
0916728001
ref: 20
WASHER,LOCK
0916728001
€ 3.00
21
2432138A00
ref: 21
GEAR,2ND DRIVEN(NT:31)
2432138A00
€ 86.00
22
0930122002
ref: 22
BUSH
0930122002
€ 7.50
23
0821120341
ref: 23
WASHER
0821120341
€ 2.00
24
2433138A02
ref: 24
GEAR,3RD DRIVEN(NT:27)
2433138A02
€ 86.00
25
2433207A00
ref: 25
BUSH
2433207A00
€ 9.50
26
0916928001
ref: 26
WASHER
0916928001
€ 3.00
27
0916728002
ref: 27
WASHER,LOCK
0916728002
€ 3.00
28
0833111289
ref: 28
CIRCLIP
€ 2.50
29
2434138A01
ref: 29
GEAR,FOURTH DRIVEN
€ 106.50
30
2435138A02
ref: 30
GEAR,FIFTH DRIVEN
2435138A02
€ 80.50
31
2462138A00
ref: 31
GEAR,REDUCTION DRIVE(NT:30)
€ 83.50
32
0926220073
ref: 32
BEARING(20X52X15)
0926220073
€ 19.00
33
2475138A00
ref: 33
RETAINER,DRIVE SHAFT BEARING
€ 4.00
34
0212206128
ref: 34
SCREW
0212206128
€ 3.00
35
0926220080
ref: 35
BEARING(20X52X15)
0926220080
€ 21.50
