FUEL COCK

VS750GLF 1988 (J) (E04 E18 E22 E34 E75 E77)

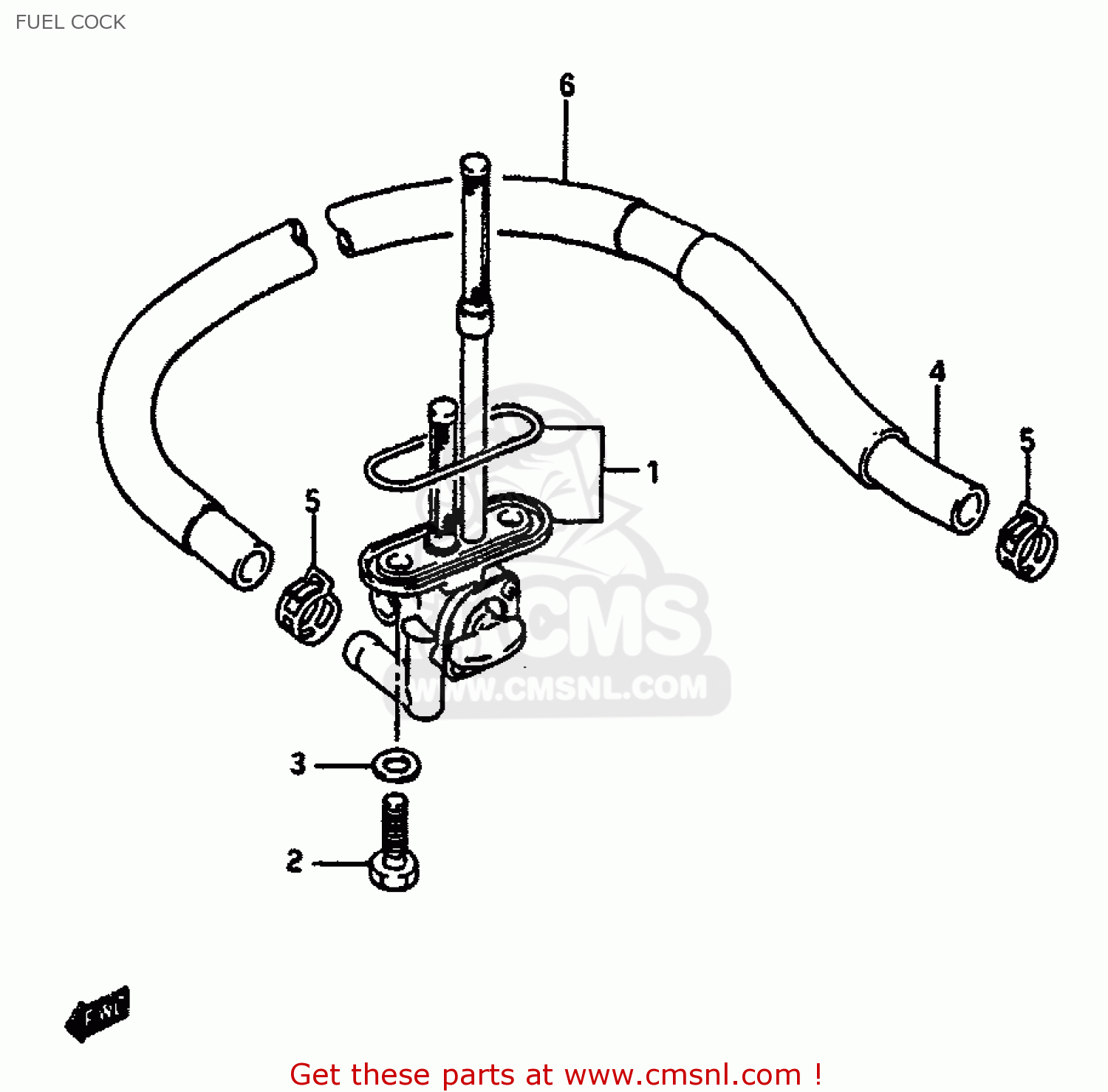

Fuel cock diagram VS750GLF 1988 (J) (E04 E18 E22 E34 E75 E77)

prices are in EUR

ref

part #

description

quantity

4430038A71
ref: 1

COCK ASSEMBLY,FUEL

€ 174.00

0912806057
ref: 2

BOLT(6X20)

€ 2.00

3-1

0916806010
ref: 3-1

GASKET

€ 2.00

3-2

0916806023
ref: 3-2
E17

GASKET(5.8X13X1.2) (NAS)

€ 2.00

4-1

4432038A01
ref: 4-1
MODEL F/G

HOSE,FUEL PUMP & COCK

€ 11.00

4-2

4432038A02
ref: 4-2
MODEL H/J/K/L/M

HOSE,FUEL PUMP & COCK

€ 11.00

0940112406
ref: 5

CLAMP

€ 2.50

6-1

4431138A00
ref: 6-1
MODEL F/G/H

TUBE,FUEL HOSE

€ 13.50

6-2

4431138A01
ref: 6-2
MODEL J/K/L/M

TUBE,FUEL HOSE

€ 13.50
