SEAT
VS750GLF 1988 (J) (E04 E18 E22 E34 E75 E77)

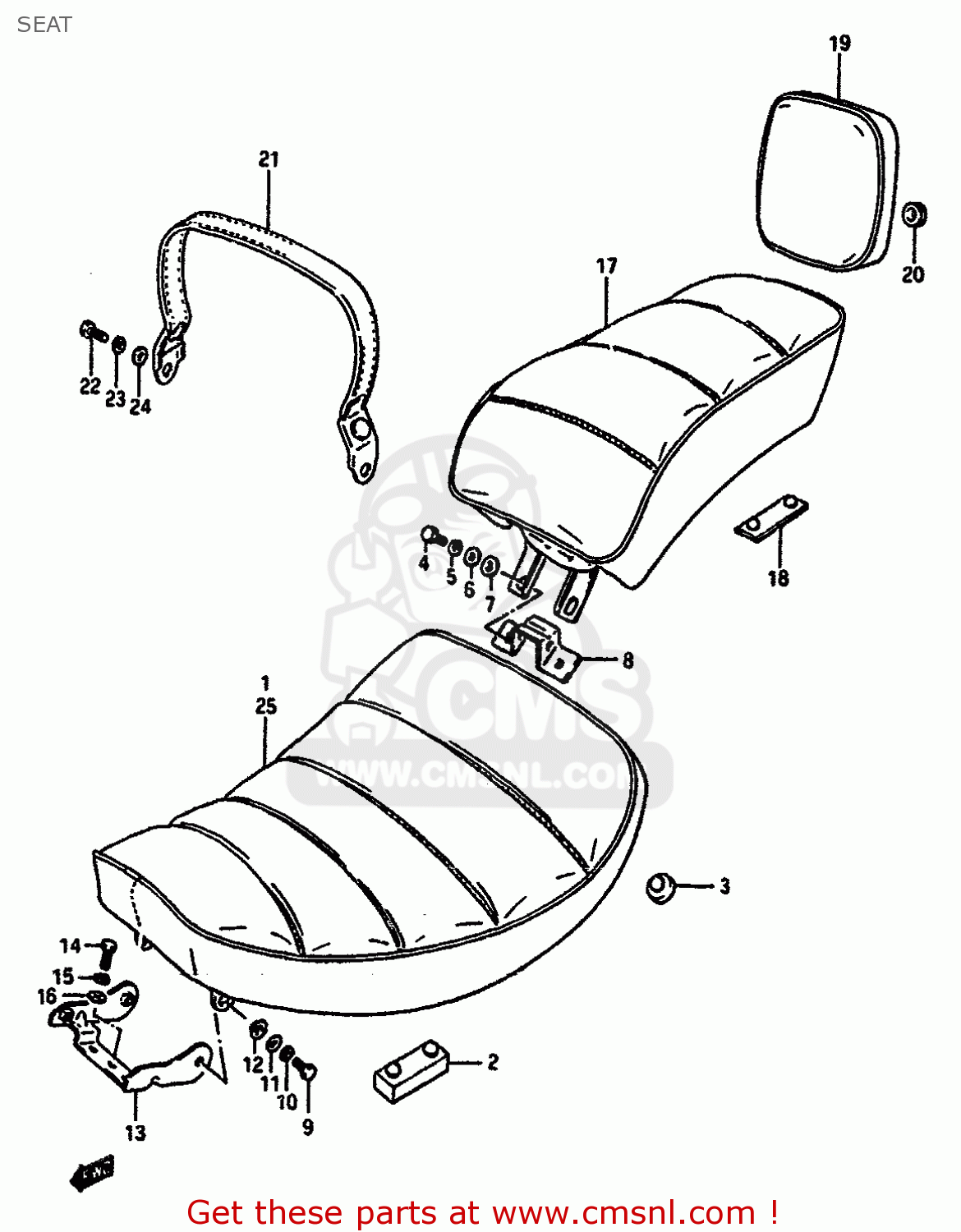

Seat diagram VS750GLF 1988 (J) (E04 E18 E22 E34 E75 E77)
SEAT VS750GLF 1988 (J) (E04 E18 E22 E34 E75 E77)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510038A004HS
ref: 1-1
MODEL F/G
SEAT ASSEMBLY
€ 1,009.50
1-2
4510038A204HS
ref: 1-2
MODEL H
SEAT ASSEMBLY
€ 1,009.50
1-3
4510038A405KR
ref: 1-3
MODEL J/K/L/M
SEAT ASSEMBLY
€ 588.00
1-4
4510038A104HS
ref: 1-4
MODEL F/G/H E22
SEAT SET (BLACK)
€ 1,009.50
1-5
4510038A114HS
ref: 1-5
MODEL J/K E22
SEAT SET (BLACK)
€ 1,009.50
1-6
4510038A115KR
ref: 1-6
MODEL L/M E22
SEAT SET (BLACK)
€ 1,009.50
2
4514943500
ref: 2
CUSHION,SEAT
€ 3.00
3
0932110012
ref: 3
CUSHION
€ 3.00
4-1
0110706166
ref: 4-1
MODEL F/G/H/J
BOLT
€ 2.00
4-2
0117406166
ref: 4-2
MODEL K/L/M
BOLT
€ 2.00
5
0832121066
ref: 5
MODEL F/G/H/J
WASHER,LOCK
€ 2.00
6
0832221066
ref: 6
MODEL F/G/H/J
WASHER, LOWER
€ 2.00
7
0916906037
ref: 7
WASHER
€ 6.50
8
4511938A00
ref: 8
PLATE,FR SEAT HOOK & RR
€ 7.50
9-1
0110706166
ref: 9-1
MODEL F/G/H/J
BOLT
€ 2.00
9-2
0117406166
ref: 9-2
MODEL K/L/M
BOLT
€ 2.00
10
0832121066
ref: 10
MODEL F/G/H/J
WASHER,LOCK
€ 2.00
11
0832221066
ref: 11
MODEL F/G/H/J
WASHER, LOWER
€ 2.00
12
0916906037
ref: 12
WASHER
€ 6.50
13-1
4521038A01019
ref: 13-1
MODEL G/H
BRACKET,SEAT,FRONT
€ 18.50
13-2
4521038A02019
ref: 13-2
MODEL J/K/L
BRACKET,SEAT,FRONT
€ 18.50
13-3
4521038A0124D
ref: 13-3
MODEL F/G
BRACKET,SEAT,FRONT
€ 18.50
13-4
4521038A0124V
ref: 13-4
MODEL G/H
BRACKET,SEAT,FRONT
€ 18.50
13-5
4521038A0133D
ref: 13-5
MODEL H
BRACKET,SEAT,FRONT
€ 18.50
13-6
4521038A0220U
ref: 13-6
MODEL J/K/L
BRACKET,SEAT,FRONT
€ 18.50
13-7
4521038A0214W
ref: 13-7
MODEL M
BRACKET,SEAT,FRONT
€ 18.50
13-8
4521038A0219A
ref: 13-8
MODEL M
BRACKET,SEAT,FRONT
€ 18.50
14-1
0110706165
ref: 14-1
MODEL F/G/H/J
BOLT 6X16
€ 2.00
14-2
0117406166
ref: 14-2
MODEL K/L/M
BOLT
€ 2.00
15
0832121064
ref: 15
MODEL F/G/H/J
WASHER,LOCK
€ 2.00
16
0832221064
ref: 16
MODEL F/G/H/J
WASHER
€ 2.00
17-1
4530038A004HS
ref: 17-1
MODEL F/G
SEAT ASSEMBLY,PILLION
€ 233.50
17-2
4530038A014HS
ref: 17-2
MODEL H
SEAT SET,PILLION
€ 233.50
17-3
4530038A405KR
ref: 17-3
MODEL J/K/L/M
SEAT ASSEMBLY,PILLION
€ 233.50
17-4
4530038A014HS
ref: 17-4
MODEL J/K E22
SEAT SET,PILLION
€ 233.50
17-5
4530038A015KR
ref: 17-5
MODEL L/M E22
SEAT SET,PILLION (BLACK)
€ 233.50
18
4514914500
ref: 18
CUSHION
€ 6.50
19-1
4535038A014HS
ref: 19-1
MODEL F/G
PAD ASSEMBLY,SEAT
€ 83.50
19-2
4535038A024HS
ref: 19-2
MODEL H
PAD ASSY,SEAT
€ 83.50
19-3
4535038A405KR
ref: 19-3
MODEL J/K/L/M
PAD ASSEMBLY,SEAT
€ 233.00
19-4
4535038A024HS
ref: 19-4
MODEL J/K E22
PAD ASSY,SEAT
€ 83.50
19-5
4535038A025KR
ref: 19-5
MODEL L/M E22
PAD ASSY,SEAT (BLACK)
€ 83.50
20
0932009026
ref: 20
MODEL F/G/H,MODEL J/
CUSHION
€ 4.00
21-1
4518038A004HS
ref: 21-1
MODEL F/G/H E16,E39
BAND,SEAT GRIP (BLACK)
€ 18.00
21-2
4518038A005KR
ref: 21-2
MODEL J E77 MODEL K
BAND,SEAT
€ 18.00
22
0110706166
ref: 22
E16,E21,E39,E77
BOLT
€ 2.00
23
0832121067
ref: 23
E16,E21,E39,E77
WASHER,LOCK
€ 2.50
24
0832221067
ref: 24
E16,E21,E39,E77
WASHER
€ 2.00
25-1
45100388109HZ
ref: 25-1
OPT,MODEL H/J
SEAT/PILLION/PAD SET
€ 225.00
25-2
45100388109KG
ref: 25-2
OPT,MODEL H/J
SEAT ASSEMBLY
€ 225.00
