WATER PUMP

VS750GLF 1988 (J) (E04 E18 E22 E34 E75 E77)

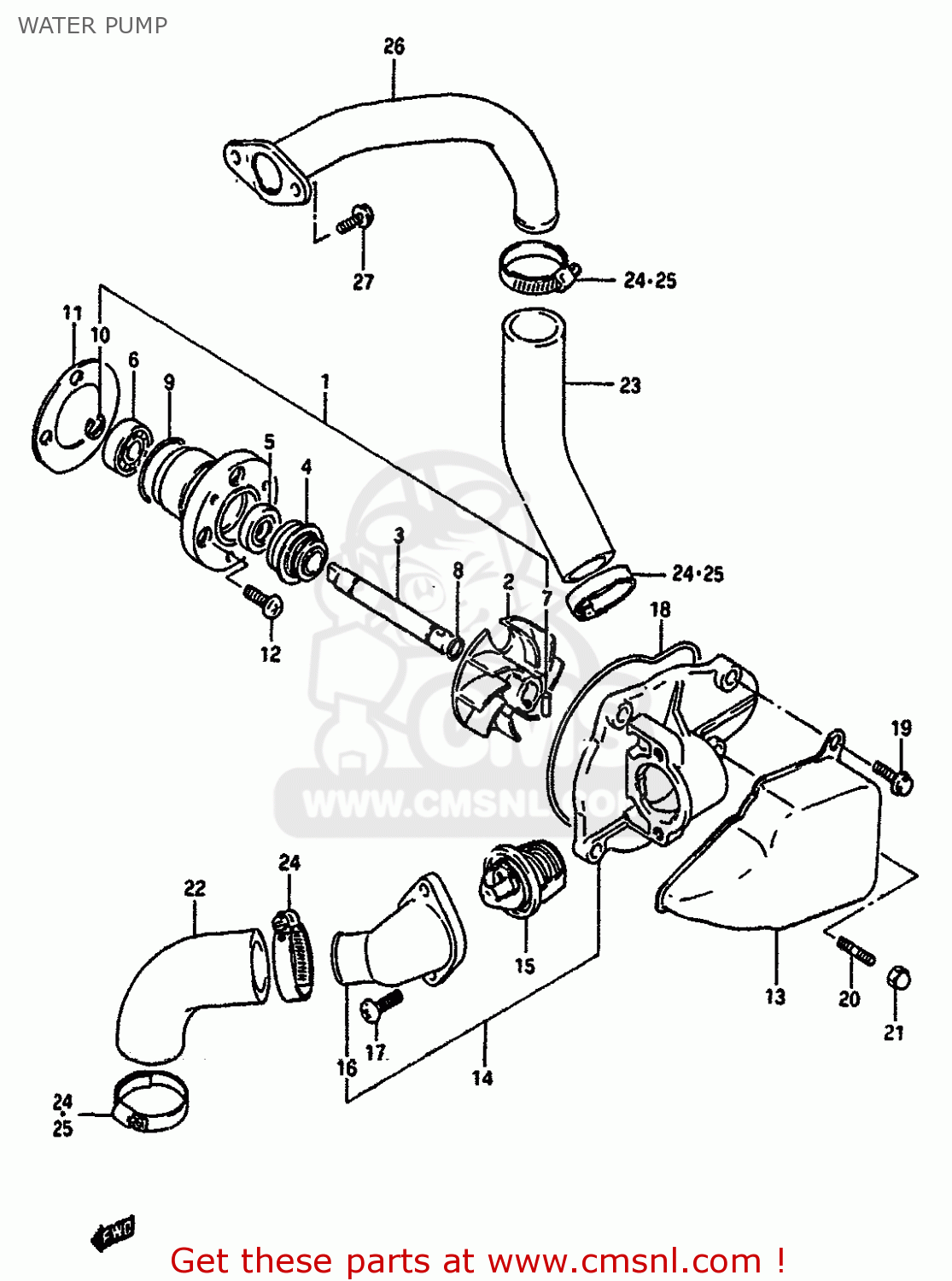

Water pump diagram VS750GLF 1988 (J) (E04 E18 E22 E34 E75 E77)

WATER PUMP VS750GLF 1988 (J) (E04 E18 E22 E34 E75 E77)

WATER PUMP VS750GLF 1988 (J) (E04 E18 E22 E34 E75 E77)

prices are in EUR

ref

part #

description

quantity

1

1740038A02
ref: 1
-17400-38A01

PUMP ASSEMBLY,WATER

€ 133.50

2

1749138A00
ref: 2

IMPELLER

€ 12.50

3

1751138A00
ref: 3

SHAFT

€ 30.50

4

1747046A00
ref: 4

SEAL,MECHANICAL

€ 21.50

5

1746138A00
ref: 5

OILSEAL

€ 4.50

6

1745138A00
ref: 6

BEARING,10X26X8

€ 13.00

7

1751638A00
ref: 7

PIN

€ 4.00

8

1751538A00
ref: 8

O RING

€ 1.50

9

1741738A00
ref: 9

O RING

€ 2.50

10

0833211086
ref: 10

E RING

€ 2.00

11-1

1743138A00
ref: 11-1
MODEL F/G/H/J/K/L

GASKET,WATER PUMP CASE (NAS)

€ 5.00

11-2

1743138A10
ref: 11-2
MODEL M

GASKET,WATER PUMP (NAS)

€ 5.00

11-3

1743138A00H17
ref: 11-3
E17,E77 (SWEDEN)

GASKET,WATER PUMP CASE

€ 5.00

12

0211206126
ref: 12

SCREW

€ 1.50

13

1744138A02
ref: 13

COVER,WATER PUMP

€ 19.00

14

1741038A00
ref: 14

CASE ASSY,WATER PUMP

€ 166.50

15

1767033410
ref: 15

THERMOSTAT,WATER

€ 37.00

16

1741238A00
ref: 16

CONNECTOR

€ 47.00

17

0211206167
ref: 17

SCREW

€ 2.50

18

1743538A00
ref: 18

O RING,WATER PUMP CAP

€ 5.00

19

0154706207
ref: 19

BOLT

€ 2.50

20

0910806046
ref: 20

STUD

€ 4.50

21

0831311067
ref: 21

NUT

€ 2.00

22

1785738A02
ref: 22

HOSE,WATER PUMP IN

€ 16.50

23

1785838A01
ref: 23

HOSE,WATER

€ 16.50

24-1

0940230501
ref: 24-1
MODEL F/G

CLAMP

€ 11.50

24-2

0940230501
ref: 24-2
MODEL H/J/K/L

CLAMP

€ 11.50

25

0940230502
ref: 25
MODEL H/J/K/L

CLAMP

€ 11.50

26

1789038A00
ref: 26

PIPE,CYLINDER INLET

€ 45.50

27

0154706167
ref: 27

BOLT

€ 2.00
