FUEL COCK (MODEL S/T/V)

VS800GL 1995 (S) (E02 E04 E17 E18 E22 E25 E34 E37)

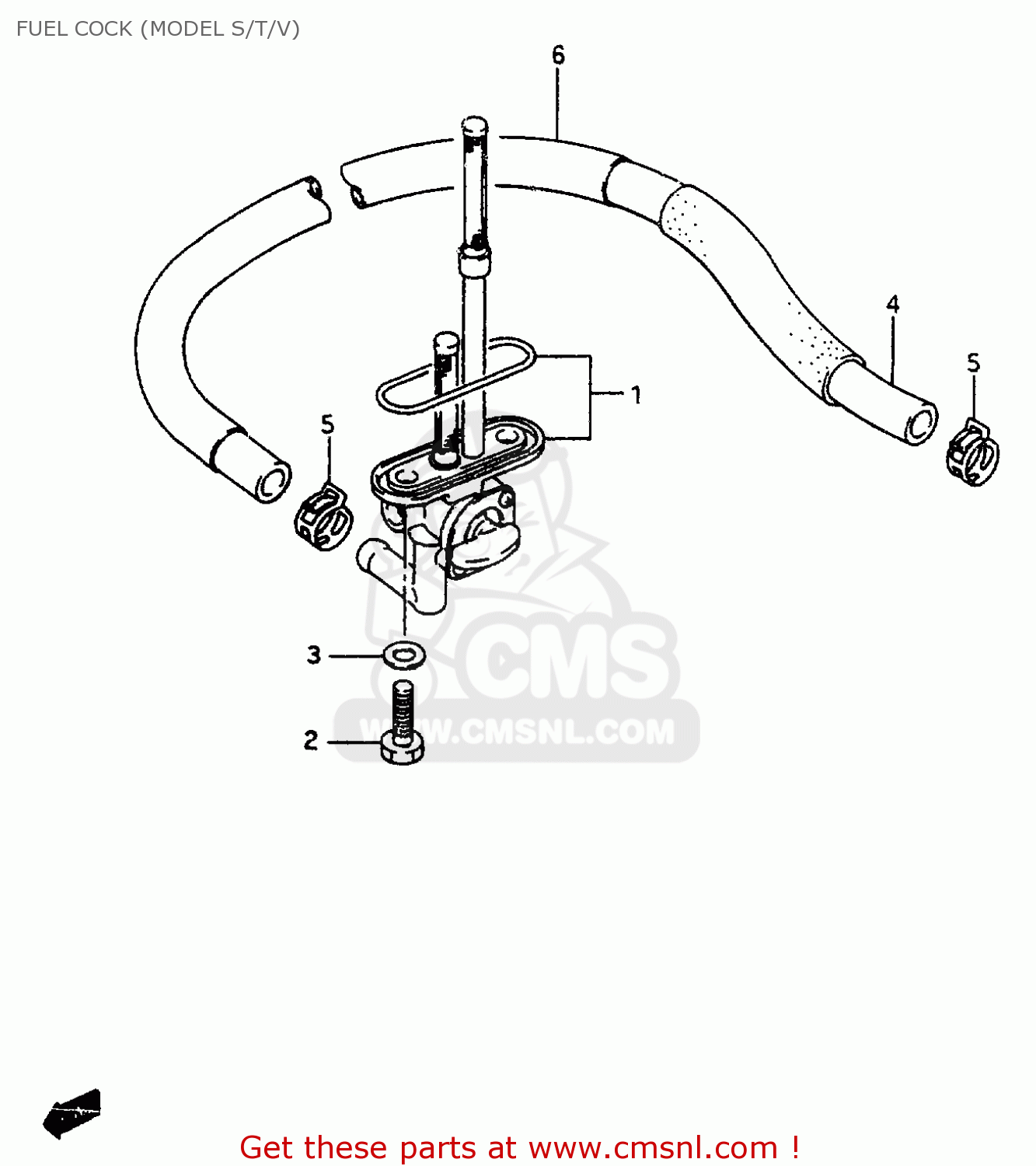

Fuel cock (model s/t/v) diagram VS800GL 1995 (S) (E02 E04 E17 E18 E22 E25 E34 E37)

FUEL COCK (MODEL S/T/V) VS800GL 1995 (S) (E02 E04 E17 E18 E22 E25 E34 E37)

FUEL COCK (MODEL S/T/V) VS800GL 1995 (S) (E02 E04 E17 E18 E22 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

1

4430038A72
ref: 1

COCK ASSY,FUEL

€ 174.00

2

0912806057
ref: 2

BOLT(6X20)

€ 2.00

3

0916806026
ref: 3

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

4

4432038A02
ref: 4

HOSE,FUEL PUMP & COCK

€ 11.00

5

0940111407
ref: 5

CLIP

€ 2.50

6

4431138A01
ref: 6

TUBE,FUEL HOSE

€ 13.50

6

4431138A01
ref: 6

TUBE,FUEL HOSE

€ 13.50
