Buy Suzuki VS Parts Online


SECONDARY DRIVE GEAR

VS800GL 1995 (S) (E02 E04 E17 E18 E22 E25 E34 E37)

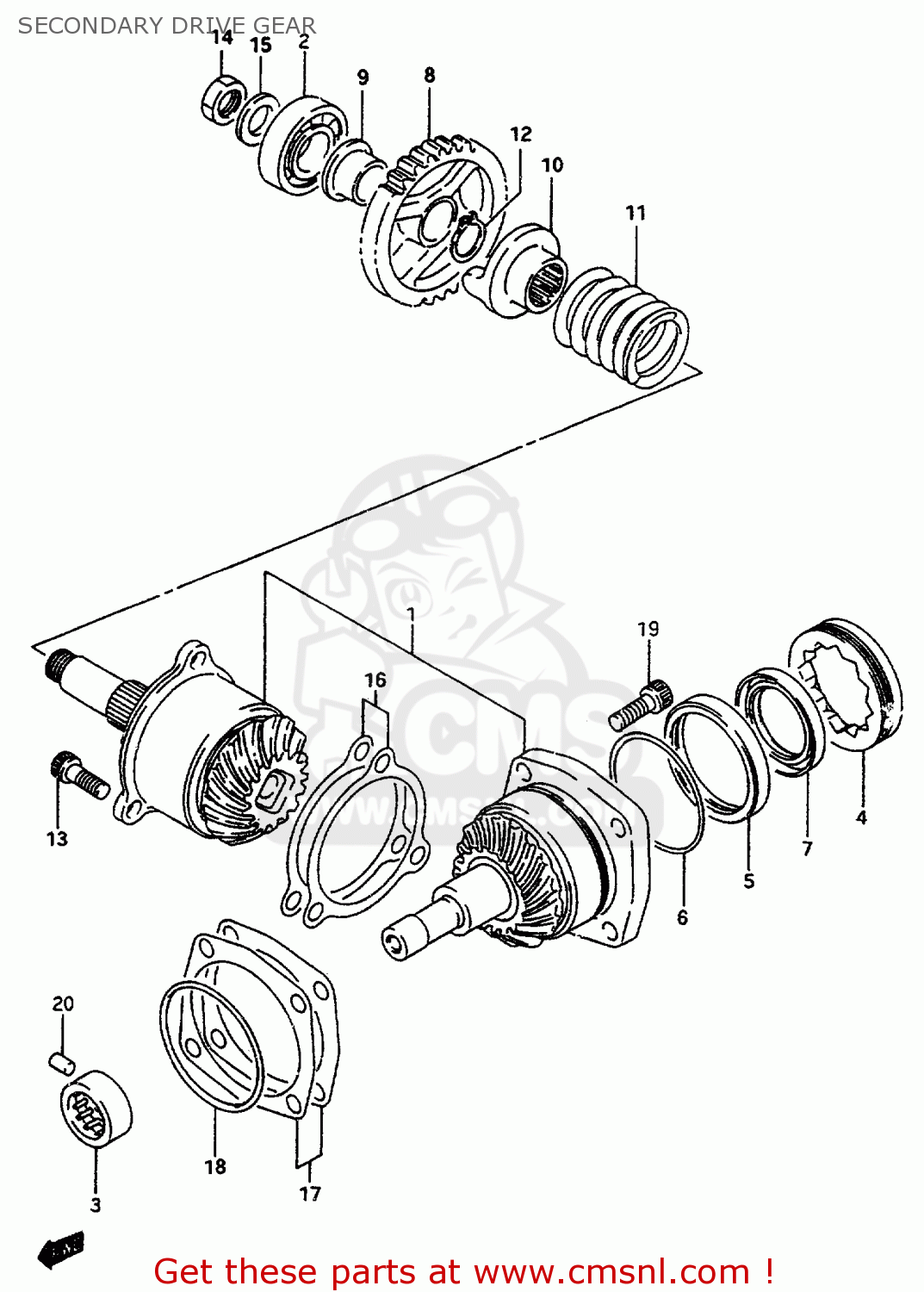

Secondary drive gear diagram VS800GL 1995 (S) (E02 E04 E17 E18 E22 E25 E34 E37)

SECONDARY DRIVE GEAR VS800GL 1995 (S) (E02 E04 E17 E18 E22 E25 E34 E37)
SECONDARY DRIVE GEAR VS800GL 1995 (S) (E02 E04 E17 E18 E22 E25 E34 E37)
SECONDARY DRIVE GEAR VS800GL 1995 (S) (E02 E04 E17 E18 E22 E25 E34 E37)
prices are in EUR
ref
part #
description
quantity
1
2490038822
ref: 1
GEAR & HOUSING SET,SECONDARY
€ 1,238.50
2
0926220073
ref: 2
BEARING(20X52X15)
0926220073
€ 19.00
3
0926320038
ref: 3
BEARING(20X34X16)
0926320038
€ 30.50
4
2494238A50
ref: 4
STOPPER,SEC DRIVEN BEARING
2494238A50
€ 34.50
5
2494338A50
ref: 5
HOUSING,OIL SEAL
2494338A50
€ 54.50
6
0928060003
ref: 6
O RING(D:1.2,ID:59.6)
0928060003
€ 2.00
7
0928338016
ref: 7
SEAL,OIL(38X54X8.5)
0928338016
€ 12.00
8
2463138A00
ref: 8
GEAR,REDUCTION DRIVEN(NT:30)
€ 95.50
9
2463238A00
ref: 9
BUSH,REDUCTION DRIVEN GEAR
2463238A00
€ 13.00
10
2492238A00
ref: 10
DOG,OUTPUT CAM
2492238A00
€ 42.00
11
0944044002
ref: 11
SPRING
€ 15.50
12
0833131216
ref: 12
CIRCLIP
0833131216
€ 2.00
13-1
0711008256
ref: 13-1
MODEL N/P
BOLT
€ 3.50
13-2
0713008253
ref: 13-2
MODEL R/S/T/V
BOLT
0713008253
€ 3.50
14
0914016005
ref: 14
-09140-16014
NUT
0914016005
€ 4.50
15
0916016029
ref: 15
WASHER(16X29X4)
0916016029
€ 6.00
16
2493538810
ref: 16
T:0.3/0.35/0.4/0.5/0
SHIM SET,SEC DRIVE GEAR
2493538810
€ 17.00
17
2494505810
ref: 17
T:0.3/0.35/0.4/0.5/0
SHIM SET,SEC DRIVEN HOUSING
2494505810
€ 20.00
18
0928067004
ref: 18
O RING(D:2.1,ID:66.2)
0928067004
€ 2.50
19-1
0711008256
ref: 19-1
MODEL N/P
BOLT
€ 3.50
19-2
0713008253
ref: 19-2
MODEL R/S/T/V
BOLT
0713008253
€ 3.50
20
0422107129
ref: 20
PIN
0422107129
€ 1.50
