HEADLAMP HOUSING

VS800GL 1995 (S) (E02 E04 E17 E18 E22 E25 E34 E37)

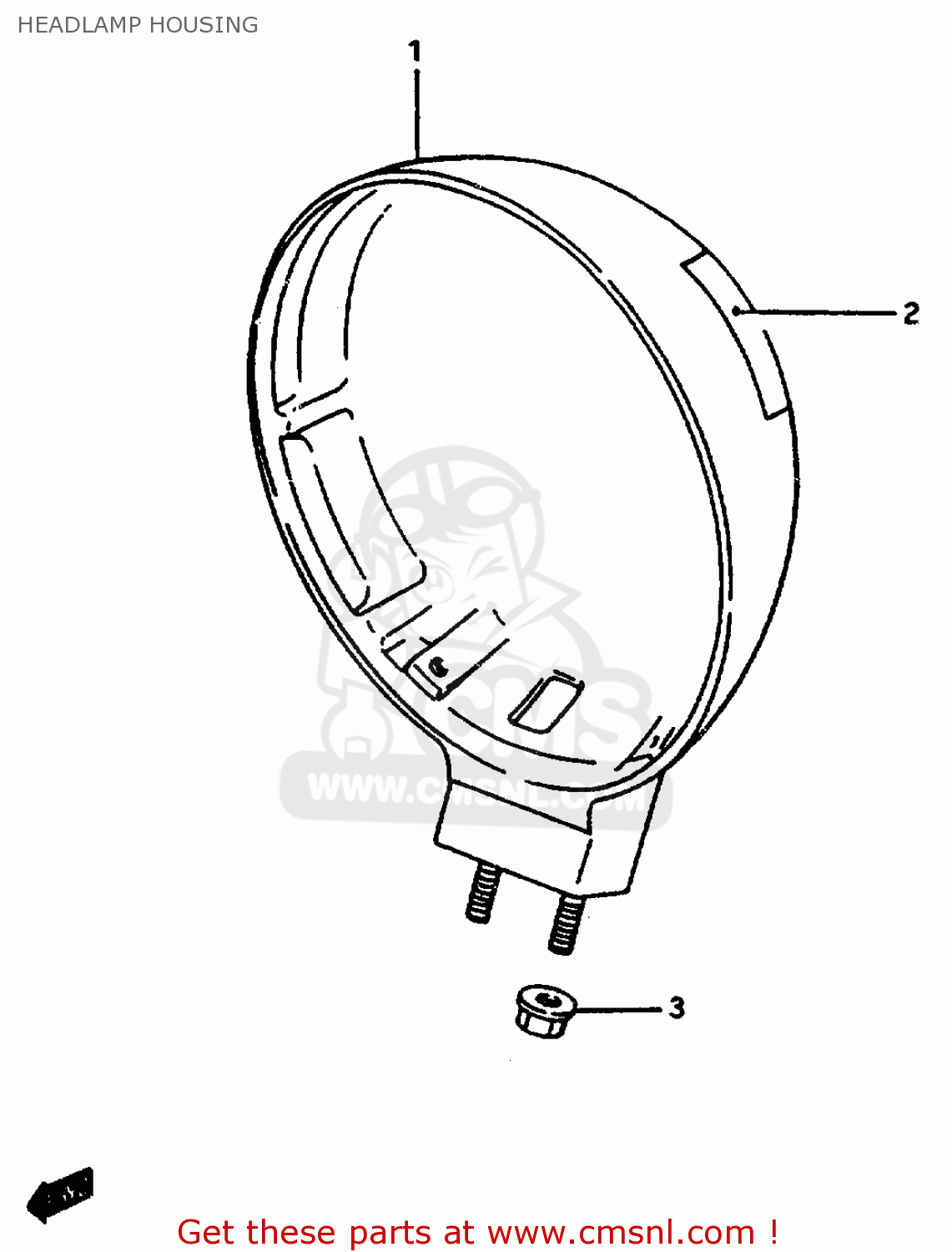

Headlamp housing diagram VS800GL 1995 (S) (E02 E04 E17 E18 E22 E25 E34 E37)

prices are in EUR

ref

part #

description

quantity

1-1

5181038A01
ref: 1-1
MODEL N/P/R

HOUSING,HEADLAMP

€ 111.00

1-2

5181038A02
ref: 1-2
MODEL S/T/V

HOUSING,HEADLAMP

€ 111.00

4735838A00
ref: 2

TAPE,FRAME HEAD COVER

€ 7.00

3-1

0831931067
ref: 3-1
MODEL N/P/R

NUT

€ 2.50

3-2

0831931063
ref: 3-2
MODEL S/T/V

NUT

€ 2.50
