Buy Suzuki VS Parts Online


FUEL TANK (MODEL N/P/R)

VS800GL INTRUDER 1992 (N) USA (E03)

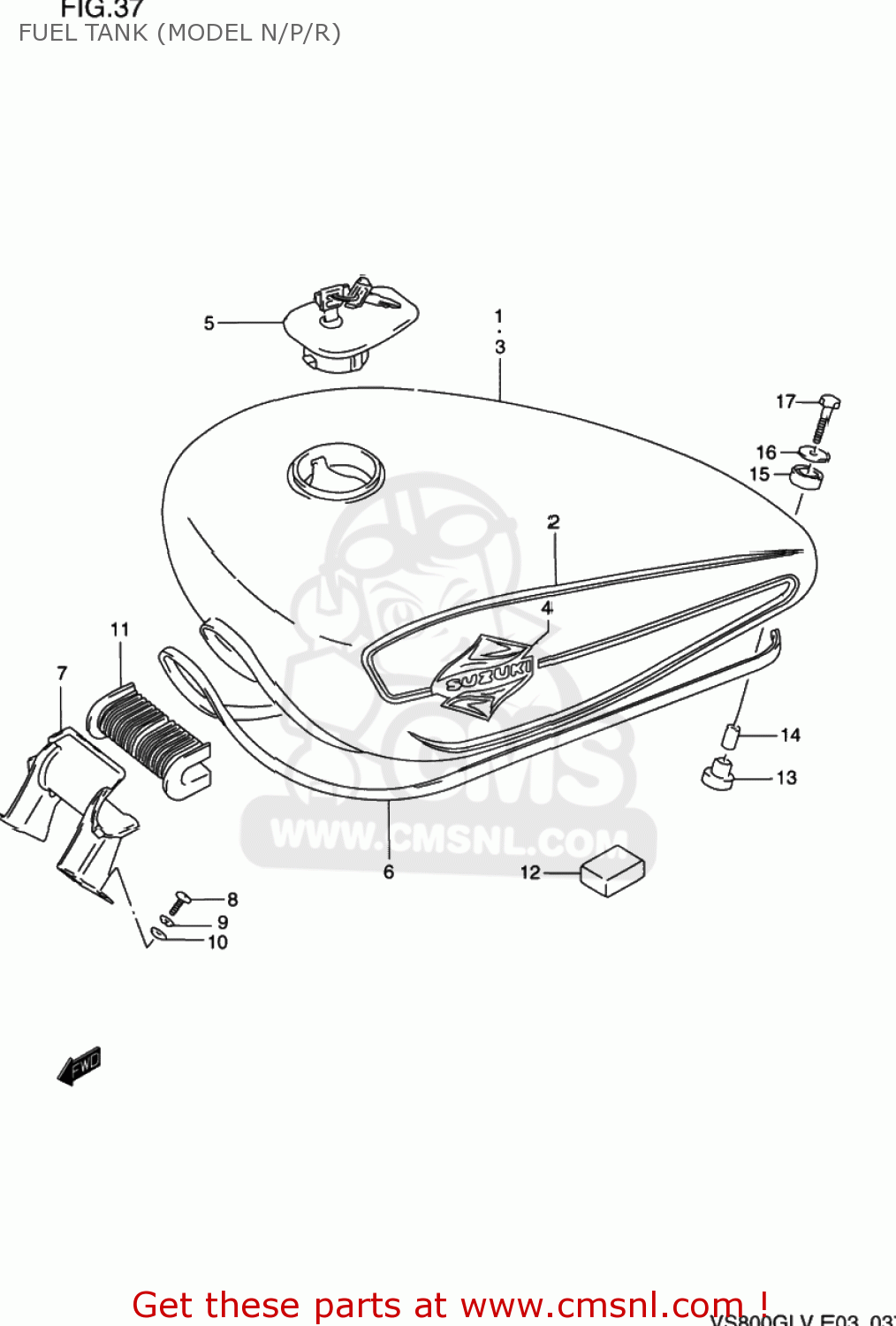

Fuel tank (model n/p/r) diagram VS800GL INTRUDER 1992 (N) USA (E03)

FUEL TANK (MODEL N/P/R) VS800GL INTRUDER 1992 (N) USA (E03)
FUEL TANK (MODEL N/P/R) VS800GL INTRUDER 1992 (N) USA (E03)
FUEL TANK (MODEL N/P/R) VS800GL INTRUDER 1992 (N) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4410039A2003F
ref: 1-1
44100-39A31-03F
TANK ASSEMBLY,FUEL
€ 414.50
1-2
4410039A2010X
ref: 1-2
44100-39A31-10X
TANK ASSEMBLY,FUEL
€ 790.50
1-3
4410039A4003F
ref: 1-3
TANK ASSEMBLY,FUEL
€ 485.00
1-4
4410039A4010X
ref: 1-4
44110-38A12-YD8
TANK ASSEMBLY,FUEL
€ 485.00
2-1
6811039A01M54
ref: 2-1
TAPE SET,FUEL TANK
€ 135.00
2-2
6811039A01M55
ref: 2-2
TAPE SET,FUEL TANK
6811039A01M55
€ 155.00
3-1
4410039A5019A
ref: 3-1
44100-39A61-19A
TANK ASSEMBLY,FUEL
€ 690.00
3-2
4410039A500CG
ref: 3-2
44100-39A61-0CG
TANK ASSEMBLY,FUEL
€ 414.50
3-3
4410039A5033J
ref: 3-3
44100-39A61-33J
TANK ASSEMBLY,FUEL
€ 690.00
3-4
4410039A7019A
ref: 3-4
44100-39A71-19A
TANK ASSEMBLY,FUEL
€ 272.50
3-5
4410039A700CG
ref: 3-5
44100-39A71-0CG
TANK ASSEMBLY,FUEL
€ 485.00
3-6
4410039A7033J
ref: 3-6
44110-38A12-YD8
TANK ASSEMBLY,FUEL
€ 485.00
4-1
6811139A01M55
ref: 4-1
EMBLEM,FUEL TANK
6811139A01M55
€ 29.00
4-2
6811139A01C2P
ref: 4-2
EMBLEM,FUEL TANK
6811139A01C2P
€ 28.50
5-1
4420038820
ref: 5-1
CAP SET,FUEL TANK
4420038820
€ 107.50
5-2
4420038850
ref: 5-2
CAP SET,FUEL TANK
4420038850
€ 135.50
5-3
4420038860
ref: 5-3
CAP SET,FUEL TANK
4420038860
€ 135.50
5-4
4420038870
ref: 5-4
ENGRAVED GAS CAP SET,G
4420038870
€ 136.50
6
6824127A00
ref: 6
68241-04X50-00B
MOLDING,FUEL TANK
6824127A00
€ 23.00
7-1
4425038A0103F
ref: 7-1
44250-38A01-019
BRACKET COMP,FUEL TANK
€ 56.00
7-2
4425038A0119A
ref: 7-2
44250-38A01-019
BRACKET COMP,FUEL TANK
€ 56.00
7-3
4425038A010CG
ref: 7-3
44250-38A01-019
BRACKET COMP,FUEL TANK
€ 56.00
7-4
4425038A0133J
ref: 7-4
44250-38A01-019
BRACKET COMP,FUEL TANK
€ 56.00
8-1
0214206164
ref: 8-1
02142-0616A
SCREW
0214206164
€ 2.50
8-2
0211276163
ref: 8-2
02112-7616A
SCREW
0211276163
€ 2.00
9
0832121064
ref: 9
08321-0106A
WASHER,LOCK
0832121064
€ 2.00
10
0832221064
ref: 10
08322-0106B
WASHER
0832221064
€ 2.00
11
4451138A01
ref: 11
CUSHION,FUEL TANK FR
4451138A01
€ 10.50
12
4451238B00
ref: 12
56314-48B10
CUSHION
4451238B00
€ 6.00
13
0932010020
ref: 13
CUSHION
0932010020
€ 4.00
14
0918006091
ref: 14
09180-06273
SPACER (6.4X9X21.5)
0918006091
€ 5.50
15
0932014013
ref: 15
CUSHION
0932014013
€ 3.00
16
0916006072
ref: 16
09160-06501
WASHER (6.5X24X1.6)
0916006072
€ 2.00
17
0912806055
ref: 17
01500-0635A
SCREW
0912806055
€ 2.50
