FUEL TANK (MODEL S/T)

VS800GL INTRUDER 1992 (N) USA (E03)

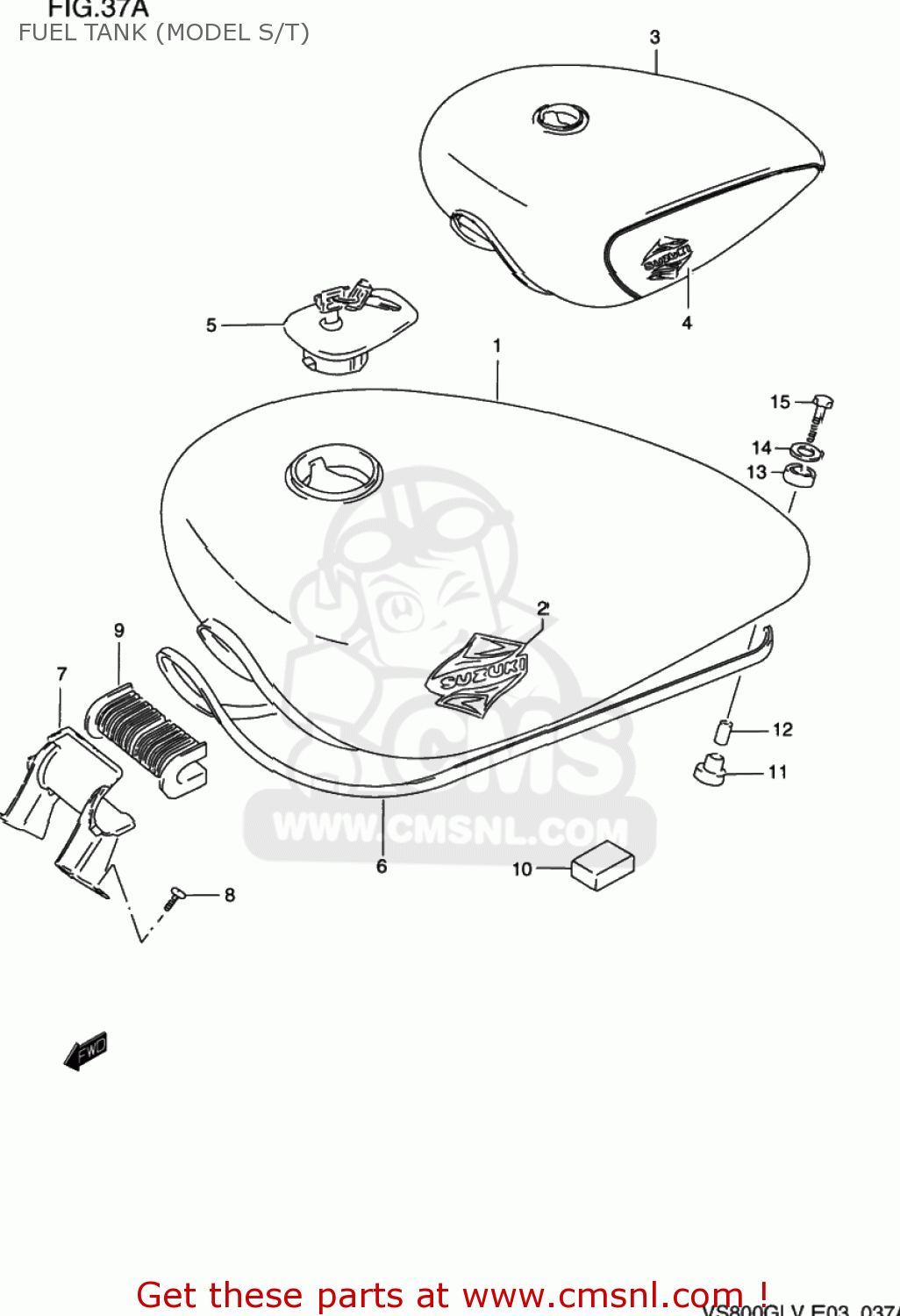

Fuel tank (model s/t) diagram VS800GL INTRUDER 1992 (N) USA (E03)

FUEL TANK (MODEL S/T) VS800GL INTRUDER 1992 (N) USA (E03)
FUEL TANK (MODEL S/T) VS800GL INTRUDER 1992 (N) USA (E03)
FUEL TANK (MODEL S/T) VS800GL INTRUDER 1992 (N) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4410039A8020F
ref: 1-1
44100-39A91-20F
TANK ASSEMBLY,FUEL
€ 462.00
1-2
4410039A8033J
ref: 1-2
44100-39A91-33J
TANK ASSEMBLY,FUEL
€ 564.50
1-3
4410039AA020F
ref: 1-3
TANK ASSY,FUEL(MAROON)
€ 0.00
1-4
4410039AA033J
ref: 1-4
TANK ASSEMBLY,FUEL
€ 399.00
2-1
6811138A21C1J
ref: 2-1
EMBLEM,FUEL TANK
€ 27.00
2-2
6811138A21C1K
ref: 2-2
EMBLEM,FUEL TANK
6811138A21C1K
€ 34.00
3-1
4410039AB02BX
ref: 3-1
44100-39AC1-2BX
TANK ASSEMBLY,FUEL
€ 453.50
3-2
4410039AB01ZV
ref: 3-2
44100-39AC1-1ZV
TANK ASSEMBLY,FUEL
€ 429.50
3-3
4410039AD02BX
ref: 3-3
TANK ASSY,FUEL(BROWN)
€ 0.00
3-4
4410039AD01ZV
ref: 3-4
44110-38A12-YD8
TANK ASSEMBLY,FUEL
€ 485.00
4-1
6811038B00E6Y
ref: 4-1
TAPE SET,FUEL TANK
€ 140.00
4-2
6811038B00E7A
ref: 4-2
TAPE SET,FUEL TANK
€ 148.50
5-1
4420038820
ref: 5-1
CAP SET,FUEL TANK
4420038820
€ 107.50
5-2
4420038850
ref: 5-2
CAP SET,FUEL TANK
4420038850
€ 135.50
5-3
4420038860
ref: 5-3
CAP SET,FUEL TANK
4420038860
€ 135.50
5-4
4420038870
ref: 5-4
ENGRAVED GAS CAP SET,G
4420038870
€ 136.50
6
6824127A00
ref: 6
68241-04X50-00B
MOLDING,FUEL TANK
6824127A00
€ 23.00
7-1
4425038A0120F
ref: 7-1
44250-38A01-019
BRACKET COMP,FUEL TANK
€ 56.00
7-2
4425038A01019
ref: 7-2
BRACKET,FUEL TANK FR
4425038A01019
€ 56.00
8
0211276163
ref: 8
02112-7616A
SCREW
0211276163
€ 2.00
9
4451138A01
ref: 9
CUSHION,FUEL TANK FR
4451138A01
€ 10.50
10
4451238B00
ref: 10
56314-48B10
CUSHION
4451238B00
€ 6.00
11
0932010020
ref: 11
CUSHION
0932010020
€ 4.00
12
0918006091
ref: 12
09180-06273
SPACER (6.4X9X21.5)
0918006091
€ 5.50
13
0932014013
ref: 13
CUSHION
0932014013
€ 3.00
14
0916006072
ref: 14
09160-06501
WASHER (6.5X24X1.6)
0916006072
€ 2.00
15
0912806055
ref: 15
01500-0635A
SCREW
0912806055
€ 2.50
