SEAT (MODEL N/P/R/S)
VS800GL INTRUDER 1992 (N) USA (E03)

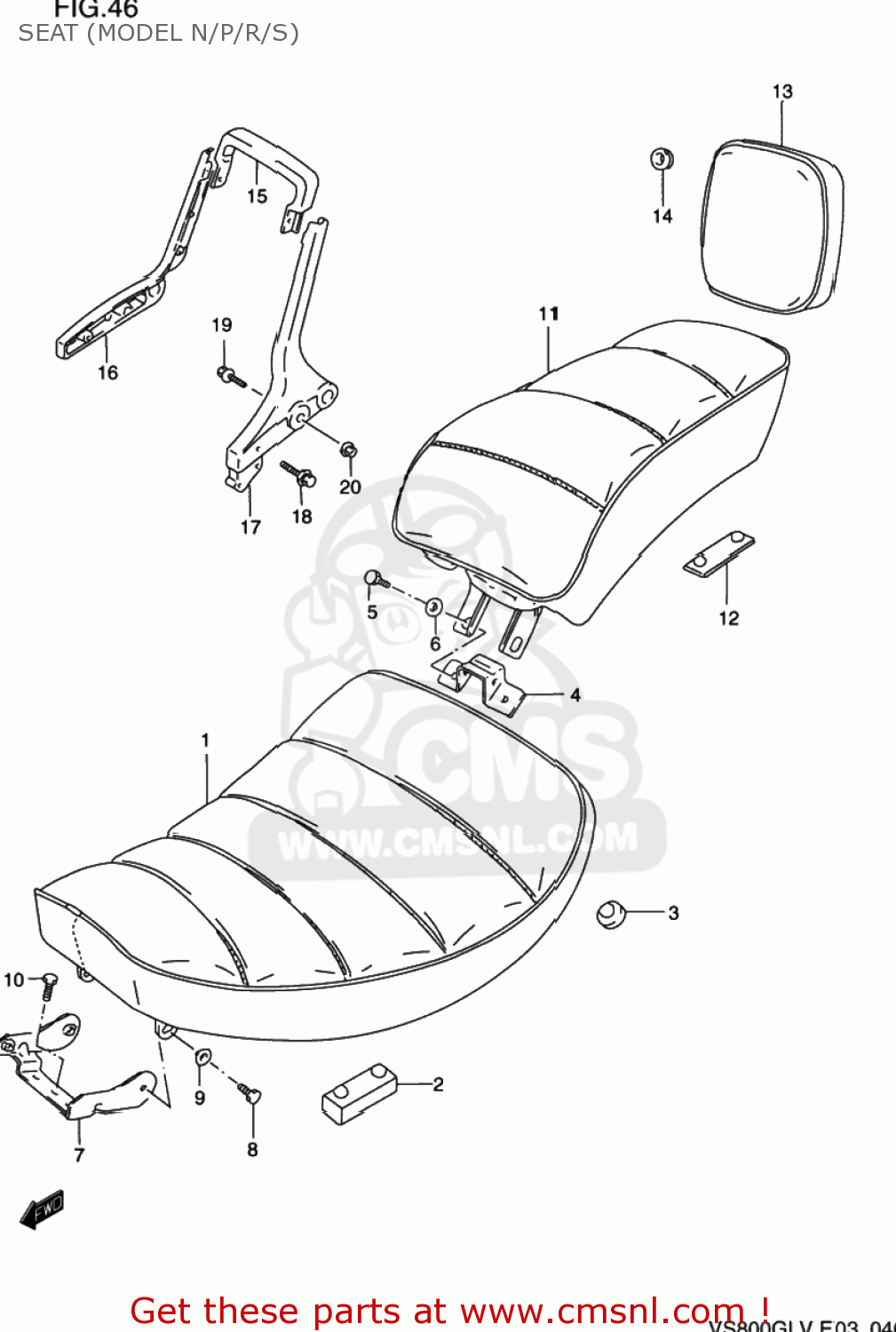

Seat (model n/p/r/s) diagram VS800GL INTRUDER 1992 (N) USA (E03)
SEAT (MODEL N/P/R/S) VS800GL INTRUDER 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4510038A415KR
ref: 1-1
45100-38A43-5KR
SEAT ASSEMBLY
€ 588.00
1-2
4510038A425KR
ref: 1-2
45100-38A43-5KR
SEAT SET
€ 588.00
2
4514943500
ref: 2
CUSHION,SEAT
€ 3.00
3
0932110012
ref: 3
CUSHION
€ 3.00
4
4511938A00
ref: 4
PLATE,FR SEAT HOOK & RR
€ 7.50
5-1
0158006163
ref: 5-1
01580-0616A
BOLT
€ 2.50
5-2
0155006163
ref: 5-2
01550-0616A
BOLT
€ 2.50
6
0916906037
ref: 6
WASHER
€ 6.50
7-1
4521038A0203F
ref: 7-1
45210-38A03
BRACKET,SEAT,FRONT
€ 18.50
7-2
4521038A0219A
ref: 7-2
45210-38A03
BRACKET,SEAT,FRONT
€ 18.50
7-3
4521038A020CG
ref: 7-3
45210-38A03
BRACKET,SEAT,FRONT
€ 18.50
7-4
4521038A03
ref: 7-4
BRACKET,SEAT FR
€ 18.50
8-1
0158006163
ref: 8-1
01580-0616A
BOLT
€ 2.50
8-2
0155006163
ref: 8-2
01550-0616A
BOLT
€ 2.50
9
0916906037
ref: 9
WASHER
€ 6.50
10-1
0117706166
ref: 10-1
01580-0616A
BOLT
€ 2.00
10-2
0155006163
ref: 10-2
01550-0616A
BOLT
€ 2.50
11-1
4530038A405KR
ref: 11-1
45300-38AV0-5KR
SEAT ASSEMBLY,PILLION
€ 233.50
11-2
4530038A415KR
ref: 11-2
45300-38AV0-5KR
SEAT ASSEMBLY,PILLION
€ 233.50
12
4514914500
ref: 12
CUSHION
€ 6.50
13-1
4535038A405KR
ref: 13-1
45350-38A41-5KR
PAD ASSEMBLY,SEAT
€ 233.00
13-2
4535038A415KR
ref: 13-2
PAD ASSY,SEAT
€ 233.00
14
0932009026
ref: 14
09320-09045
CUSHION
€ 4.00
15
4621138B01
ref: 15
HANDLE,PILLION RIDER UPR
€ 69.00
16-1
4621238A21
ref: 16-1
46212-38A50
HANDLE,PILLION RIDER,RIGHT
€ 139.50
16-2
4621238A31
ref: 16-2
HANDLE,PILLION RIDER,R
€ 95.50
17-1
4621338A21
ref: 17-1
HANDLE,PILLION RIDER,L
€ 95.50
17-2
4621338A31
ref: 17-2
HANDLE,PILLION RIDER
€ 95.50
18
0158006353
ref: 18
01580-0635B
BOLT
€ 3.50
19
0158008453
ref: 19
01580-0845B
BOLT
€ 4.00
20
0831610083
ref: 20
08316-1008B
NUT
€ 3.00
