CLUTCH
VS800GL INTRUDER 1995 (S) USA (E03)

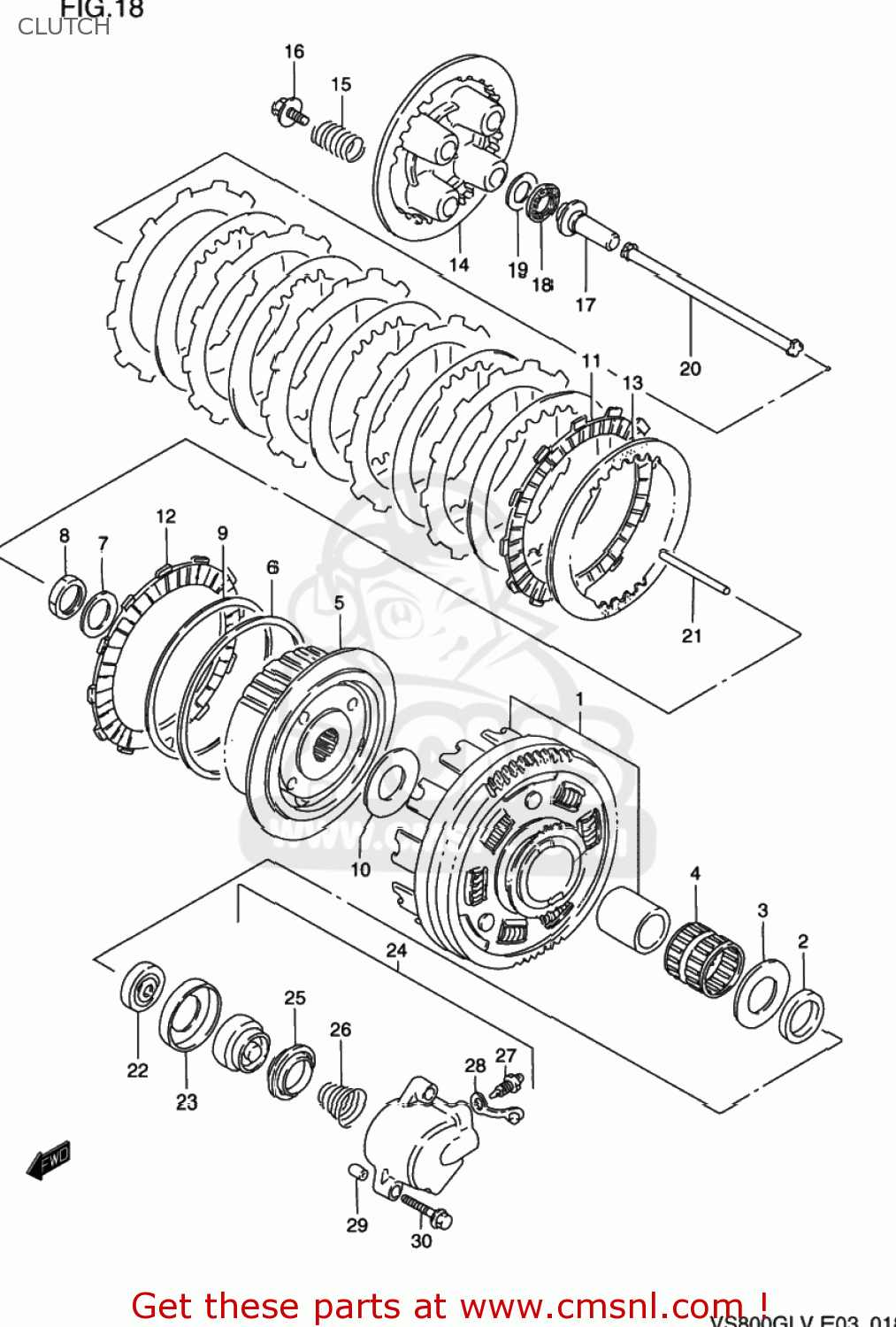

Clutch diagram VS800GL INTRUDER 1995 (S) USA (E03)
CLUTCH VS800GL INTRUDER 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2120038812
ref: 1-1
GEAR ASSY,PRI DRIVEN(NT:71)
€ 341.00
1-2
2120038840
ref: 1-2
GEAR ASSY,PRIMARY(NT:71)
€ 321.00
2
0918025077
ref: 2
SPACER(25X38X6.5)
€ 7.50
3
0916025055
ref: 3
WASHER(25X50X2.5)
€ 9.50
4
0926335017
ref: 4
BEARING(35X40X35.8)
€ 36.50
5
2141038A00
ref: 5
21410-41F00
HUB COMP,CLUTCH SLEEVE
€ 95.50
6
2147137400
ref: 6
SEAT,WAVE WASHER(T:1.4)
€ 8.00
7-1
0916422006
ref: 7-1
09164-22007
WASHER
€ 5.00
7-2
0916422007
ref: 7-2
WASHER
€ 5.00
8
0914022008
ref: 8
NUT
€ 4.50
9
0916400004
ref: 9
WASHER
€ 9.00
10
0916025055
ref: 10
WASHER(25X50X2.5)
€ 9.50
11
2144137400
ref: 11
PLATE,CLUTCH DRIVE (NAS)
€ 20.50
12
2144237401
ref: 12
PLATE,CLUTCH DRIVE(T:3.5) (NAS)
€ 11.50
13
2145114A00
ref: 13
PLATE,CLUTCH DRIVEN(T:1.6) (NAS)
€ 6.50
14-1
2146238200
ref: 14-1
21462-27A00
DISC,CLUTCH PRESSURE
€ 37.00
14-2
2146227A00
ref: 14-2
DISC,CLUTCH PRESSURE
€ 37.00
15
0944020013
ref: 15
SPRING
€ 5.00
16-1
0911606016
ref: 16-1
09116-06168
BOLT
€ 2.50
16-2
0911606168
ref: 16-2
BOLT(6X16)
€ 2.50
17
2312107A00
ref: 17
23121-31E00
PIECE,CLUTCH PUSH
€ 18.50
18
0926315003
ref: 18
BEARING(15X28X2)
€ 7.00
19-1
0916015015
ref: 19-1
09160-15045
WASHER
€ 4.00
19-2
0916015045
ref: 19-2
WASHER(15.5X28X1)
€ 4.00
20
2311027A00
ref: 20
ROD,CLUTCH
€ 17.00
21
2311138A00
ref: 21
ROD,CLUTCH PUSH,L
€ 9.50
22
0928506017
ref: 22
SEAL,OIL(6X34X11)
€ 11.00
23
2311738A00
ref: 23
RETAINER,CL PUSH ROD OIL SEAL
€ 6.00
24
2316038A00
ref: 24
CYLINDER,CLUTCH RELEASE
€ 122.50
25
2316305A00
ref: 25
CUP,CLUTCH CYLINDER
€ 7.50
26
2316405A00
ref: 26
SPRING,CLUTCH CYLINDER
€ 3.50
27
5912101A00
ref: 27
BLEEDER
€ 8.50
28
5912201A00
ref: 28
CAP,BLEEDER
€ 4.50
29
0421109129
ref: 29
PIN
€ 2.00
30-1
0151706306
ref: 30-1
01550-0630A
BOLT
€ 2.50
30-2
0155006303
ref: 30-2
01550-0630A
BOLT
€ 2.50
