prices are in EUR
ref
part #
description
quantity
1-1

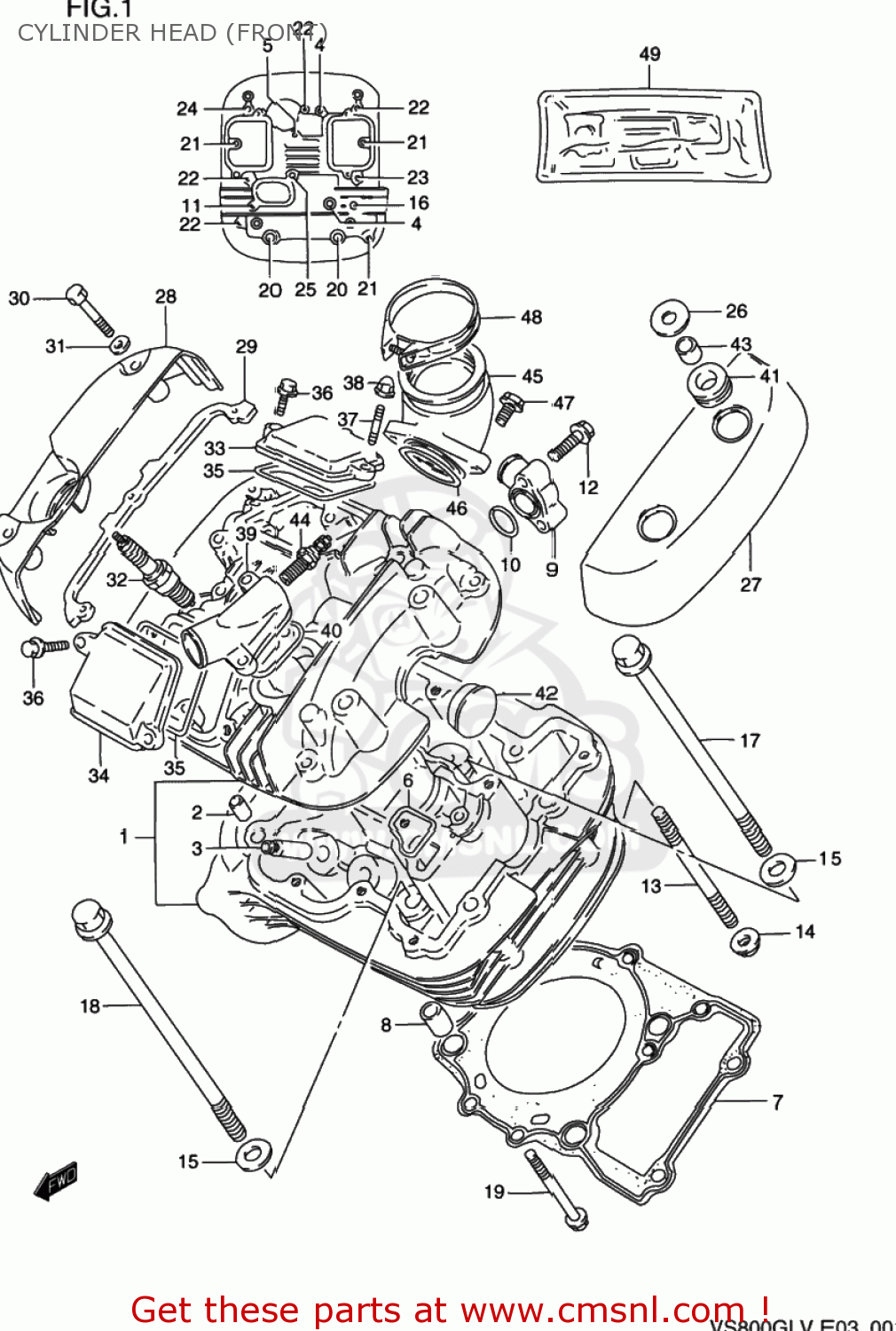

HEAD ASSEMBLY,CYLINDER,FRONT
1-2
HEAD ASSEMBLY,CYLINDER,FRONT
2
GUIDE,VALVE
3-1
PIN(11X14)
3-2
PIN(8.4X11X14)
4
BOLT(6X50)
5
BOLT(6X55)
6
GASKET,CYLINDER HEAD WATER (NAS)
7
GASKET,CYLINDER HEAD FR (NAS)
8-1
PIN
8-2
PIN
9-1
UNION,CYLINDER HEAD WATER
9-2
UNION,CYLINDER HEAD WATER
10-1
O RING(D:2.4,ID:17.8)
10-2
O-RING (D:2.4 ID:17.8)
11
BOLT
12-1
BOLT
12-2
SCREW
13
BOLT,STUD
14
NUT
15-1
WASHER(10.5X22X2.3)
15-2
WASHER (10.5X22X2.3)
16
BOLT(8X140)
17
BOLT(10X155)
18
BOLT(10X165)
19
BOLT
20
BOLT(8X245)
21
BOLT
22
BOLT
23
BOLT
24
BOLT
25
BOLT(6X55)
27
CAP,CYLINDER HEAD COVER FR,L
28
CAP,CYLINDER HEAD COVER FR,R
29
CUSHION,FR,R CAP
30-1
BOLT
31
WASHER
32-1
PLUG,SPARK(DPR8EA-9)
32-2
SPARK PLUG X24EPR-U9
32-3
PLUG,SPARK(DPR7EA-9)
32-4
SPARK PLUG X22EPR-U9
32-5
PLUG,SPARK(DPR9EA-9)
32-6
SPARK PLUG X27EPR-U9
33-2
CAP,INSP.INT
34-1
CAP,INSPECTION,EXHAUST
34-2
CAP,INSPECTION,EXHAUST
35
GASKET,INSPECTION CAP (NAS)
36
BOLT
37
STUD 6X16
38
NUT
39-2
UNION,WATER OUTLET
40
GASKET,WATER OUTLET UNION (NAS)
41
CUSHION
42-2
PLUG(OD:30)
43
BUSH
44-1
GAUGE ASSY,WATER TEMP
44-2
GAUGE ASSY,WATER TEMP
45-1
PIPE,INTAKE
46
O-RING (D:2.4 ID:39.7)
47-2
BOLT
48-2
CLAMP
