FRONT FORK (MODEL N/P/R/S)

VS800GL INTRUDER 1995 (S) USA (E03)

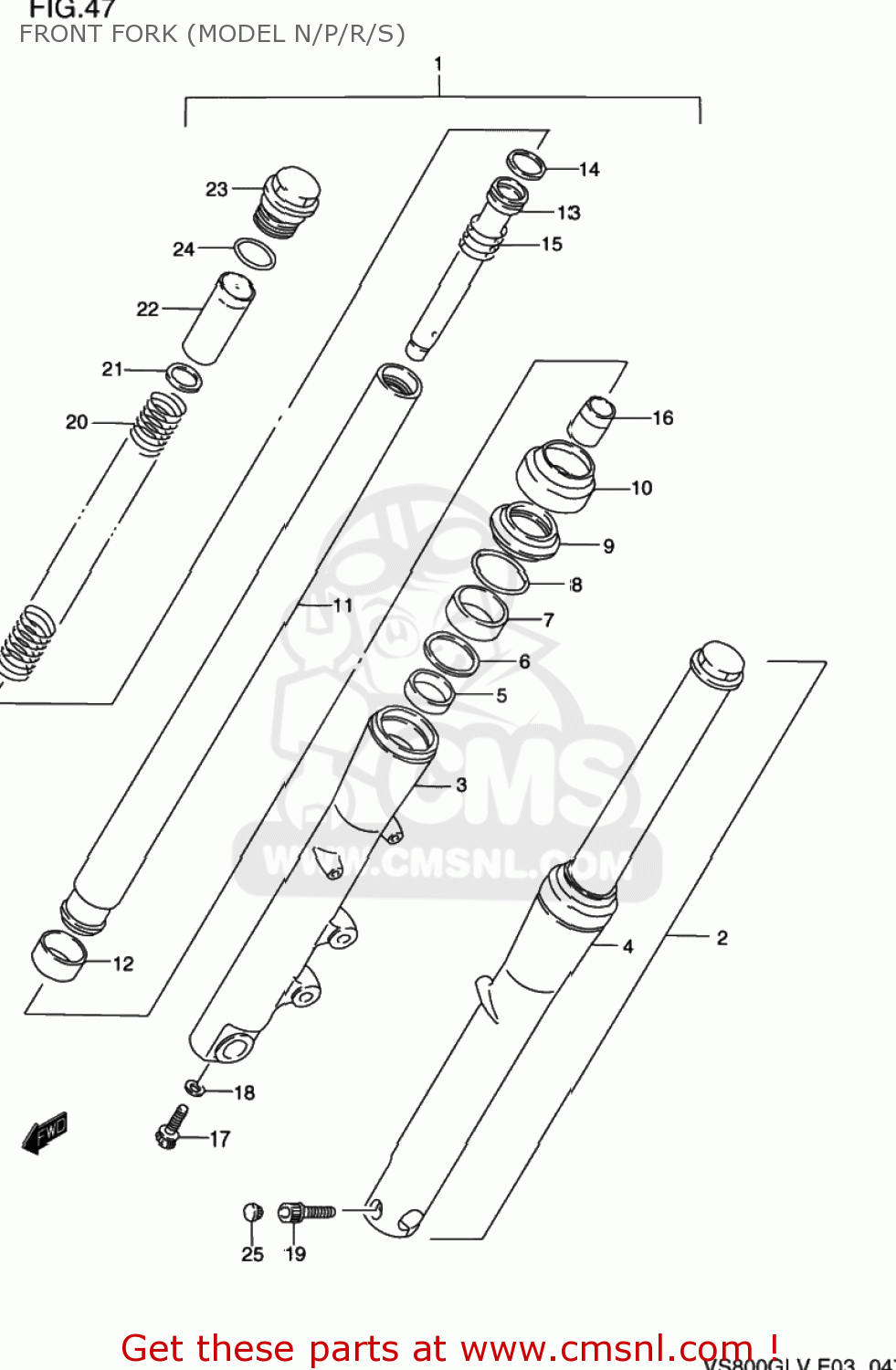

Front fork (model n/p/r/s) diagram VS800GL INTRUDER 1995 (S) USA (E03)

FRONT FORK (MODEL N/P/R/S) VS800GL INTRUDER 1995 (S) USA (E03)
FRONT FORK (MODEL N/P/R/S) VS800GL INTRUDER 1995 (S) USA (E03)
FRONT FORK (MODEL N/P/R/S) VS800GL INTRUDER 1995 (S) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
5110339A00
ref: 1
51103-39A41
DAMPER ASSEMBLY,RIGHT
€ 493.50
2
5110439A00
ref: 2
51104-39A41
DAMPER ASSEMBLY,LEFT
€ 493.50
3
5113139A00
ref: 3
TUBE,OUTER RH
5113139A00
€ 313.00
4
5114139A00
ref: 4
TUBE,OUTER LH
5114139A00
€ 313.00
5
5115239A00
ref: 5
51152-39A40
BUSHING,GUIDE
€ 24.00
6
5116839A00
ref: 6
SPACER,SEAL
5116839A00
€ 7.50
7-1
5115339A00
ref: 7-1
51153-19D00
OIL SEAL,FRONT FORK
5115339A00
€ 16.00
7-2
5115319D00
ref: 7-2
SEAL,OIL
5115319D00
€ 16.00
8-1
5155632B00
ref: 8-1
51156-32B00
CUSHION,HEADLAMP BRACKET
€ 6.50
8-2
5115632B00
ref: 8-2
RING,OIL SEAL STOPPER
5115632B00
€ 6.50
9-1
5157139A00
ref: 9-1
51173-19D00
BOOT
5157139A00
€ 17.50
9-2
5117319D00
ref: 9-2
SEAL,DUST
5117319D00
€ 17.50
10-1
5157239A00
ref: 10-1
51572-38B00
BAND,FRONT FORK COVER
5157239A00
€ 31.00
10-2
5157238B00
ref: 10-2
COVER,CASE
5157238B00
€ 31.00
11
5111039A00
ref: 11
51110-39A41
TUBE,FORK,INNER
€ 435.50
12-1
5112139A00
ref: 12-1
51121-19D00
BUSHING,SLIDE
€ 25.00
12-2
5112119D00
ref: 12-2
BUSH,SLIDE
5112119D00
€ 25.00
13
5114639A00
ref: 13
PIPE,SEAT
€ 66.00
14
5119632B00
ref: 14
RING,PISTON
5119632B00
€ 7.50
15
5117732B00
ref: 15
SPRING,REBOUND
5117732B00
€ 9.50
16
5119538B00
ref: 16
PIECE,OIL LOCK
5119538B00
€ 27.50
17
5114748130
ref: 17
BOLT(8X27)
5114748130
€ 3.50
18
5114836011
ref: 18
GASKET (NAS)
5114836011
€ 4.00
19
0713008357
ref: 19
BOLT
0713008357
€ 4.50
20
5117139A00
ref: 20
SPRING
5117139A00
€ 73.00
21
5117232B00
ref: 21
WASHER,SPRING
5117232B00
€ 6.00
22
5117639A00
ref: 22
COLLAR,SPRING
5117639A00
€ 12.00
23
5135139A00
ref: 23
BOLT,FORK
5135139A00
€ 77.00
24
5111739A00
ref: 24
O RING
5111739A00
€ 4.00
25
0925006009
ref: 25
CAP(OD:14.5)
0925006009
€ 3.50
