CRANKCASE COVER

VX800 1990 (L) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)

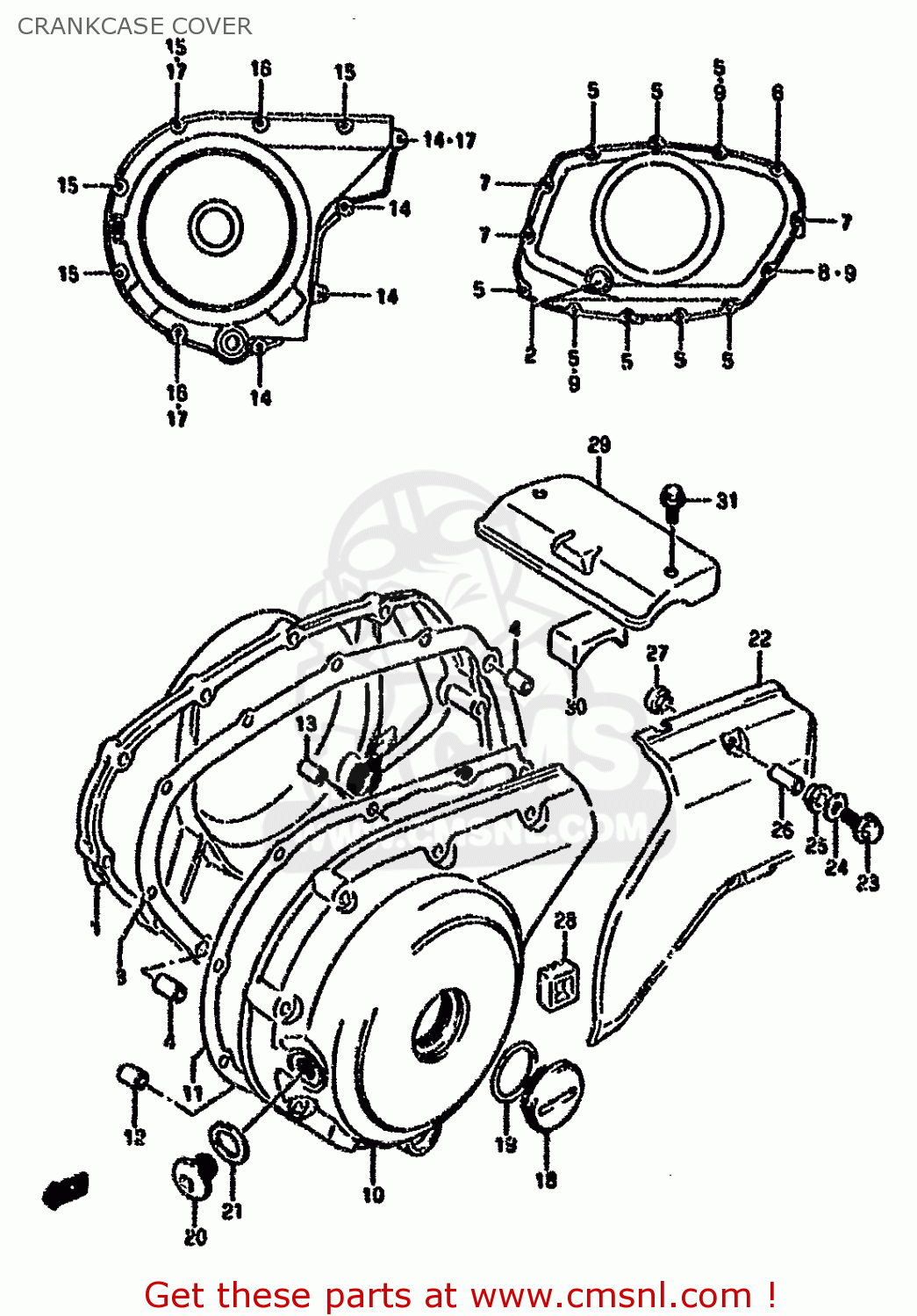

Crankcase cover diagram VX800 1990 (L) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)

CRANKCASE COVER VX800 1990 (L) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)
CRANKCASE COVER VX800 1990 (L) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)
CRANKCASE COVER VX800 1990 (L) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)
prices are in EUR
ref
part #
description
quantity
1
1134045C10
ref: 1
COVER,CLUTCH
1134045C10
€ 242.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148238A10
ref: 3
GASKET,CLUTCH COVER (NAS)
1148238A10
€ 15.50
4
0421109189
ref: 4
PIN
0421109189
€ 2.00
5
0154706307
ref: 5
BOLT
0154706307
€ 2.50
6
0154706357
ref: 6
BOLT
0154706357
€ 2.50
7
0154706457
ref: 7
BOLT
0154706457
€ 2.50
8
0154706607
ref: 8
BOLT
0154706607
€ 2.50
9-1
0916806023
ref: 9-1
MODEL L/M/N/P
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
9-2
0916806024
ref: 9-2
MODEL R/T
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
10
1135145C10
ref: 10
COVER,GENERATO
€ 378.50
11
1148338A00H17
ref: 11
GASKET,GENERATOR COVER (NAS)
1148338A00H17
€ 11.50
12
0920611005
ref: 12
PIN (11X20)(SUS)
€ 6.50
13
0421109189
ref: 13
PIN
0421109189
€ 2.00
14
0154706307
ref: 14
BOLT
0154706307
€ 2.50
15
0154706407
ref: 15
BOLT
0154706407
€ 2.50
16
0154706507
ref: 16
BOLT
0154706507
€ 2.50
17-1
0916806023
ref: 17-1
MODEL L/M/N/P
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
17-2
0916806024
ref: 17-2
MODEL R/T
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
18-1
0925936014
ref: 18-1
MODEL L/M/N/P
PLUG
0925936014
€ 10.50
18-2
0925936018
ref: 18-2
MODEL R/T
PLUG (36X10)
0925936018
€ 10.50
19
0928033004
ref: 19
O RING(D:3.1,ID:32.7)
0928033004
€ 2.50
20
0924814005
ref: 20
-09248-14011
PLUG,14X12
0924814005
€ 5.00
21
0916814002
ref: 21
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
22
1136145C10
ref: 22
COVER,SECONDARY GEAR CASE
€ 134.00
23
0154706457
ref: 23
BOLT
0154706457
€ 2.50
24
0916006097
ref: 24
WASHER
0916006097
€ 2.00
25
0916109006
ref: 25
WASHER(8.7X15X2.1)
0916109006
€ 2.50
26
0918006160
ref: 26
SPACER
0918006160
€ 3.50
27
0916109005
ref: 27
WASHER(8.7X16X5)
0916109005
€ 2.50
28
1136938A00
ref: 28
DAMPER,SECONDARY COVER
€ 7.50
29-1
3121038A00
ref: 29-1
MODEL L/M/N/P/R
COVER,STARTER MOTOR
€ 22.00
29-2
3121038A01
ref: 29-2
MODEL T
COVER,STARTER MOTOR
3121038A01
€ 22.00
30
3121238A00
ref: 30
DAMPER,MOTOR COVER
€ 4.50
31
0154705087
ref: 31
BOLT
0154705087
€ 2.00
