REAR MASTER CYLINDER

VX800 1990 (L) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)

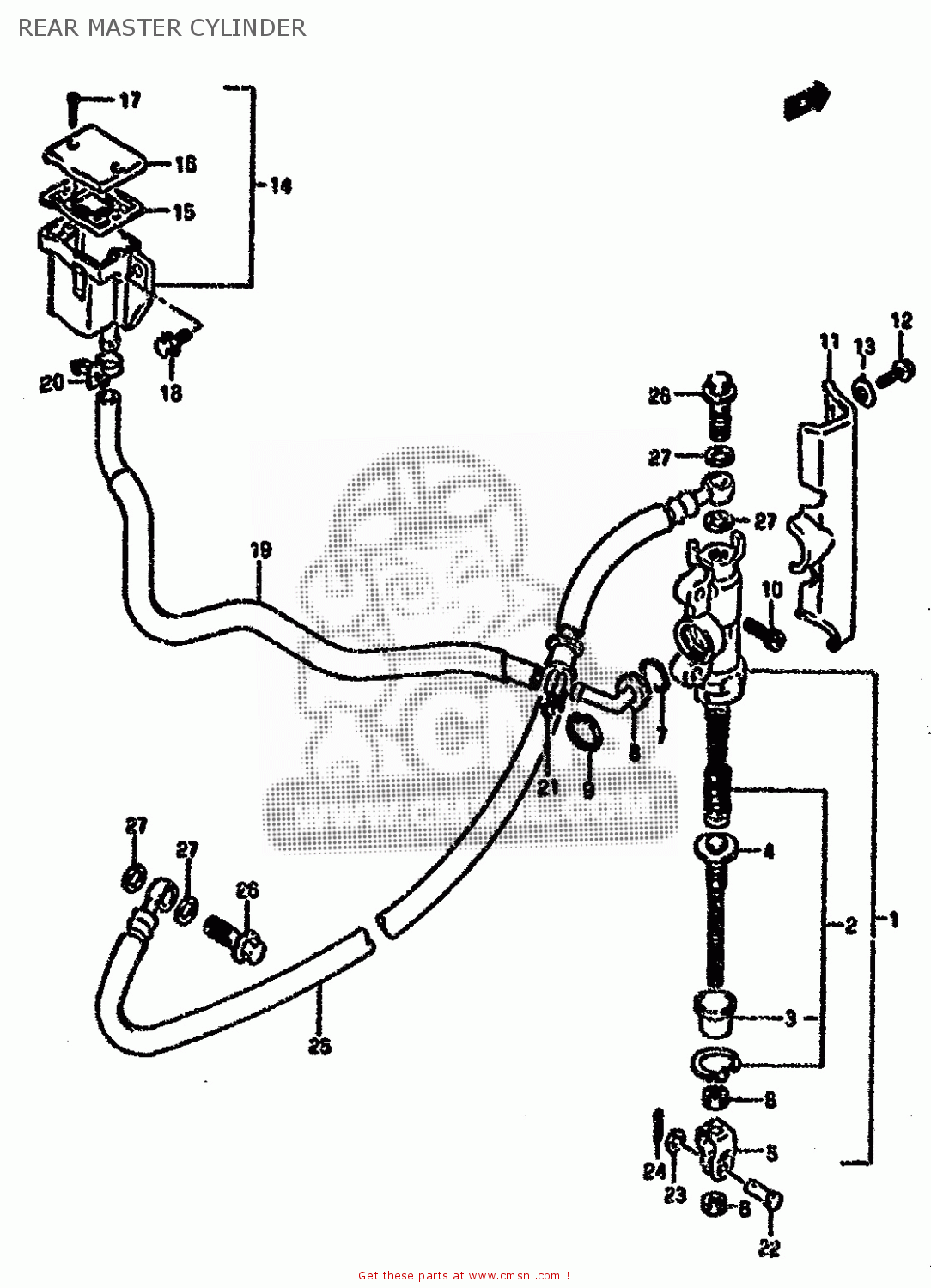

Rear master cylinder diagram VX800 1990 (L) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)

REAR MASTER CYLINDER VX800 1990 (L) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)
REAR MASTER CYLINDER VX800 1990 (L) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)
REAR MASTER CYLINDER VX800 1990 (L) (E01 E02 E04 E15 E16 E17 E18 E21 E22 24 25 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
6960045C00
ref: 1-1
MODEL L/M/N
CYLINDER ASSEMBLY,REAR MASTER
€ 155.50
1-2
6960045C01
ref: 1-2
MODEL P/R/T
CYLINDER ASSEMBLY,REAR MASTER
€ 155.50
2
6960004820
ref: 2
PISTON/CUP SET
6960004820
€ 31.00
3
6969100A00
ref: 3
BOOT
6969100A00
€ 3.50
4
6967045C00
ref: 4
ROD,PUSH
€ 19.00
5
6969222A00
ref: 5
YOKE
€ 10.00
6
6969322A00
ref: 6
NUT
€ 1.50
7
6968634200
ref: 7
O RING
6968634200
€ 3.50
8
6967200B20
ref: 8
CONNECTOR
6967200B20
€ 5.00
9
6967400B20
ref: 9
CIRCLIP
6967400B20
€ 3.00
10-1
0713006205
ref: 10-1
MODEL L/M/N/P
BOLT
€ 3.00
10-2
0713006203
ref: 10-2
MODEL R/T
BOLT,CRKCASE,R
0713006203
€ 3.00
11
6964145C00
ref: 11
COVER,FRAME MASTER CYLINDER
6964145C00
€ 17.50
12-1
0214206125
ref: 12-1
MODEL L/M/N/P
SCREW 6X12
0214206125
€ 2.00
12-2
0214206123
ref: 12-2
MODEL R/T
SCREW 6X12
0214206123
€ 2.00
13
0916906060
ref: 13
WASHER
0916906060
€ 2.00
14-1
6974024A00
ref: 14-1
MODEL L/M/N
TANK ASSEMBLY,RESERVOIR
6974024A00
€ 99.50
14-2
6974024A01
ref: 14-2
MODEL P/R/T
TANK ASSY,RESERVOIR
6974024A01
€ 99.50
15
5966704700
ref: 15
DIAPHRAGM
5966704700
€ 8.00
16-1
6966924A01
ref: 16-1
MODEL L/M/N
CAP
6966924A01
€ 12.00
16-2
5966905D00
ref: 16-2
MODEL P/R/T
CAP
5966905D00
€ 13.50
17
6968904A00
ref: 17
SCREW
6968904A00
€ 2.00
18-1
0151706128
ref: 18-1
MODEL L/M/N/P
BOLT
€ 2.50
18-2
0155006123
ref: 18-2
MODEL R/T
BOLT
0155006123
€ 2.50
19
6973145C00
ref: 19
HOSE,RESERVOIR TANK
€ 30.00
20-1
0940016302
ref: 20-1
MODEL L/M/N/P/R
CLAMP
0940016302
€ 4.50
20-2
0940113413
ref: 20-2
MODEL T
CLIP
€ 2.50
21-1
0940015302
ref: 21-1
MODEL L/M/N/P
CLAMP
0940015302
€ 2.50
21-2
0940014301
ref: 21-2
MODEL R
CLAMP
0940014301
€ 3.00
21-3
0940112404
ref: 21-3
MODEL T
CLIP
0940112404
€ 2.50
22
0920006037
ref: 22
PIN
0920006037
€ 5.00
23-1
0832221067
ref: 23-1
MODEL L/M/N/P
WASHER
0832221067
€ 2.00
23-2
0832201063
ref: 23-2
MODEL R/T
WASHER
0832201063
€ 2.00
24
0411120158
ref: 24
PIN
0411120158
€ 1.50
25-1
6948045C00
ref: 25-1
MODEL L/M/N
HOSE COMP,REAR BRAKE
€ 89.50
25-2
6948045C10
ref: 25-2
MODEL P/R/T
HOSE,RR BRAKE
6948045C10
€ 89.50
26-1
0936010019
ref: 26-1
MODEL L/M/N/P
BOLT,UNION
€ 6.50
26-2
0936010039
ref: 26-2
MODEL R/T
BOLT UNION
€ 6.50
27
0916110009
ref: 27
WASHER(10X15X1.5)
0916110009
€ 2.00
